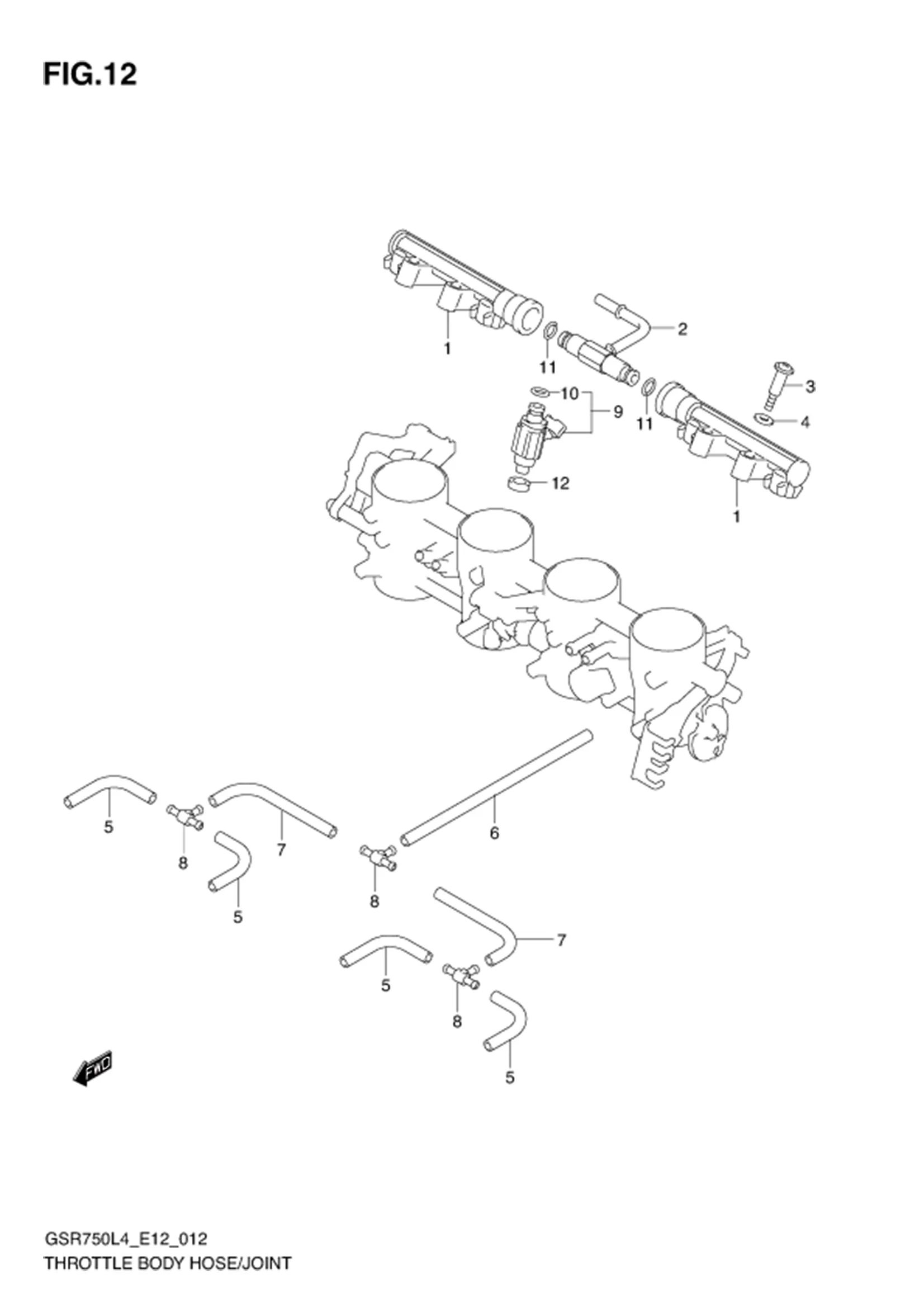

FIG.12 (1-C-2) THROTTLE BODY HOSE/JOINT

FIG.12 (1-C-2) THROTTLE BODY HOSE/JOINT
No No. Part Description Qty Price Per Pcs Remarks
13473-08J00-000 PIPE, DELIVERY 2 Rp281.500
13473-29G00-000 NIPPLE ASSY 1 Rp516.500
13601-29G00-000 SCREW 4 Rp24.500
13602-29G00-000 PACKING 4 Rp19.500
13681-39F00-060 HOSE (3.2X7.4X60) 4 Rp32.500
13683-08J00-000 HOSE 1 Rp58.000
13683-08J10-000 HOSE 2 Rp39.500
13685-02FA0-000 NIPPLE 3 Rp39.000
15710-14J00-000 INJECTOR ASSY 4 Rp1.657.000
15717-58B00-000 ?O RING 4 Rp65.000
15721-08J00-000 O RING 2 Rp53.000
15722-14J00-000 SEAL 4 Rp75.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
