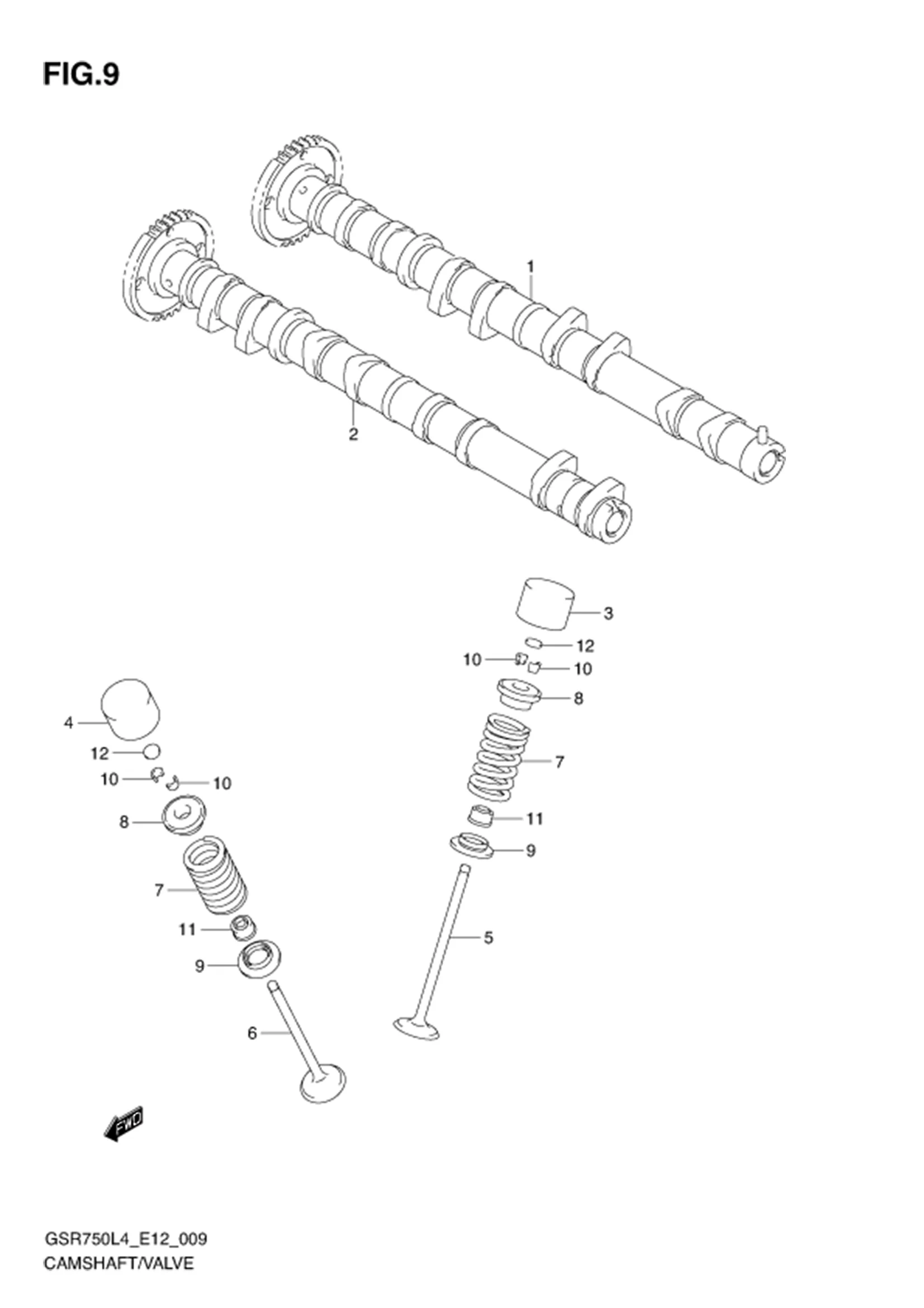

FIG.9 (1-B-12) CAMSHAFT/VALVE

FIG.9 (1-B-12) CAMSHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
12710-08J00-000 CAMSHAFT, INTAKE (NT:34) 1 Rp3.718.000
12720-08J00-000 CAMSHAFT, EXHAUST (NT:34) 1 Rp2.804.500
12891-08J00-000 TAPPET, INTAKE 8 Rp358.000
12893-08J00-000 TAPPET, EXHAUST 8 Rp358.000
12911-44G20-000 VALVE, INTAKE 8 Rp249.000
12912-44G20-000 VALVE, EXHAUST 8 Rp349.000
12921-40F00-000 SPRING, VALVE 16 Rp95.000
12931-35F10-000 RETAINER, VALVE SPRING 16 Rp98.500
12933-35F10-000 SEAT, VALVE SPRING 16 Rp50.000
DISCONTINUE
SUB: 12932-05C00-000		 COTTER, VALVE 32 -
09289-04003-000 OIL SEAL (3.2X8.6X9) 16 Rp42.500
12892-05C00-120 SHIM, TAPPET (T:1.20) 16 Rp57.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
