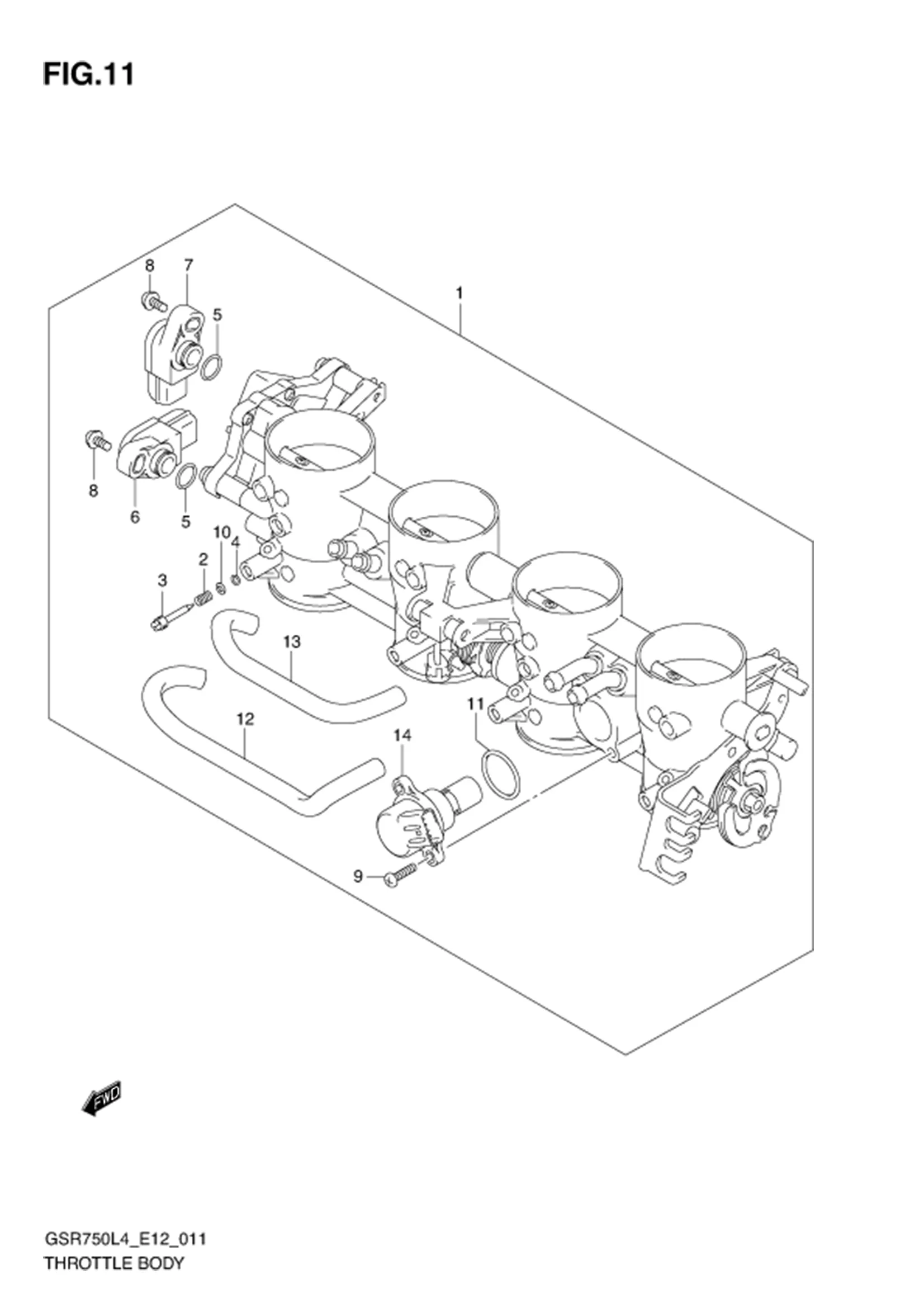

FIG.11 (1-B-15) THROTTLE BODY

FIG.11 (1-B-15) THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
13405-08J11-000 BODY ASSY, THROTTLE 1 Rp18.794.500
13268-48700-000 ?SPRING 4 Rp26.000
13269-33E00-000 ?SCREW 4 Rp72.000
13575-29G00-000 ?O RING 2 Rp18.000
13580-14J00-000 ?SENSOR 1 Rp798.500
13580-29G00-000 ?SENSOR 1 Rp822.500
13605-02F00-000 ?SCREW 2 Rp30.000
13605-37H00-000 ?SCREW 2 Rp24.500
13606-47A00-000 ?WASHER 4 Rp17.500
13679-37H00-000 ?O RING 1 Rp43.500
13698-08J00-000 ?HOSE 1 Rp219.000
13698-08J10-000 ?HOSE 1 Rp219.000
18117-14J01-000 ?MOTOR ASSY 1 Rp2.949.000
26 13295-29900-000 ?O RING 1 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
