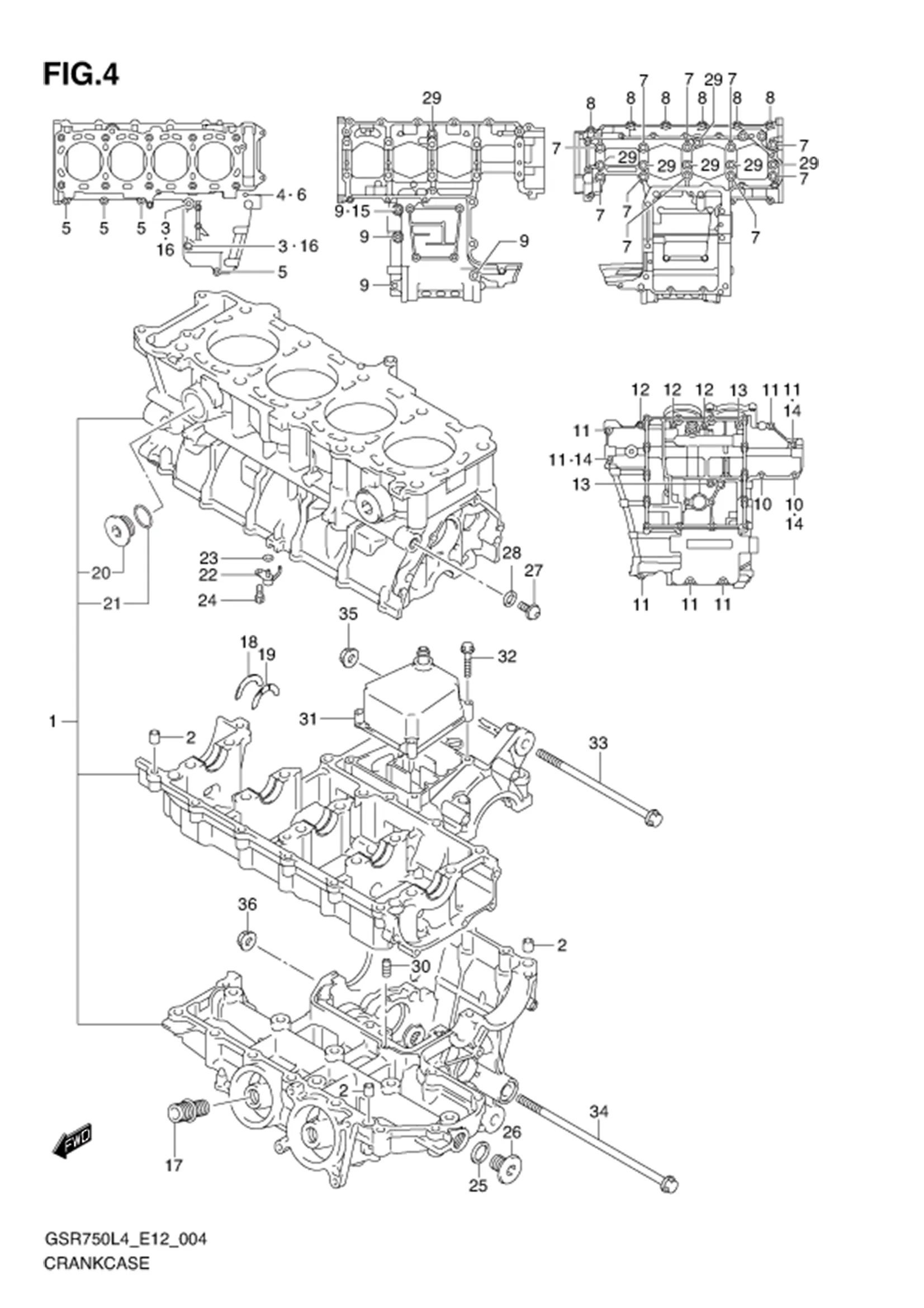

FIG.4 (1-B-5) CRANKCASE

FIG.4 (1-B-5) CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
09248-10010-000 PLUG (10X10) 1 Rp29.500
12228-17E00-0A0 ?BEARING, THRUST LH (RED) 1 Rp61.500
11318-35F00-000 ?PLUG, WATER JACKET 3 Rp90.500
DISCONTINUE
SUB: 09280-20002-000		 ?O RING (D:3.1,ID:19.4) 3 -
11390-35F00-000 JET, PISTON COOLING 4 Rp160.000
09280-04004-000 O RING (D:1.2,ID:4) 4 Rp3.500
09106-06075-000 BOLT (6X12) 4 Rp15.000
09168-16002-000 GASKET (16X22X2) 3 Rp13.000
09248-16013-000 PLUG 3 Rp31.500
12228-17E00-0D0 ?BEARING, THRUST RH (GREEN) 1 Rp61.500
09280-08012-000 O RING (D:1.9,ID:7.8) 7 Rp23.500
09493-28012-000 JET, 140 1 Rp90.500
11370-44G00-000 COVER, BREATHER 1 Rp550.500
01547-0635A-000 BOLT 4 Rp6.500
09103-10458-000 BOLT (10X175) 1 Rp122.500
09103-10137-000 BOLT (10X255) 1 Rp79.500
09159-10123-000 NUT 1 Rp152.500
09159-10115-000 NUT 1 Rp23.000
01547-0630A-000 ?BOLT 2 Rp6.500
DISCONTINUE
SUB: 11319-33E50-000		 ?PIN 6 -
09106-08139-000 ?BOLT (8X120) 2 Rp95.000
09168-06023-000 ?GASKET (5.8X13X1.2) 1 Rp13.500
01547-0640B-000
SUB: 01547-0640A-000		 ?BOLT 5 Rp7.000
01547-0680A-000 ?BOLT 1 Rp4.000
09103-09012-000 ?BOLT (9X95) 10 Rp59.000
01547-0640B-000
SUB: 01547-0640A-000		 ?BOLT 6 Rp7.000
07120-0865A-000 ?BOLT 4 Rp25.500
11300-08810-000 CRANKCASE ASSY 1 Rp31.428.500
01547-0640B-000
SUB: 01547-0640A-000		 ?BOLT 7 Rp7.000
01547-0660A-000 ?BOLT 3 Rp7.500
01547-0670A-000 ?BOLT 2 Rp7.500
09168-06023-000 ?GASKET (5.8X13X1.2) 3 Rp13.500
09168-08016-000 ?GASKET (8.2X14X1) 1 Rp25.000
09168-08016-000 ?GASKET (8.2X14X1) 2 Rp25.000
16591-06B01-000 ?UNION, OIL FILTER STAND 1 Rp50.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
