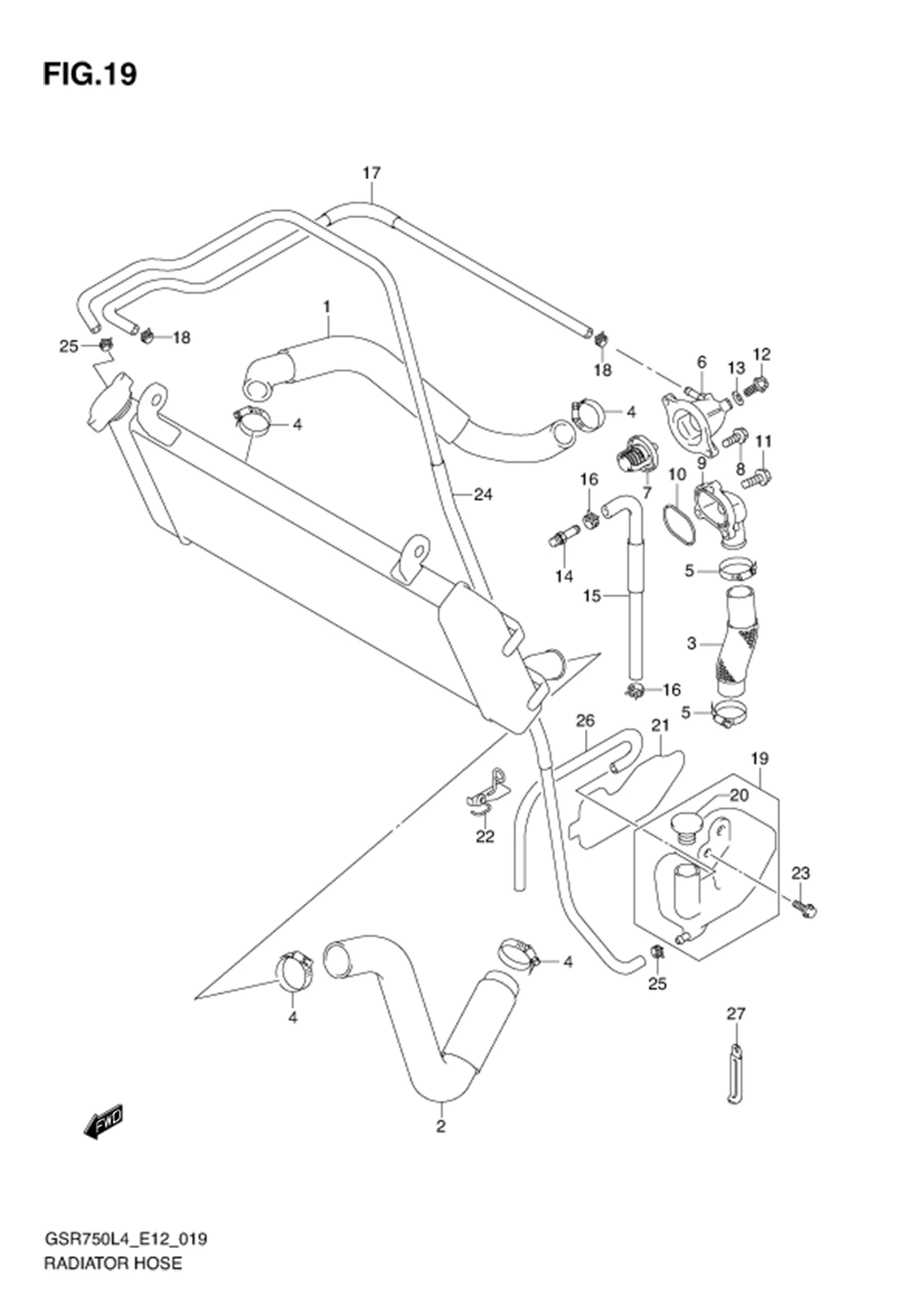

FIG.19 (1-C-9) RADIATOR HOSE

FIG.19 (1-C-9) RADIATOR HOSE
No No. Part Description Qty Price Per Pcs Remarks
17852-08J10-000 HOSE, RADIATOR OUTLET 1 Rp331.500
17981-19F00-000 HOSE, OVER FLOW 1 Rp94.500
09401-08411-000 CLIP 2 Rp12.500
17981-08J00-000 HOSE, RESERVOIR TANK INLET 1 Rp181.500
DISCONTINUE
SUB: 09111-06085-000		 BOLT (6X12) 2 -
17914-08J00-000 PLATE, RESERVOIR TANK CAP 1 Rp88.000
17912-08J00-000 SHIELD, RESERVIOR TANK HEAT 1 Rp53.500
17931-02FA0-000 ?CAP 1 Rp40.000
17910-08J00-000 TANK ASSY, RESERVOIR 1 Rp420.500
17855-08J00-000 HOSE, WATER AIR BLEED 1 Rp103.500
DISCONTINUE
SUB: 09401-12409-000		 CLAMP 2 -
17854-08J00-000 HOSE, WATER BYPASS 1 Rp167.500
09362-09011-000 UNION 1 Rp54.500
01547-0620B-000
SUB: 01547-0620A-000		 BOLT 3 Rp6.500
17863-33E00-000 O RING 1 Rp28.500
17861-08J00-000 CONNECTOR, CYLINDER WATER INLET 1 Rp273.000
01547-0620B-000
SUB: 01547-0620A-000		 BOLT 2 Rp6.500
17670-76G00-000 THERMOSTAT, WATER 1 Rp217.500
17661-35F00-000 COVER, THERMOSTAT 1 Rp256.000
09402-38512-000 CLAMP 2 Rp74.500
09402-35501-000 CLAMP 4 Rp45.000
DISCONTINUE
SUB: 17853-35F10-000		 HOSE, CYLINDER INLET 1 -
17851-08J00-000 HOSE, RADIATOR INLET 1 Rp283.500
5 DISCONTINUE
SUB: 09404-06433-000		 CLAMP (L:80) 2 -
8 09168-06026-000 GASKET 2 Rp20.000
18 09401-10409-000 CLIP, BREATHER HOSE 1 Rp7.500
21 17568-50F00-000 UNION, AIR VENT 1 Rp35.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
