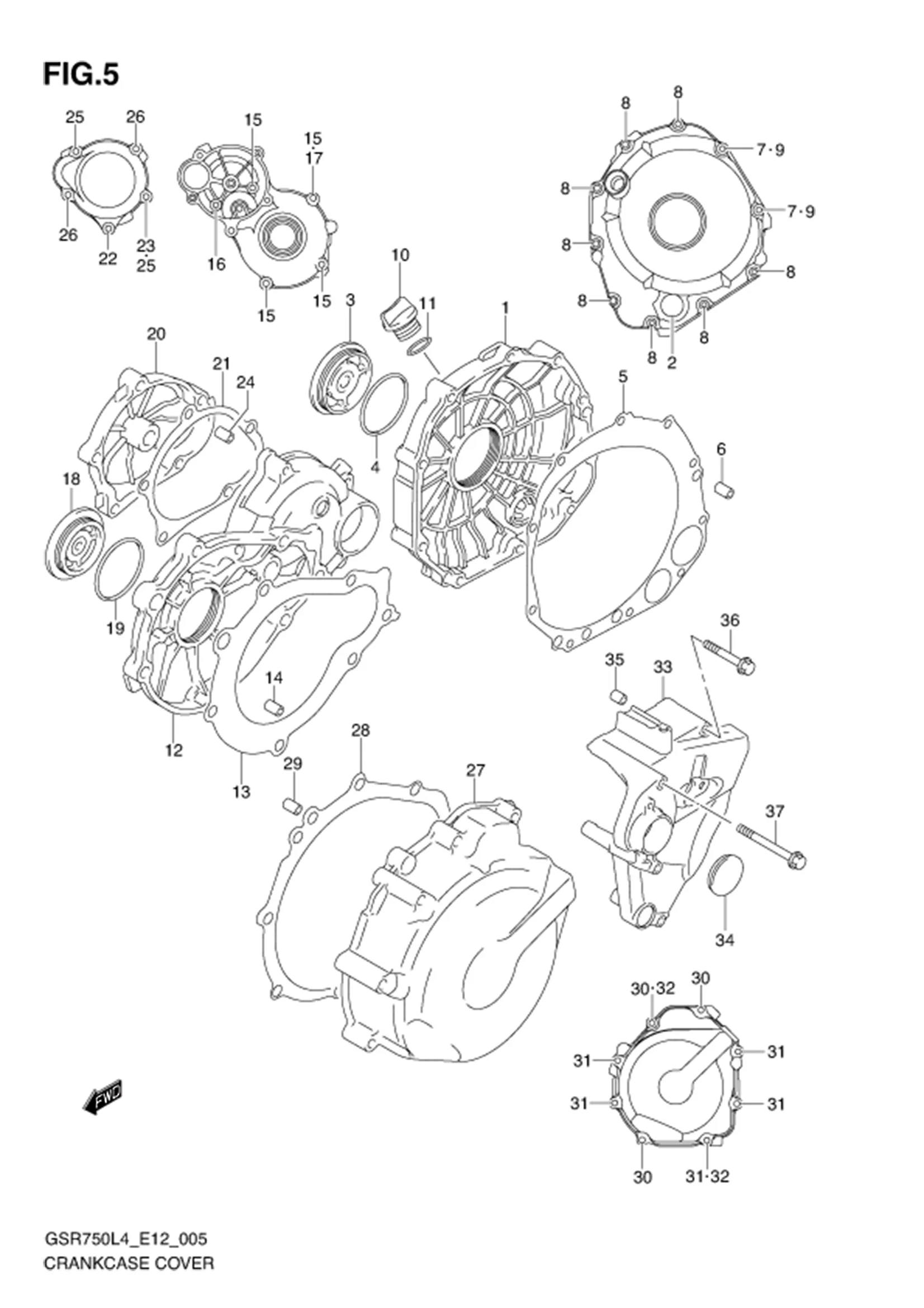

FIG.5 (1-B-7) CRANKCASE COVER

FIG.5 (1-B-7) CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
11351-18G20-000 COVER, MAGNETO 1 Rp1.684.000
09259-36021-000 PLUG 1 Rp94.500
11340-44G10-000 COVER, CLUTCH 1 Rp1.585.000
11382-33E10-000 CAP, STARTER IDLE GEAR 1 Rp514.000
11492-33E00-000 GASKET, STARTER IDLE GEAR CAP 1 Rp40.000
09103-06216-000 BOLT (6X55) 1 Rp21.000
09168-06023-000 GASKET (5.8X13X1.2) 1 Rp13.500
09103-06212-000 BOLT (6X25) 2 Rp19.000
09103-06214-000 BOLT (6X35) 2 Rp19.000
09280-33004-000 O RING (D:3.1,ID:32.7) 1 Rp12.500
11483-18G00-000 GASKET, MAGNETO COVER 1 Rp58.500
09103-06213-000 BOLT (6X30) 3 Rp19.000
09103-06224-000 BOLT (6X45) 5 Rp19.000
09168-06023-000 GASKET (5.8X13X1.2) 2 Rp13.500
11361-08J00-000 COVER, ENGINE SPROCKET 1 Rp1.097.500
01547-0665A-000 BOLT 2 Rp7.500
01547-0695A-000 BOLT 2 Rp7.500
09103-06215-000 BOLT (6X40) 2 Rp21.000
11971-33210-000 ?LENS, OIL LEVEL CHECK 1 Rp120.000
11342-41G10-000 CAP, CLUTCH RELEASE ADJUST 1 Rp166.000
31156-17E00-000 O RING 1 Rp31.500
11482-40F10-000 GASKET, CLUTCH COVER 1 Rp106.500
04211-09189-000 PIN 2 Rp10.500
09168-06023-000 GASKET (5.8X13X1.2) 2 Rp13.500
09103-06213-000 BOLT (6X30) 8 Rp19.000
09168-06023-000 GASKET (5.8X13X1.2) 1 Rp13.500
11971-25D00-000 PLUG, ENGINE OIL FILLER 1 Rp36.500
09280-17003-000 O RING (D:3.1,ID:16.8) 1 Rp2.000
11381-35F10-000 COVER, STARTER CLUTCH 1 Rp1.394.000
11491-33E02-000 GASKET, STARTER CLUTCH COVER 1 Rp47.500
09103-06212-000 BOLT (6X25) 4 Rp19.000
09103-06214-000 BOLT (6X35) 1 Rp19.000
3 04211-09149-000 PIN 2 Rp3.000
3 04211-09149-000 PIN 2 Rp3.000
3 04211-09149-000 PIN 2 Rp3.000
30 09250-30003-000 CAP (OD:36) 1 Rp22.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
