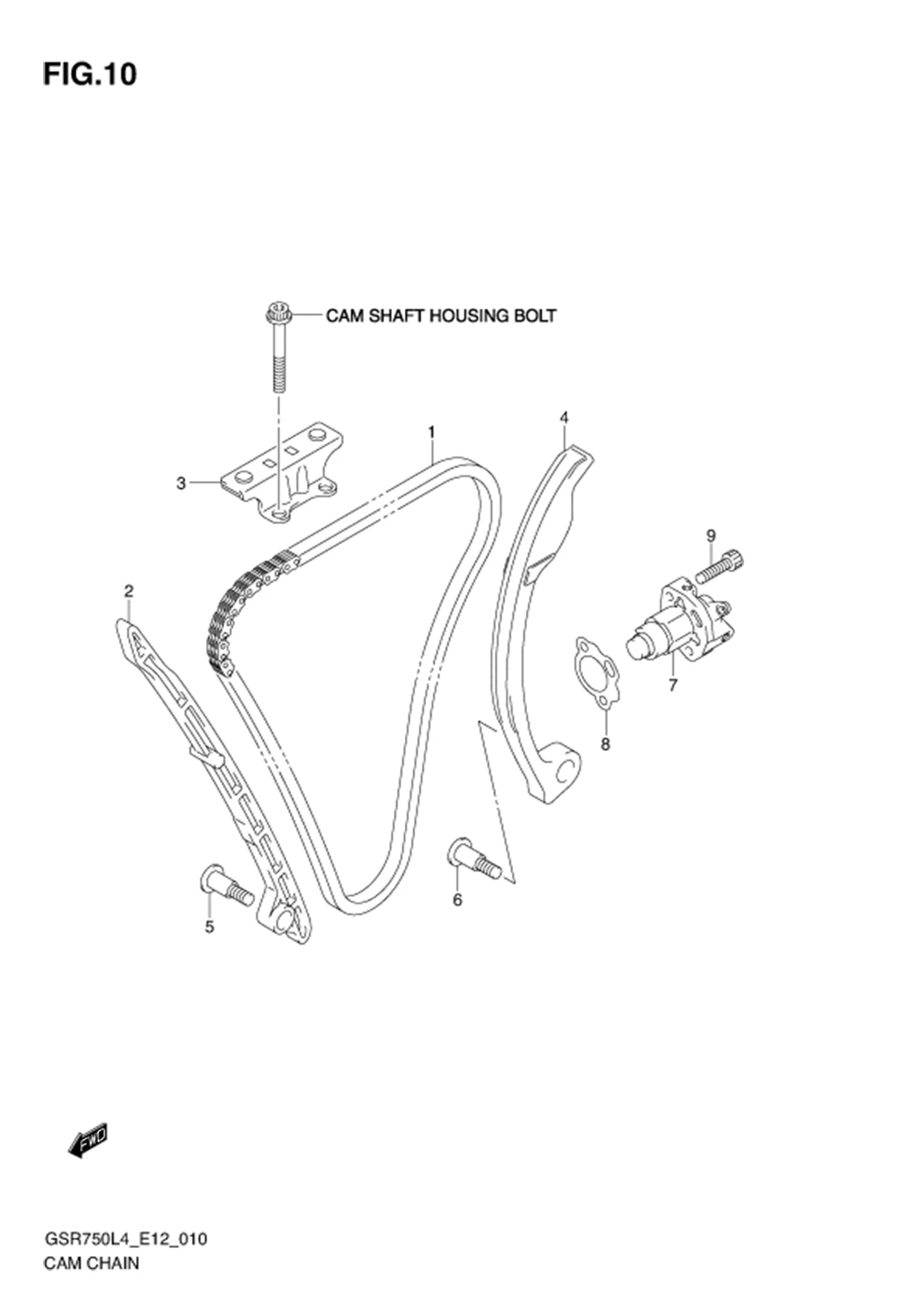

FIG.10 (1-B-14) CAM CHAIN

FIG.10 (1-B-14) CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
12760-35F01-000 CHAIN, CAM SHAFT DRIVE 1 Rp1.357.000
12771-30G00-000 GUIDE, CAM CHAIN NO.1 1 Rp206.500
12782-35F10-000 GUIDE, CAM CHAIN NO.2 1 Rp178.500
12811-08J01-000
SUB: 12811-08J00-000		 TENSIONER, CAM CHAIN 1 Rp427.000
12812-26B02-000 BOLT, TENSIONER 1 Rp50.000
12812-31G00-000 BOLT, CAN CHAIN TENSIONER 1 Rp31.500
12830-37H00-000 ADJUSTER ASSY, TENSIONER 1 Rp1.755.000
12837-02H00-000 GASKET, TENSIONER ADJUSTER 1 Rp43.000
10 07130-0625A-000 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
