GSR 750

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 (1-B-2) GASKET SETFIG.2 (1-B-3) CYLINDER HEAD COVERFIG.3 (1-B-4) CYLINDER HEADFIG.4 (1-B-5) CRANKCASEFIG.5 (1-B-7) CRANKCASE COVERFIG.6 (1-B-9) OIL PAN/OIL PUMPFIG.7 (1-B-10) CRANKSHAFTFIG.8 (1-B-11) STARTER CLUTCHFIG.9 (1-B-12) CAMSHAFT/VALVEFIG.10 (1-B-14) CAM CHAINFIG.11 (1-B-15) THROTTLE BODYFIG.12 (1-C-2) THROTTLE BODY HOSE/JOINTFIG.13 (1-C-3) AIR CLEANERFIG.14 (1-C-4) MUFFLERFIG.15 (1-C-5) OIL COOLERFIG.16 (1-C-6) FUEL PUMPFIG.17 (1-C-7) WATER PUMPFIG.18 (1-C-8) RADIATORFIG.19 (1-C-9) RADIATOR HOSEFIG.20 (1-C-10) 2ND AIRFIG.21 (1-C-11) CLUTCHFIG.22 (1-C-12) TRANSMISSIONFIG.23 (1-C-14) GEAR SHIFTING

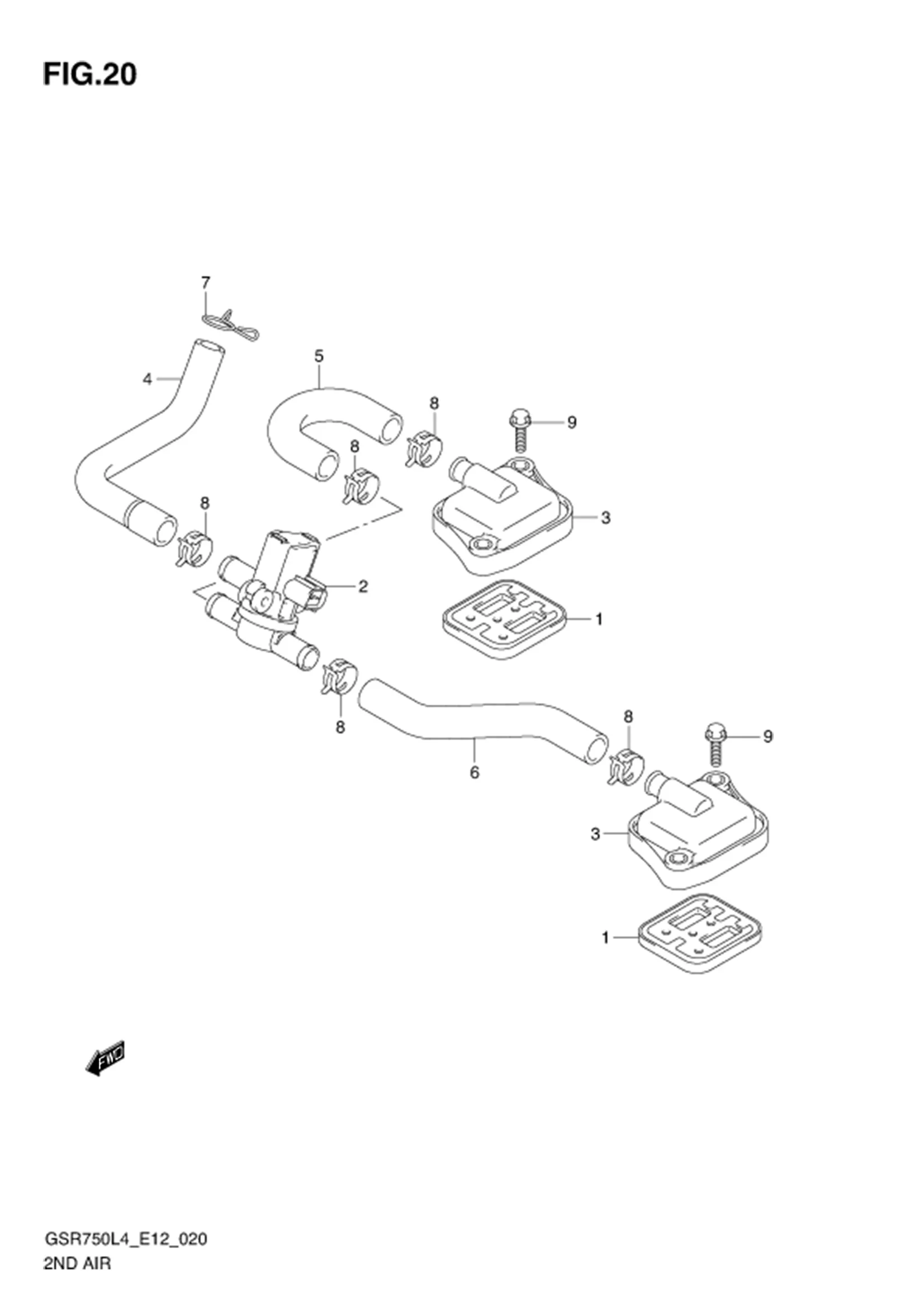

FIG.20 (1-C-10) 2ND AIR

FIG.20 (1-C-10) 2ND AIR
No No. Part Description Qty Price Per Pcs Remarks
18450-35F11-000 VALVE ASSY, 2ND AIR REED 2 Rp510.000
18510-29G31-000 VALVE ASSY, AIR CUT 1 Rp673.500
18531-35F20-000 COVER, 2ND AIR REED VALVE 2 Rp118.000
18711-08J00-000 HOSE, 2ND AIR CLEANER 1 Rp101.500
18461-08J00-000 HOSE, 2ND AIR VALVE RH 1 Rp82.500
18471-08J00-000 HOSE, 2ND AIR VALVE LH 1 Rp84.500
09401-17201-000 CLIP 1 Rp19.000
09401-17L01-000
SUB: 09401-17401-000		 CLIP 5 Rp9.500
01547-0620B-000
SUB: 01547-0620A-000		 BOLT 4 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
