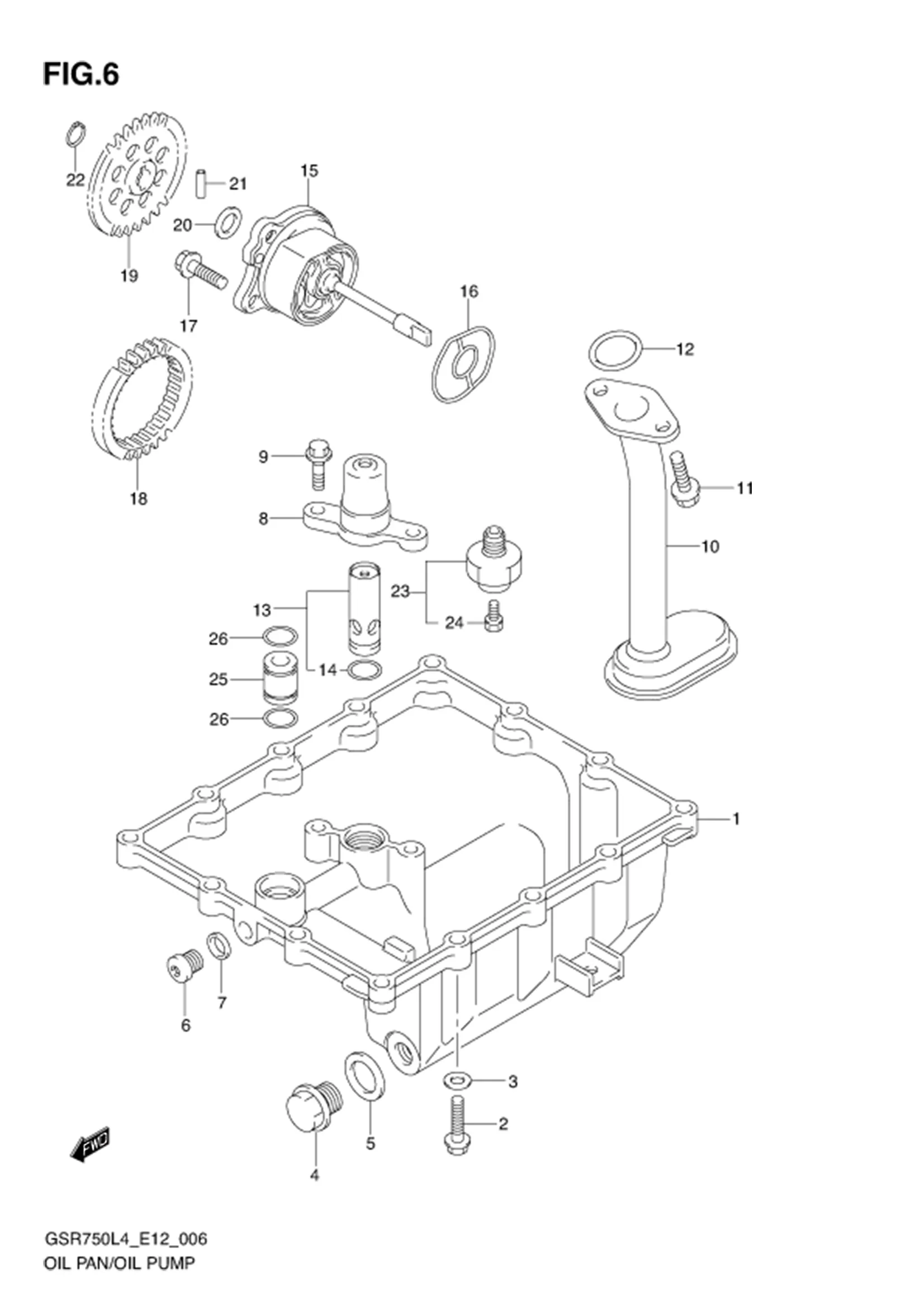

FIG.6 (1-B-9) OIL PAN/OIL PUMP

FIG.6 (1-B-9) OIL PAN/OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
16400-35F00-000 PUMP ASSY, ENGINE OIL 1 Rp1.233.000
09280-13004-000 O RING (D:1.9,ID:13) 2 Rp14.000
11281-44G00-000 PIPE, OIL GALLERY 1 Rp75.500
37822-33D00-000 ?BOLT 1 Rp26.500
37820-33D10-000 SWITCH ASSY, OIL PRESSURE 1 Rp216.000
DISCONTINUE
SUB: 08331-31109-000		 CIRCLIP 1 -
DISCONTINUE
SUB: 09261-04009-000		 PIN (4X15.8) 1 -
DISCONTINUE
SUB: 09181-10158-000		 SHIM (10X18X0.5) 1 -
16331-35F00-000 GEAR, OIL PUMP DRIVEN (NT:35) 1 Rp381.000
16321-35F01-000 GEAR, OIL PUMP DRIVE (NT:33) 1 Rp355.500
01547-0620B-000
SUB: 01547-0620A-000		 BOLT 3 Rp6.500
16491-35F00-000 O RING 1 Rp41.000
11511-08J00-000 PAN, OIL 1 Rp1.788.000
09280-13004-000 ?O RING (D:1.9,ID:13) 1 Rp14.000
DISCONTINUE
SUB: 16440-24F00-000		 VALVE ASSY, OIL RELIEF 1 -
09280-19008-000 O RING (D:2.62,ID:20.3) 1 Rp36.000
16520-44G00-000 STRAINER ASSY, ENGINE OIL 1 Rp306.500
01547-0620B-000
SUB: 01547-0620A-000		 BOLT 2 Rp6.500
11512-44G00-000 CAP, OIL RELIEF VALVE 1 Rp120.500
09248-10010-000 PLUG (10X10) 1 Rp29.500
09168-14002-000 GASKET (13.8X18.8X4.8) 1 Rp14.000
09247-14036-000 PLUG (14X20) 1 Rp40.500
09168-06023-000 GASKET (5.8X13X1.2) 2 Rp13.500
01547-0625A-000 BOLT 14 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
