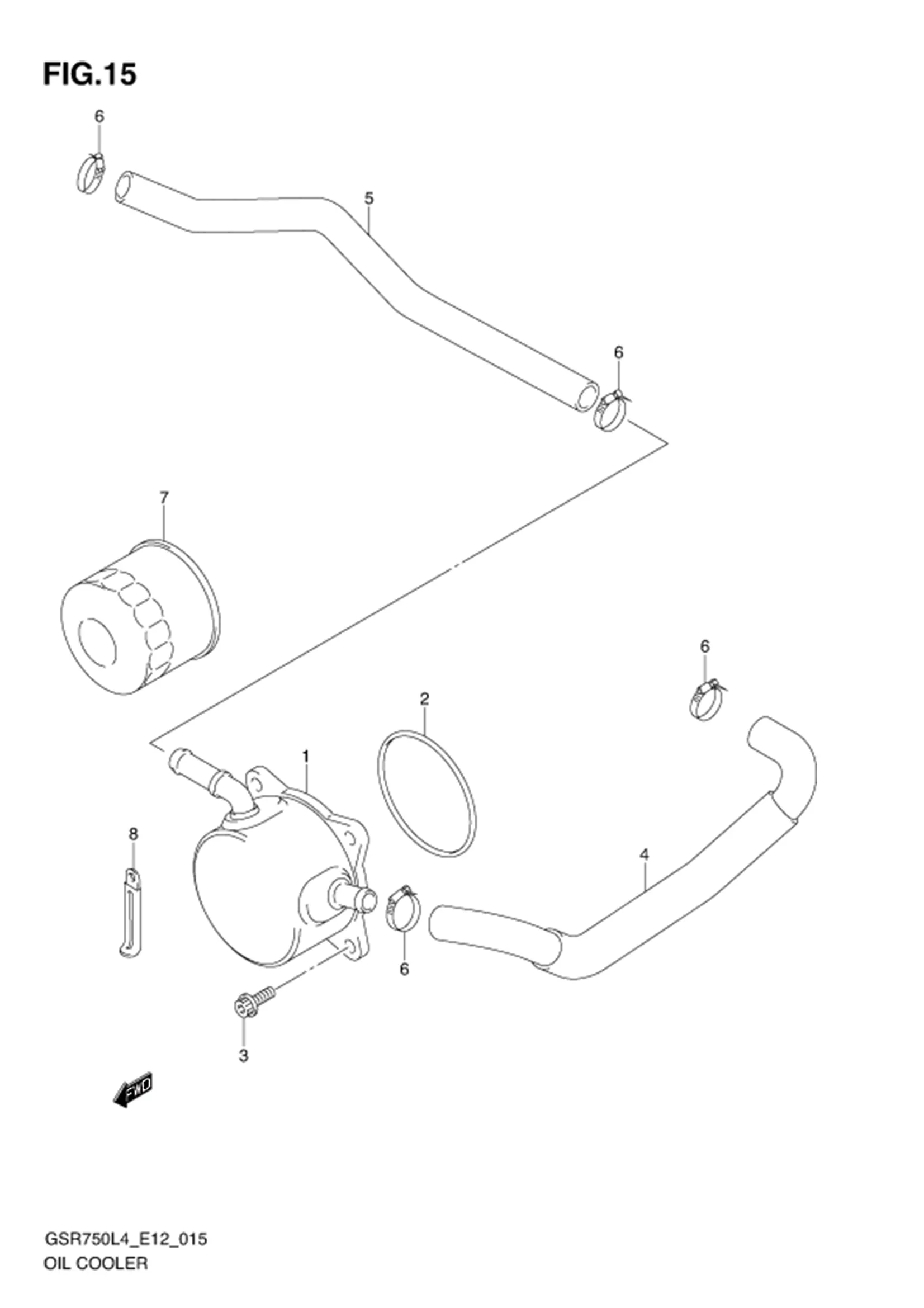

FIG.15 (1-C-5) OIL COOLER

FIG.15 (1-C-5) OIL COOLER
No No. Part Description Qty Price Per Pcs Remarks
16600-29G00-000 COOLER ASSY, OIL 1 Rp4.312.500
09280-64003-000 O RING (D:3.1,ID:63.9) 1 Rp33.000
09106-06099-000 BOLT (6X16) 4 Rp21.000
16461-08J00-000 HOSE, OIL COOLER WATER INLET 1 Rp189.500
16471-08J00-000 HOSE, OIL COOLER WATER OUTLET 1 Rp141.500
09402-22512-000 CLAMP 4 Rp45.000
16510-07J00-000 FILTER ASSY, ENGINE OIL 1 Rp129.500
5 DISCONTINUE
SUB: 09404-06433-000		 CLAMP (L:80) 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
