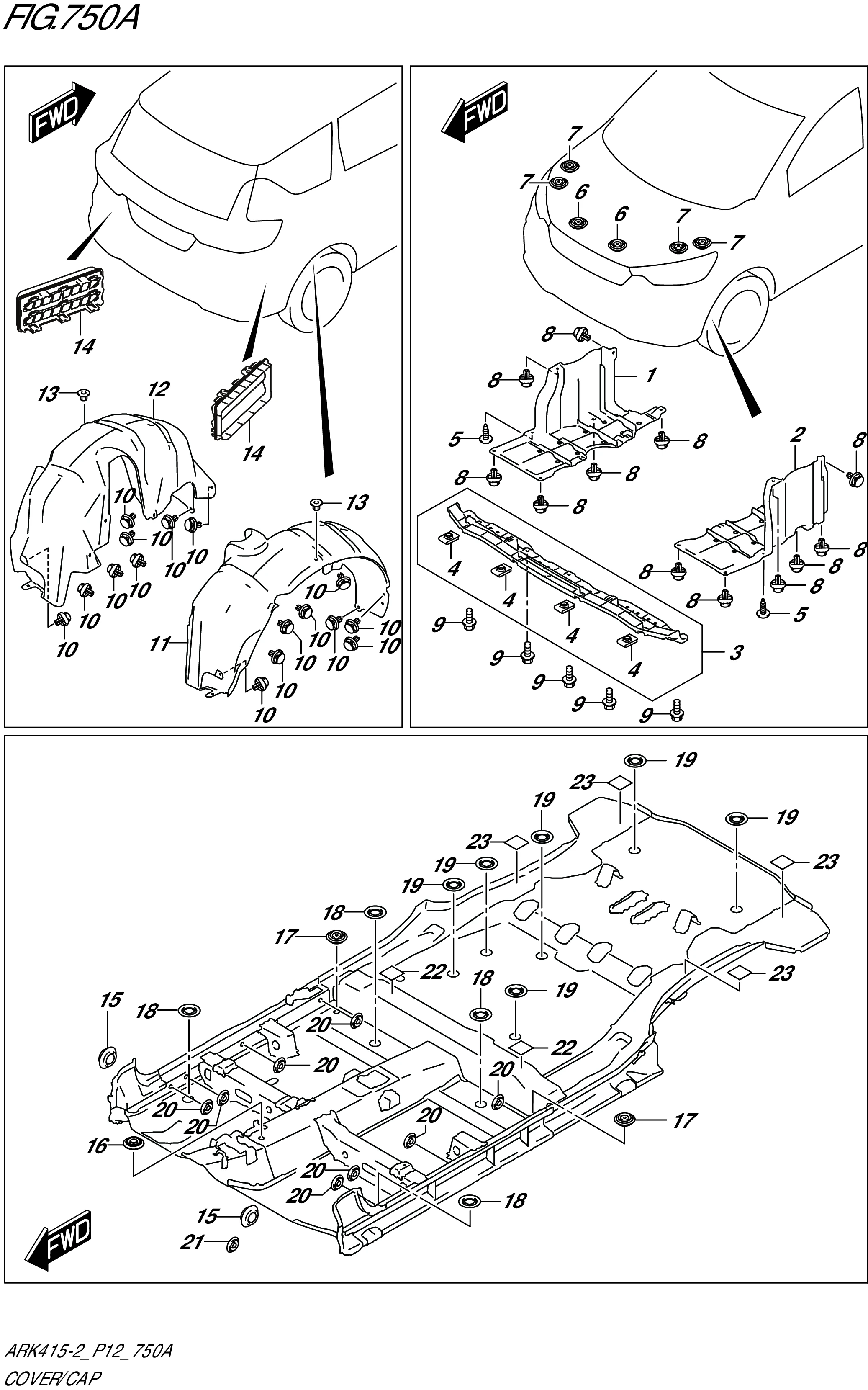

FIG. 750A - COVER/CAP

No	No. Part	Description	Qty	Price Per Pcs
1	72421-73R10-000	COVER,ENGINE UNDER SIDE,R	1	Rp61.500
2	72422-73R10-000	COVER,ENGINE UNDER SIDE,L	1	Rp61.500
3	72460-73R00-000	ABSORBER,FR BUMPER LOWER	1	Rp153.500
4	09148-05047-000 SUB: 09148B05047N000	.NUT (M5)	4	Rp3.500
5	09136-05068-000	SCREW,5X20	2	Rp15.000
6	09250-25007-000	CAP (OD:25)	2	Rp10.500
7	09250-25007-000	CAP (OD:25)	4	Rp10.500
8	09409-07340-000	CLIP (6.8X11.5)	12	Rp17.500
9	02162-0616A-000	SCREW (6X16)	5	Rp3.000
10	09409-07340-000	CLIP (6.8X11.5)	16	Rp17.500
11	72811-73R00-000	LINING,REAR FENDER,R	1	Rp185.000
12	72821-73R00-000	LINING,REAR FENDER,L	1	Rp185.000
13	09148-05059-000	CLIP	2	Rp22.000
14	77330-73R00-000	OUTLET,VENTILATOR	2	Rp32.000
15	09250-15L02-000 SUB: 09250B15L02N000	CAP (OD:23.5)	2	Rp5.500
16	09250-15L03-000 SUB: 09250B15L03N000	CAP	1	Rp5.500
17	09250-25007-000	CAP (OD:25)	2	Rp10.500
18	75431-64L00-000	CAP,FL DRAIN	4	Rp43.000
19	75431-64L00-000	CAP,FL DRAIN	6	Rp43.000
20	09250M20031-000 SUB: 09250-20015-000	CAP (OD:28.5)	8	Rp4.500
21	09250M20031-000 SUB: 09250-20015-000	CAP (OD:28.5)	1	Rp4.500
22	77151-82000-000 SUB: 77151B82000N000	FILM	2	Rp7.000
23	77151-82000-000 SUB: 77151B82000N000	FILM	4	Rp7.000
