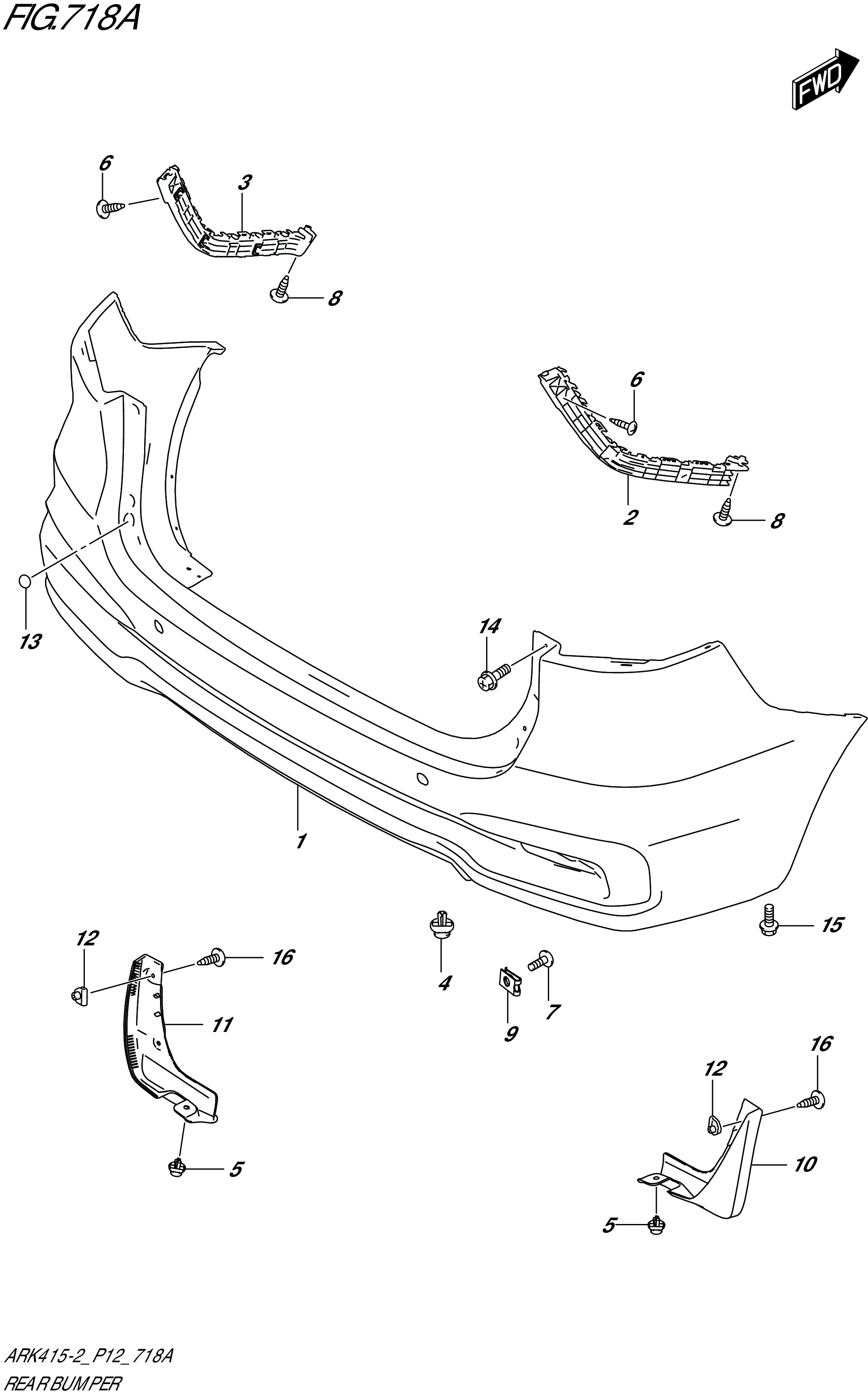

FIG. 718A - REAR BUMPER

FIG. 718A - REAR BUMPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	71811-73R00-799	BUMPER,REAR (PRIMARY)	1	Rp1.783.000
1-1	71811-73R10-799	BUMPER,REAR (PRIMARY)	1	Rp1.540.500
2	71821-73R00-000	HOLDER,RR BUMPER SIDE,R	1	Rp32.500
3	71822-73R00-000	HOLDER,RR BUMPER SIDE,L	1	Rp32.500
4	09409-08010-000	CLIP	2	Rp5.500
5	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500
6	03541-0512A-000 SUB: 03541B0512AN000	SCREW	6	Rp3.500
7	09136-05068-000	SCREW (5X20)	1	Rp15.000
8	09136-05068-000	SCREW (5X20)	2	Rp15.000
9	09148-05047-000 SUB: 09148B05047N000	NUT (M5)	1	Rp3.500
10	72231-73R00-5PK	FLAP,MUD REAR,R (BLACK)	1	Rp369.500
11	72241-73R00-5PK	FLAP,MUD REAR,L (BLACK)	1	Rp369.500
12	09148-05028-000	NUT (M5)	4	Rp13.000
13	77191-64L00-000	FILM, REAR DOOR SWITCH	2	Rp30.500
14	01551-0616C-000	BOLT (6X16)	4	Rp14.500
15	01551-0616C-000	BOLT (6X16)	4	Rp14.500
16	09132-05053-000	SCREW (5X16)	4	Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
