ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 490B - PEDAL/PEDAL BRACKET (4AT)FIG. 500A - BRAKE MASTER CYLINDER (5MT)FIG. 500C - BRAKE MASTER CYLINDER (4AT:W_ESP)FIG. 510A - ANTI LOCK BRAKE SYSTEM (N_ESP)FIG. 510B - ANTI LOCK BRAKE SYSTEM (W_ESP)FIG. 520A - FRONT WHEEL BRAKE FIG. 530A - REAR WHEEL BRAKE FIG. 542A - PARKING BRAKE FIG. 570A - FRONT HOOD PANEL FIG. 572A - TIRE CARRIER FIG. 580A - FRONT FENDER PANEL (GA)FIG. 580B - FRONT FENDER PANEL (GL)FIG. 580C - FRONT FENDER PANEL (GX)FIG. 590A - FRONT BODY PANEL FIG. 600A - FLOOR PANEL FIG. 640A - SIDE BODY PANEL FIG. 660A - ROOF PANEL (GA)FIG. 717A - FRONT BUMPER FIG. 718A - REAR BUMPER FIG. 721A - INSTRUMENT PANEL UPPER FIG. 722A - INSTRUMENT PANEL LOWER (GA,GL)FIG. 722B - INSTRUMENT PANEL LOWER (GX)FIG. 730A - VENTILATOR (GA,GL)FIG. 730B - VENTILATOR (GX)FIG. 732A - HEATER UNIT (GA,GL)FIG. 732B - HEATER UNIT (GX)FIG. 735A - HEATER BLOWER (GA)(SEE NOTE 1)FIG. 735B - HEATER BLOWER (GL)(SEE NOTE 1)FIG. 735C - HEATER BLOWER (GX)(SEE NOTE 1)FIG. 736A - HEATER DOOR (GA,GL)(SEE NOTE 1)FIG. 736B - HEATER DOOR (GX)(SEE NOTE 1)FIG. 737A - EVAPORATOR UNIT (GA,GL)(SEE NOTE 1)FIG. 737B - EVAPORATOR UNIT (GX)(SEE NOTE 1)FIG. 740A - CONSOLE BOX (GA)FIG. 740B - CONSOLE BOX (GL)741A - FLOOR CARPET (GA)FIG. 741B - FLOOR CARPET (GL)FIG. 741C - FLOOR CARPET (GX)FIG. 745A - INTERIOR TRIM FIG. 755A - FUEL LID OPENER FIG. 757A - ROOF SIDE PAD FIG. 760A - ROOF LINING FIG. 772A - MOLDING FIG. 780A - EMBLEM FIG. 790A - WINDSHIELD FIG. 660B - ROOF PANEL (GL,GX)FIG. 490A - PEDAL/PEDAL BRACKET (5MT)FIG. 500B - BRAKE MASTER CYLINDER (4AT:N_ESP)FIG. 740C - CONSOLE BOX (GX)FIG. 750A - COVER/CAP

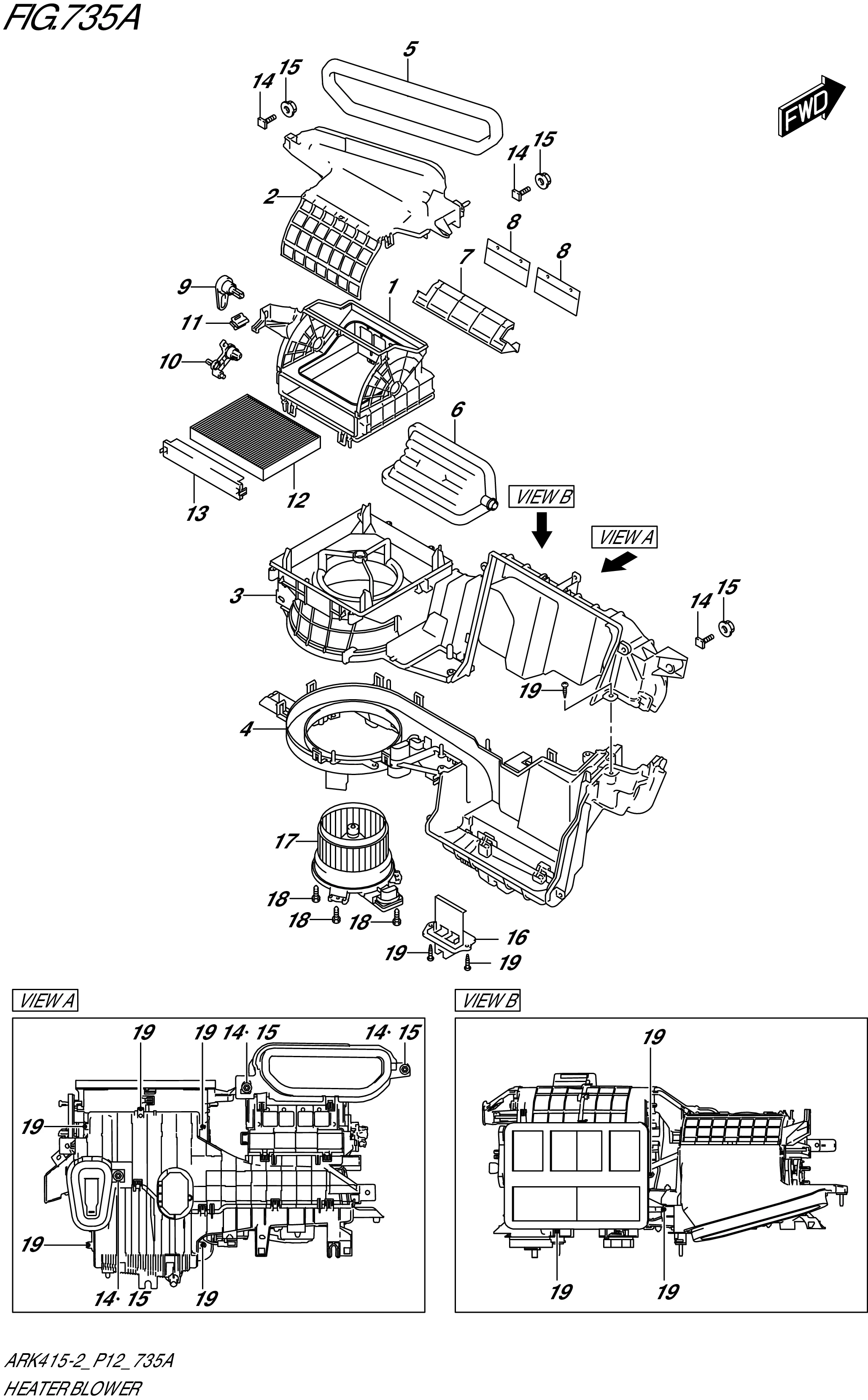

FIG. 735A - HEATER BLOWER (GA)(SEE NOTE 1)

FIG. 735A - HEATER BLOWER (GA)(SEE NOTE 1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	74113-73RB0-000	CASE,BLOWER	1	Rp256.000
2	74213-73RB0-000	CASE,BLOWER	1	Rp275.500
3	74211-73RB0-000	CASE,BLOWER	1	Rp275.500
4	74212-73RG0-000	CASE,BLOWER	1	Rp280.500
5	74119-73R00-000	PACKING	1	Rp23.500
6	74173-73R00-000	DOOR S/ASSY	1	Rp108.500
7	74214-73RB0-000	PLATE	1	Rp18.500
8	74215-68P10-000	PACKING	2	Rp23.000
9	74281-73RB0-000	LEVER	1	Rp16.000
10	74282-73RB0-000	LEVER	1	Rp16.000
11	74151-71B00-000	CLAMP	1	Rp53.000
12	95850-73R00-000	FILTER,AIR	1	Rp131.500
13	95861-73R00-000	HOLDER,FILTER	1	Rp26.500
14	74115-85D10-000	BOLT	3	Rp15.000
15	74119-78F10-000 SUB: 74119B78F10N000	BUSH	3	Rp8.000
16	74140M79M00-000	RESISTOR BLOWER	1	Rp213.000
17	74150-73RG0-000	MOTOR ASSY,W/FAN	1	Rp969.000
18	94135-82000-000	SCREW	3	Rp53.500
19	03112-0416A-000 SUB: 03112B0416AN000	SCREW	11	Rp23.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
