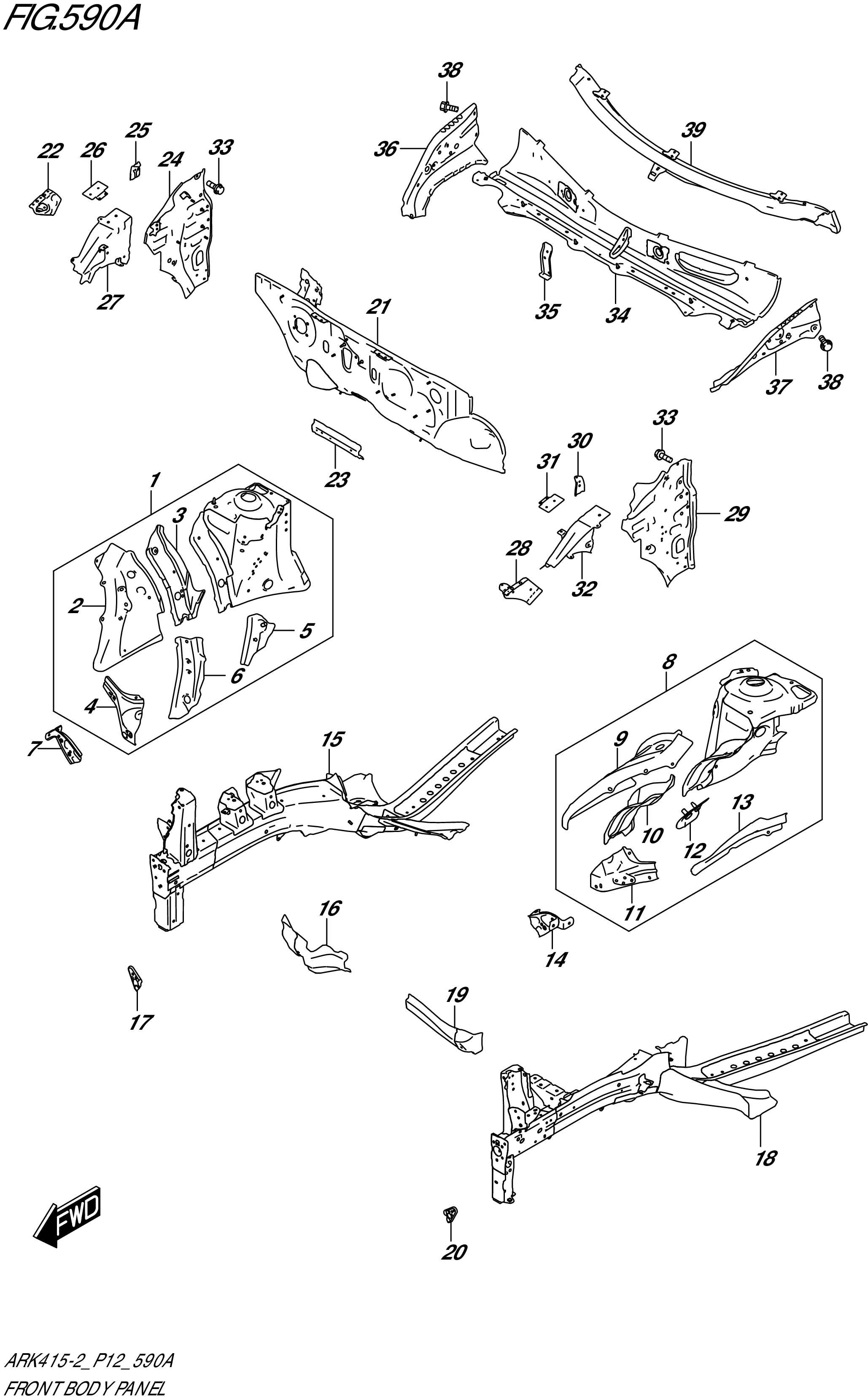

FIG. 590A - FRONT BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	58310-73R00-000	PANEL,FENDER APRON,R	1	Rp717.500
2	58313-73R00-000	.EXTENSION,APRON FR,R	1	Rp99.000
3	58314-68P00-000	.MEMBER,FENDER APRON,R	1	Rp56.500
4	58315-55R00-000	.EXTENSION,FR FNDR LWR BRKT,R	1	Rp45.500
5	58318-73R00-000	.PATCH,APRON FR EXTENSION,R	1	Rp27.000
6	58321-73R00-000	.MEMBER,APRON FR EXTENSION,R	1	Rp69.000
7	58320-73R00-000	BRACKET,FR FENDER LOWER,R	1	Rp40.500
8	58410-73R01-000 SUB: 58410-73R00-000	PANEL,FENDER APRON,L	1	Rp717.500
9	58413-73R00-000	.EXTENSION,APRON FR,L	1	Rp111.000
10	58414-68P00-000	.MEMBER,FENDER APRON,L	1	Rp58.500
11	58415-55R00-000	.EXTENSION,FR FNDR LWR BRKT,L	1	Rp45.500
12	58418-73R00-000	.PATCH,APRON FR EXTENSION,L	1	Rp25.000
13	58421-73R00-000	.MEMBER,APRON FR EXTENSION,L	1	Rp69.000
14	58420-73R00-000	BRACKET,FR FENDER LOWER,L	1	Rp40.500
15	58600-73R00-000	MEMBER,FR SIDE,R	1	Rp2.408.500
16	58650M68P00-000	CROSSMEMBER,DASH UPR,R	1	Rp65.000
17	58671-55R00-000	BRACKET,HEAD LAMP,R	1	Rp30.000
18	58700-73R00-000	MEMBER,FR SIDE,L	1	Rp2.408.500
19	58750M68P00-000	CROSSMEMBER,DASH UPR,L	1	Rp65.000
20	58771-55R00-000	BRACKET,HEAD LAMP,L	1	Rp29.500
21-1	59100-73R01-000 SUB: 59100-73R00-000	PANEL,DASH	1	Rp1.919.000
21-2	59100-73R21-000 SUB: 59100-73R20-000	PANEL,DASH	1	Rp1.893.000
22	59210-73R10-000	BRACKET,FR FENDER FR,R	1	Rp58.000
23	59221-68P10-000	CROSSMEMBER,DASH UPR CTR	1	Rp97.500
24	59230-73R00-000	PANEL,DASH SIDE,R	1	Rp315.000
25	59234-73R00-000	BRACKET,FR FENDER RR,R	1	Rp10.000
26	59235-73R00-000	PATCH,FR HOOD HINGE,R	1	Rp14.500
27	59240-73R00-000	PANEL,DASH SIDE FR,R	1	Rp154.000
28	59260-73R10-000	BRACKET,FR FENDER FR,L	1	Rp58.000
29	59280-73R00-000	PANEL,DASH SIDE,L	1	Rp315.000
30	59284-73R00-000	BRACKET,FR FENDER RR,L	1	Rp10.000
31	59285-73R00-000	PATCH,FR HOOD HINGE,L	1	Rp14.500
32	59290-73R00-000	PANEL,DASH SIDE FR,L	1	Rp214.000
33	DISCONTINUE SUB: 01550B0612AN000	BOLT (6X12)	2	-
34	59300-73R00-000	PANEL,COWL UPPER	1	Rp570.500
35	59313-73R00-000	BRACE,COWL UPPER	1	Rp33.000
36	59411-73R00-000	MEMBER,COWL SIDE OUTER,R	1	Rp301.500
37	59461-73R00-000	MEMBER,COWL SIDE OUTER,L	1	Rp301.500
38	01550-0820A-000 SUB: 01550B0820AN000	BOLT (8X20)	6	Rp5.500
39	59710-73R00-000	PANEL,COWL TOP	1	Rp436.000
