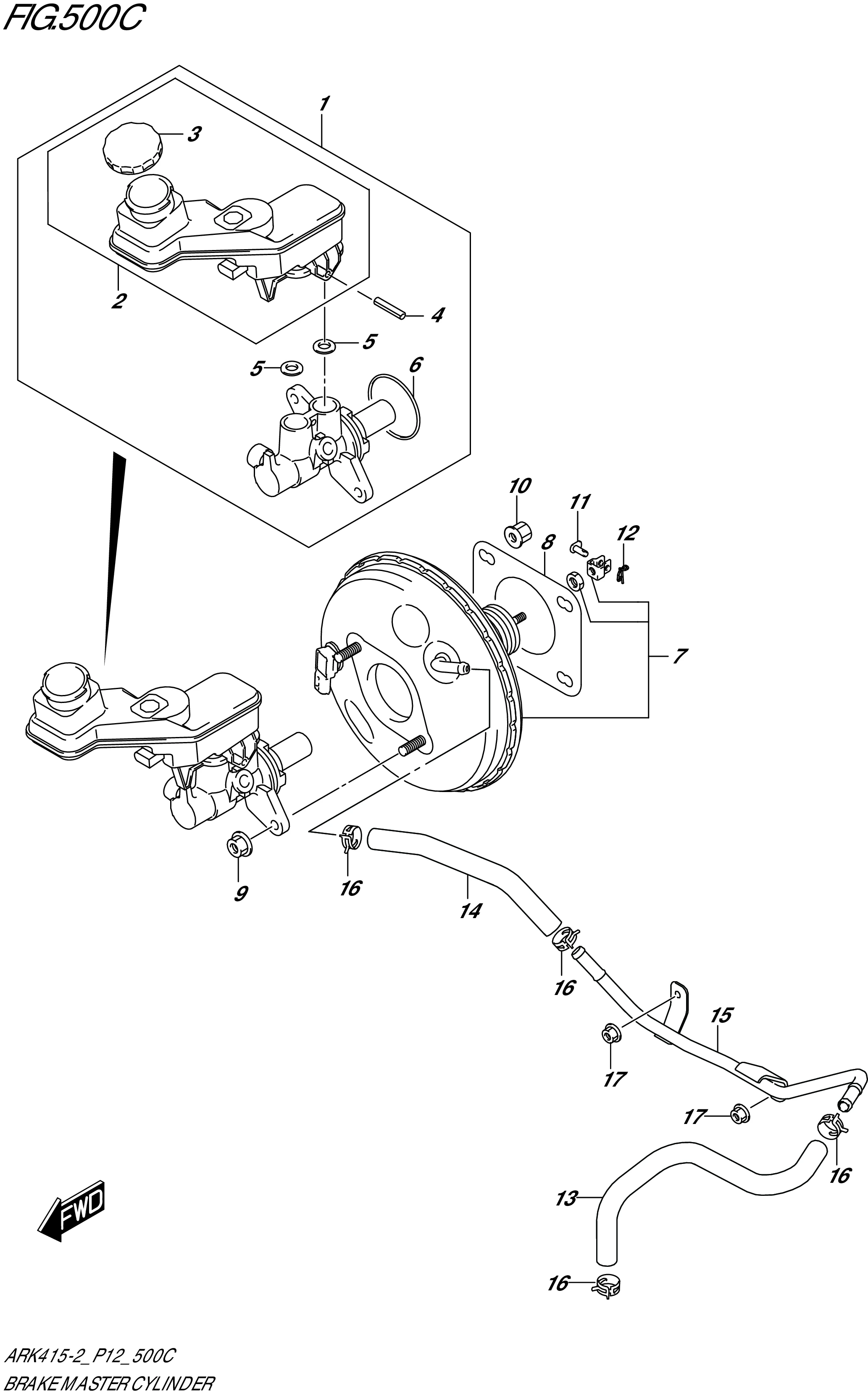

FIG. 500C - BRAKE MASTER CYLINDER (4AT:W_ESP)

FIG. 500C - BRAKE MASTER CYLINDER (4AT:W_ESP)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	51100-73RS0-000	CYLINDER ASSY,BRAKE MASTER	1	Rp1.808.500
2	51200-73RM0-000	.RESERVOIR ASSY,BRAKE MASTER	1	Rp262.500
3	51220-60KA0-000 SUB: 51220B60KA0N000	..CAP,RESERVOIR	1	Rp75.000
4	09205-05003-000	.PIN,SPRING (5X45)	1	Rp13.500
5	51232-67L20-000 SUB: 51232B67L20N000	.GROMMET,RSVR CONNECTOR	2	Rp13.000
6	51185-85K00-000	.O-RING,MASTER CYLINDER	1	Rp12.500
7	51300-73RS0-000	BOOSTER ASSY,BRAKE MASTER	1	Rp1.540.500
8	51132-82003-000	PACKING,BRAKE MASTER CYLINDER	1	Rp33.000
9	09159-08075-000	NUT (M8)	2	Rp14.000
10	09159-08150-000	NUT (M8X1.25)	4	Rp16.500
11	09200M08052-000 SUB: 09200-08069-000	PIN (D:8,L1:23,L2:17.5)	1	Rp13.500
12	09385-08007-000	PIN,SNAP (L:21)	1	Rp16.500
13	51020-73R00-000	HOSE,VACUUM PIPE TO INTK	1	Rp58.500
14	51811-73R00-000	HOSE,VACUUM BSTR TO PIPE	1	Rp35.000
15	51870-73R00-000	PIPE,BRAKE VACUUM	1	Rp99.000
16	09401-15420-000	CLIP,DRAIN HOSE	4	Rp17.000
17	08316-1006A-000 SUB: 08316B1006AN000	NUT (6X12)	2	Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
