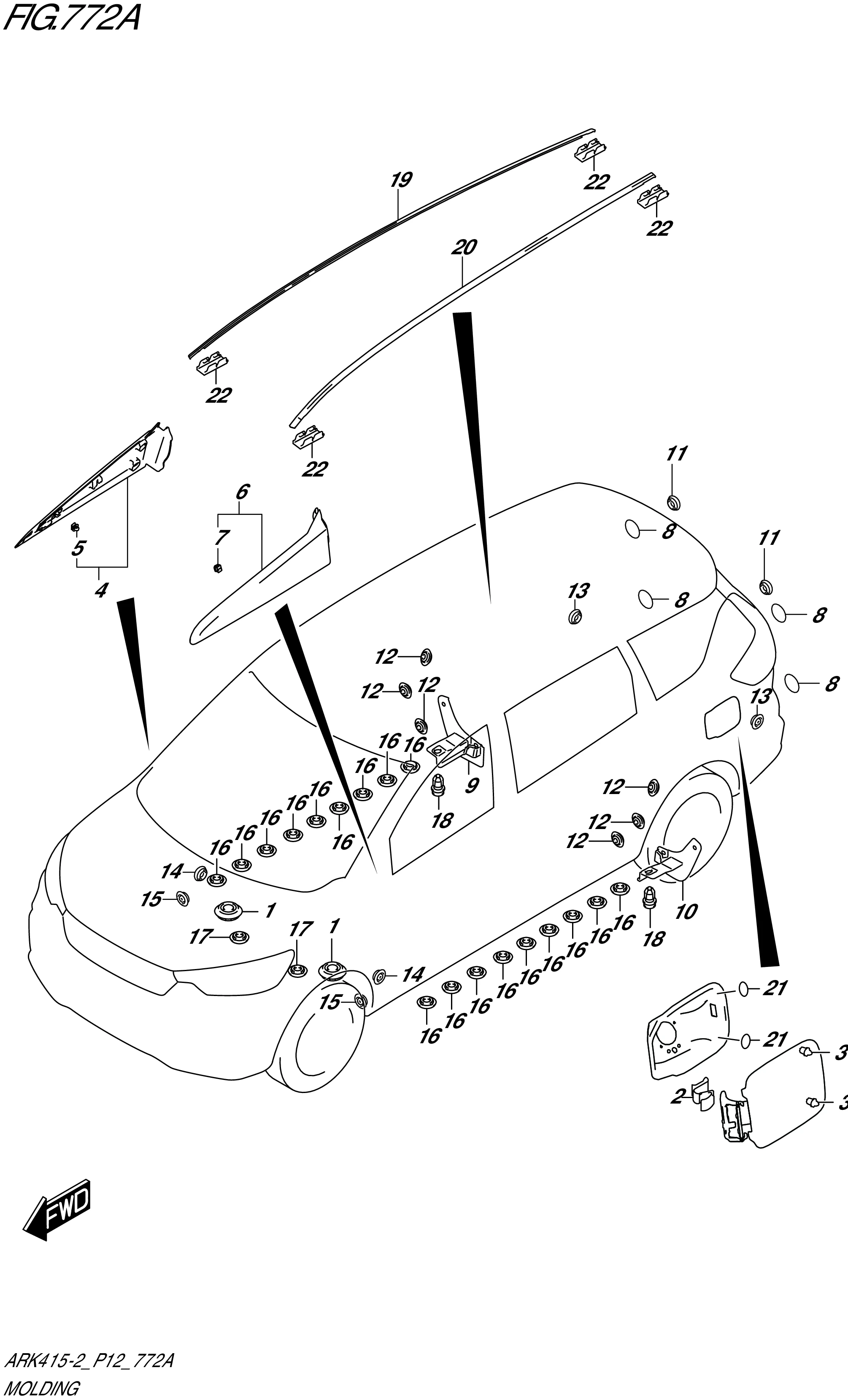

FIG. 772A - MOLDING

No	No. Part	Description	Qty	Price Per Pcs
1	72397-58J00-000	CAP,DASH LOWER	2	Rp39.000
2	77111-72M00-000	SPRING,FUEL FILLER DOOR	1	Rp30.000
3	77116-57L00-000	CUSHION,FUEL FILLER DOOR	2	Rp34.500
4	77180-73R01-5PK SUB: 77180-73R00-5PK	GARNISH,FR FENDER,R (BLACK)	1	Rp34.500
5	09409-06342-000 SUB: 09409-06332-000	.CLIP	4	Rp19.500
6	77190-73R01-5PK SUB: 77190-73R00-5PK	GARNISH,FR FENDER,L (BLACK)	1	Rp34.500
7	09409-06342-000 SUB: 09409-06332-000	.CLIP	4	Rp19.500
8	77191-64L00-000	FILM, REAR DOOR SWITCH	4	Rp30.500
9	77232-73R00-000	STRAKE,REAR,R	1	Rp48.000
10	77242-73R00-000	STRAKE,REAR,L	1	Rp48.000
11	09250-10L02-000	CAP (OD:16.2)	2	Rp5.500
12	09250-15L02-000 SUB: 09250B15L02N000	CAP (OD:23.5)	6	Rp5.500
13	09250-15L02-000 SUB: 09250B15L02N000	CAP (OD:23.5)	2	Rp5.500
14	09250-15L02-000 SUB: 09250B15L02N000	CAP (OD:23.5)	2	Rp5.500
15	09250-15L02-000 SUB: 09250B15L02N000	CAP	4	Rp5.500
16	09250-15L03-000 SUB: 09250B15L03N000	CAP	18	Rp5.500
17	09250-30002-000 SUB: 09250-30011-000	CAP (OD:38.5)	2	Rp5.500
18	09409-15302-000	CLIP	2	Rp15.000
19	78131-73R00-000	MOLDING,ROOF,R	1	Rp239.500
20	78141-73R00-000	MOLDING,ROOF,L	1	Rp239.500
21	77117-79M00-000	FILM,FUEL LID CUSHION	2	Rp6.500
22	78170-68K10-000	CLIP,ROOF MOLDING BODY	4	Rp8.500
