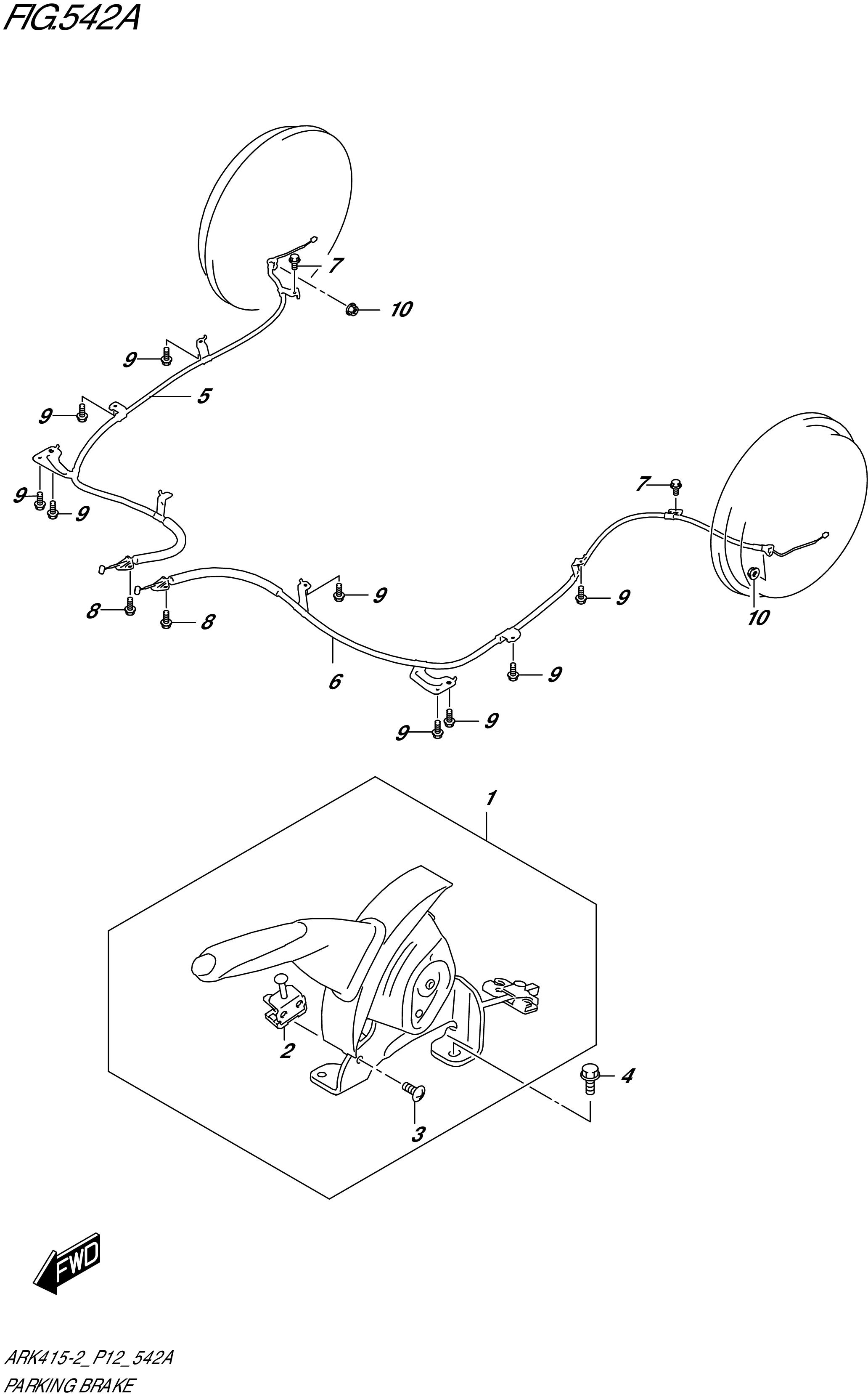

FIG. 542A - PARKING BRAKE

FIG. 542A - PARKING BRAKE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	54100-73R10-R8R	LEVER ASSY,PARKING BRAKE (BROW	1	Rp291.000
1-2	54100-73R00-KL9	LEVER ASSY,PARKING BRAKE (CHRO	1	Rp297.500
1-3	54100-73R00-C48	LEVER ASSY,PARKING BRAKE (CHRO	1	Rp346.000
2	37940-76G00-000 SUB: 37940B76G00N000	.SWITCH ASSY,PARKING BRAKE	1	Rp75.500
3	54115-76G00-000 SUB: 54115B76G00N000	.SCREW	1	Rp16.000
4	01551-0820A-000	BOLT	2	Rp17.500
5	54401-73R00-000	CABLE,PARKING BRAKE,R	1	Rp241.500
6	54402-73R00-000	CABLE,PARKING BRAKE,L	1	Rp232.500
7	DISCONTINUE SUB: 01550B0612AN000	BOLT (6X12)	2	-
8	02162-0616A-000	SCREW (6X16)	2	Rp3.000
9	02162-0616A-000	SCREW (6X16)	10	Rp3.000
10	08316-1006A-000 SUB: 08316B1006AN000	NUT (6X12)	2	Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
