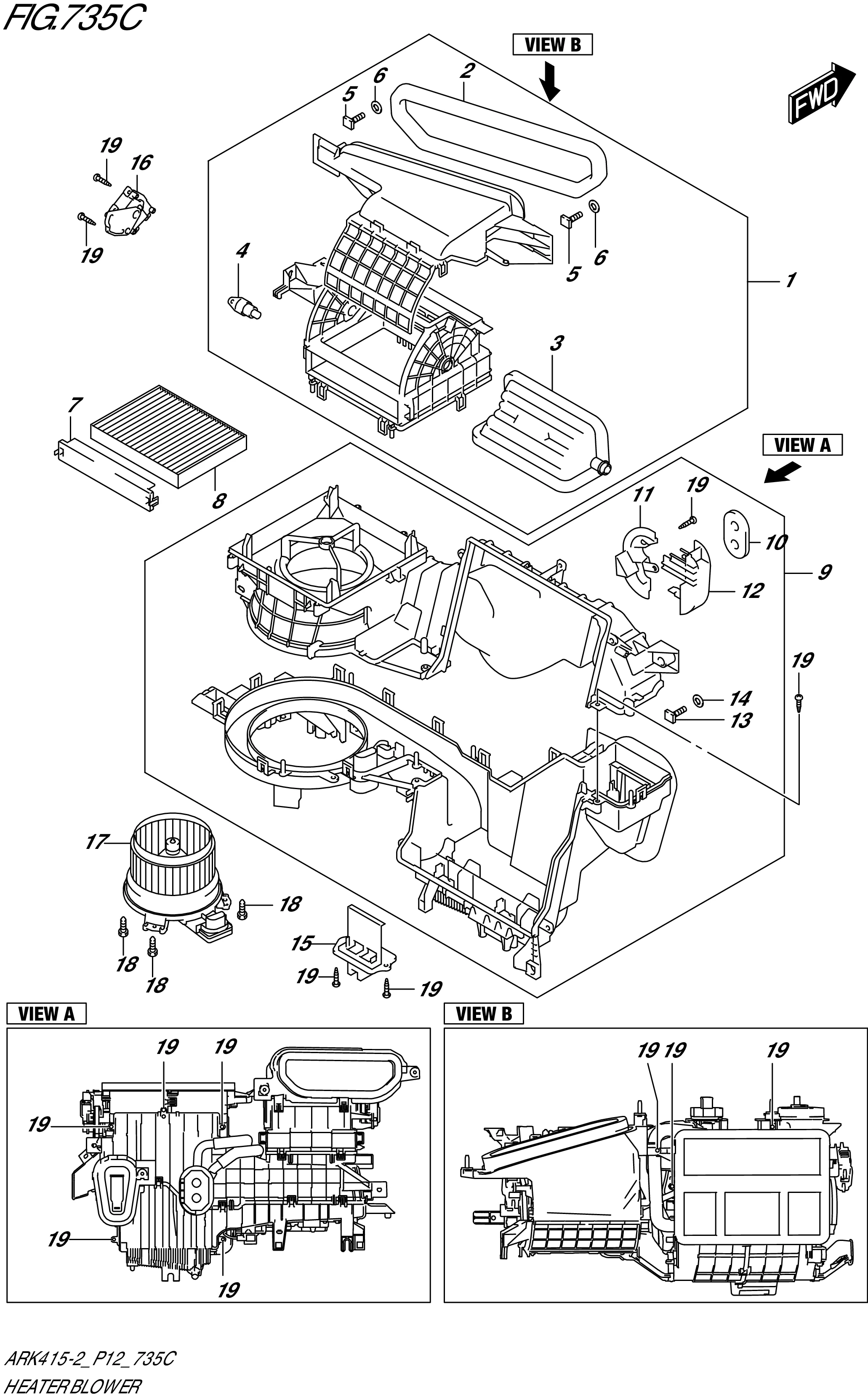

FIG. 735C - HEATER BLOWER (GX)(SEE NOTE 1)

FIG. 735C - HEATER BLOWER (GX)(SEE NOTE 1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	74210M55R60-000	CASE,BLOWER	1	Rp292.000
2	74119M55R00-000	.PACKING	1	Rp21.000
3	74176M68P00-000	.DOOR ASSY	1	Rp54.500
4	74281M55R60-000	.LEVER	1	Rp13.500
5	74119M79M00-000	.BOLT	2	Rp9.000
6	74119-78F10-000 SUB: 74119B78F10N000	.BUSH	2	Rp8.000
7	74214M68P00-000	HOLDER,FILTER	1	Rp18.500
8	95850M55R00-000	FILTER ASSY	1	Rp159.000
9	74220M72RB0-000	CASE ASSY,BLOWER	1	Rp298.500
10	74118-63J01-000	.PACKING,HTR PIPE	1	Rp74.000
11	74221M68P00-000	.BRACKET	1	Rp17.000
12	74222M68P00-000	.BRACKET	1	Rp19.500
13	74119M79M00-000	.BOLT	1	Rp9.000
14	74119-78F10-000 SUB: 74119B78F10N000	.BUSH	1	Rp8.000
15	95626M79M00-000	POWER TRANSISTOR ASSY,BLO	1	Rp743.000
16	95655M68P90-000	SERVO&ACC ASSY	1	Rp508.500
17	74150M68P31-000 SUB: 74150M68P21-000	MOTOR ASSY,W/FAN	1	Rp1.188.500
18	74135-82000-000 SUB: 74135B82000N000	SCREW,MOTOR	1	Rp19.500
19	03112-0416A-000 SUB: 03112B0416AN000	SCREW	14	Rp23.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
