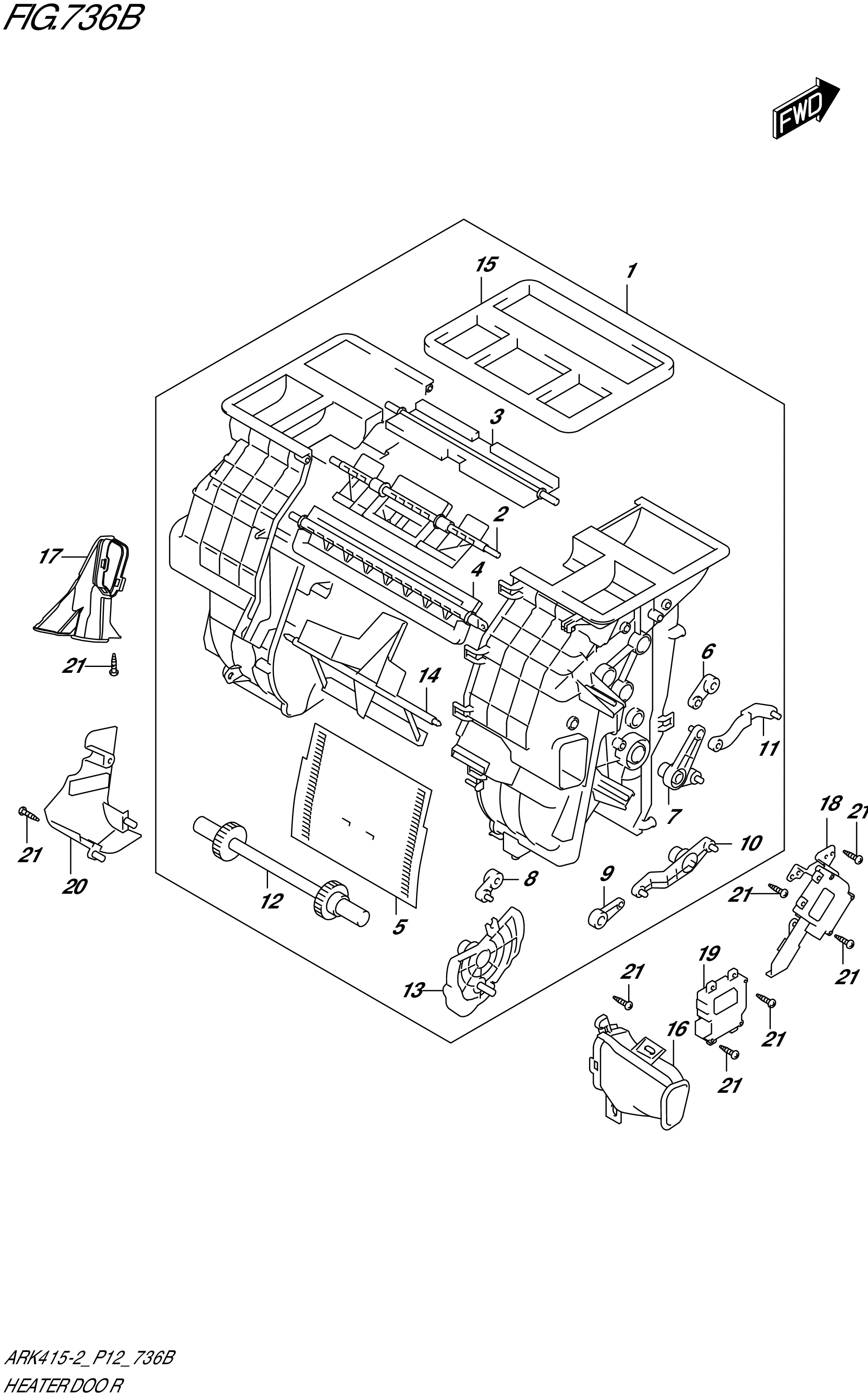

FIG. 736B - HEATER DOOR (GX)(SEE NOTE 1)

No	No. Part	Description	Qty	Price Per Pcs
1	74110M55R60-000	CASE,HEATER	1	Rp673.000
2	74171M68P00-000	.DOOR ASSY	1	Rp44.000
3	74172M68P00-000	.DOOR ASSY	1	Rp61.500
4	74173M68P00-000	.DOOR ASSY	1	Rp49.500
5	74178M79M00-000	.DOOR,A/M	1	Rp187.500
6	74191M68P00-000	.LEVER	1	Rp6.500
7	74192M68P10-000	.LEVER	1	Rp11.000
8	74193M68P00-000	.LEVER	1	Rp10.500
9	74194M68P00-000	.LEVER	1	Rp6.500
10	74195M68P10-000	.LEVER	1	Rp11.500
11	74196M68P90-000	.ROD	1	Rp11.500
12	74197M68P00-000	.SHAFT	1	Rp10.500
13	74181M68P90-000	.LEVER,PLATE	1	Rp13.000
14	74113M68P00-000	.DUCT,AIR	1	Rp15.000
15	74116M68P20-000	.PACKING	1	Rp37.000
16	74114M68P20-000	DUCT ASSY,AIR	1	Rp19.500
17	74115M55R00-000	DUCT ASSY AIR	1	Rp22.500
18	95653M68P90-000	SERVO MOTOR ASSY,W/ACC	1	Rp526.500
19	95654M68P90-000	SERVO MOTOR ASSY,W/ACC	1	Rp481.500
20	74131M55R00-000	COVER	1	Rp12.500
21	03112-0416A-000 SUB: 03112B0416AN000	SCREW	8	Rp23.500
