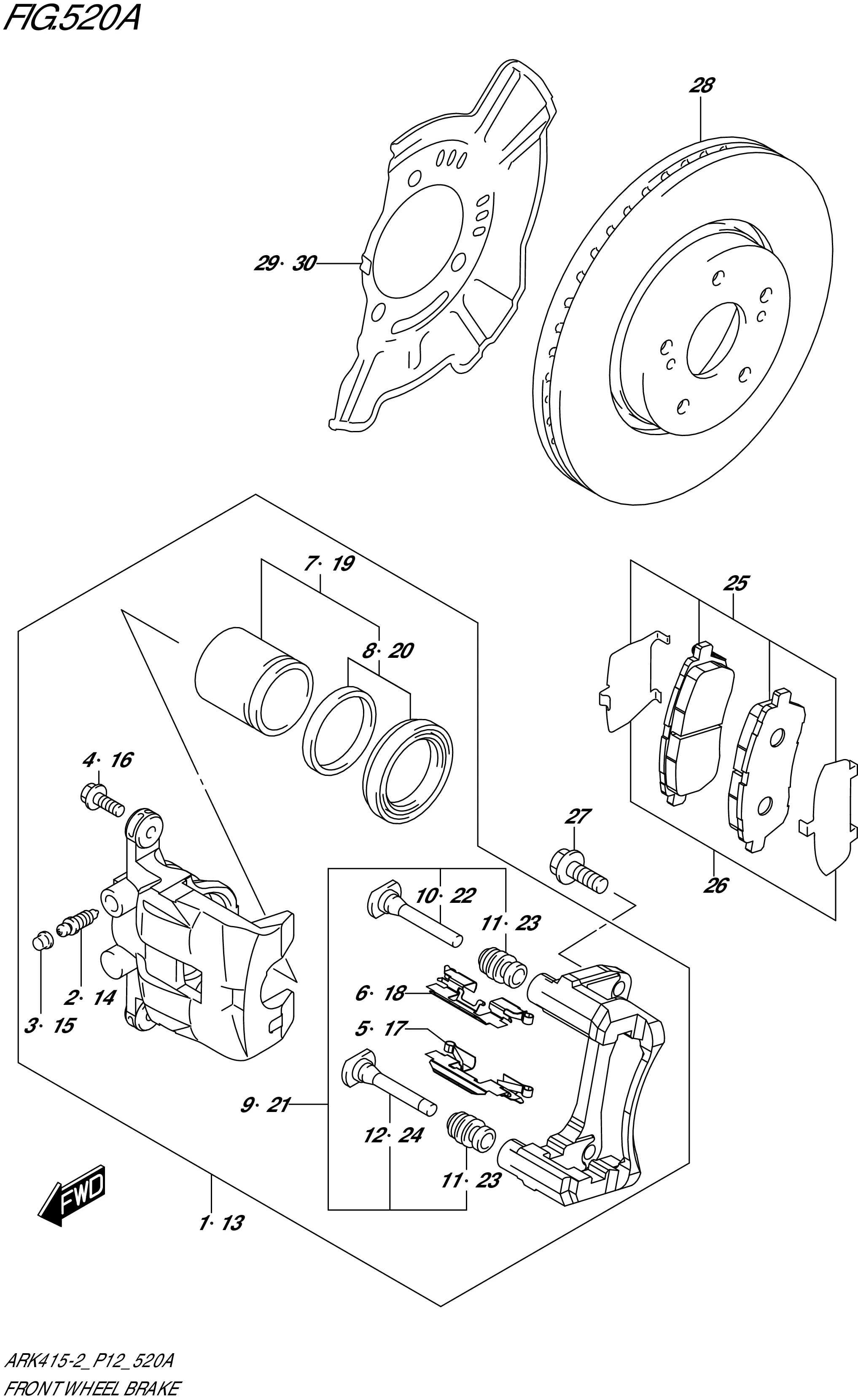

FIG. 520A - FRONT WHEEL BRAKE

No	No. Part	Description	Qty	Price Per Pcs
1	55101-73R00-999	CALIPER,FR BRAKE,R	1	Rp1.794.000
2	55151-61J00-000	.SCREW,BLEEDER	1	Rp22.000
3	55156-61J00-000	.CAP,BLEEDER	1	Rp7.500
4	55206-61J00-001 SUB: 55206-61J00-000	.BOLT	2	Rp17.500
5	55234-59R00-000	.CLIP, PAD	1	Rp79.500
6	55235-59R00-000	.CLIP, PAD	1	Rp79.500
7	55840-59R00-000	.PISTON/SEAL SET	1	Rp240.500
8	55830-59R00-000	..SEAL SET, PISTON	1	Rp139.500
9	55850-73R00-000	.SLIDE PIN,BOOT SET	1	Rp135.000
10	55192-61J00-001 SUB: 55192-61J00-000	..PIN,GUIDE	1	Rp37.500
11	55201-61J00-000	..BOOT,PIN	2	Rp24.500
12	55855-73R00-000	..LOCK PIN SET	1	Rp82.500
13	55102-73R00-999	CALIPER,FR BRAKE,L	1	Rp1.794.000
14	55151-61J00-000	.SCREW,BLEEDER	1	Rp22.000
15	55156-61J00-000	.CAP,BLEEDER	1	Rp7.500
16	55206-61J00-001 SUB: 55206-61J00-000	.BOLT	2	Rp17.500
17	55234-59R00-000	.CLIP, PAD	1	Rp79.500
18	55235-59R00-000	.CLIP, PAD	1	Rp79.500
19	55840-59R00-000	.PISTON/SEAL SET	1	Rp240.500
20	55830-59R00-000	..SEAL SET, PISTON	1	Rp139.500
21	55850-73R00-000	.SLIDE PIN,BOOT SET	1	Rp135.000
22	55192-61J00-001 SUB: 55192-61J00-000	..PIN,GUIDE	1	Rp37.500
23	55201-61J00-000	..BOOT,PIN	2	Rp24.500
24	55855-73R00-000	..LOCK PIN SET	1	Rp82.500
25	55810-59R00-000	PAD SET	1	Rp543.500
26	55820-61J00-000	.SHIM SET,ANTI NOISE	1	Rp37.000
27	09117-12012-000	BOLT (12X32)	4	Rp38.500
28	55311-72R10-000	DISC,FR BRAKE	2	Rp421.500
29	55321-72R00-000	COVER,BRAKE DISC DUST,R	1	Rp39.000
30	55322-72R00-000	COVER,BRAKE DISC DUST,L	1	Rp39.000
