ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 490B - PEDAL/PEDAL BRACKET (4AT)FIG. 500A - BRAKE MASTER CYLINDER (5MT)FIG. 500C - BRAKE MASTER CYLINDER (4AT:W_ESP)FIG. 510A - ANTI LOCK BRAKE SYSTEM (N_ESP)FIG. 510B - ANTI LOCK BRAKE SYSTEM (W_ESP)FIG. 520A - FRONT WHEEL BRAKE FIG. 530A - REAR WHEEL BRAKE FIG. 542A - PARKING BRAKE FIG. 570A - FRONT HOOD PANEL FIG. 572A - TIRE CARRIER FIG. 580A - FRONT FENDER PANEL (GA)FIG. 580B - FRONT FENDER PANEL (GL)FIG. 580C - FRONT FENDER PANEL (GX)FIG. 590A - FRONT BODY PANEL FIG. 600A - FLOOR PANEL FIG. 640A - SIDE BODY PANEL FIG. 660A - ROOF PANEL (GA)FIG. 717A - FRONT BUMPER FIG. 718A - REAR BUMPER FIG. 721A - INSTRUMENT PANEL UPPER FIG. 722A - INSTRUMENT PANEL LOWER (GA,GL)FIG. 722B - INSTRUMENT PANEL LOWER (GX)FIG. 730A - VENTILATOR (GA,GL)FIG. 730B - VENTILATOR (GX)FIG. 732A - HEATER UNIT (GA,GL)FIG. 732B - HEATER UNIT (GX)FIG. 735A - HEATER BLOWER (GA)(SEE NOTE 1)FIG. 735B - HEATER BLOWER (GL)(SEE NOTE 1)FIG. 735C - HEATER BLOWER (GX)(SEE NOTE 1)FIG. 736A - HEATER DOOR (GA,GL)(SEE NOTE 1)FIG. 736B - HEATER DOOR (GX)(SEE NOTE 1)FIG. 737A - EVAPORATOR UNIT (GA,GL)(SEE NOTE 1)FIG. 737B - EVAPORATOR UNIT (GX)(SEE NOTE 1)FIG. 740A - CONSOLE BOX (GA)FIG. 740B - CONSOLE BOX (GL)741A - FLOOR CARPET (GA)FIG. 741B - FLOOR CARPET (GL)FIG. 741C - FLOOR CARPET (GX)FIG. 745A - INTERIOR TRIM FIG. 755A - FUEL LID OPENER FIG. 757A - ROOF SIDE PAD FIG. 760A - ROOF LINING FIG. 772A - MOLDING FIG. 780A - EMBLEM FIG. 790A - WINDSHIELD FIG. 660B - ROOF PANEL (GL,GX)FIG. 490A - PEDAL/PEDAL BRACKET (5MT)FIG. 500B - BRAKE MASTER CYLINDER (4AT:N_ESP)FIG. 740C - CONSOLE BOX (GX)FIG. 750A - COVER/CAP

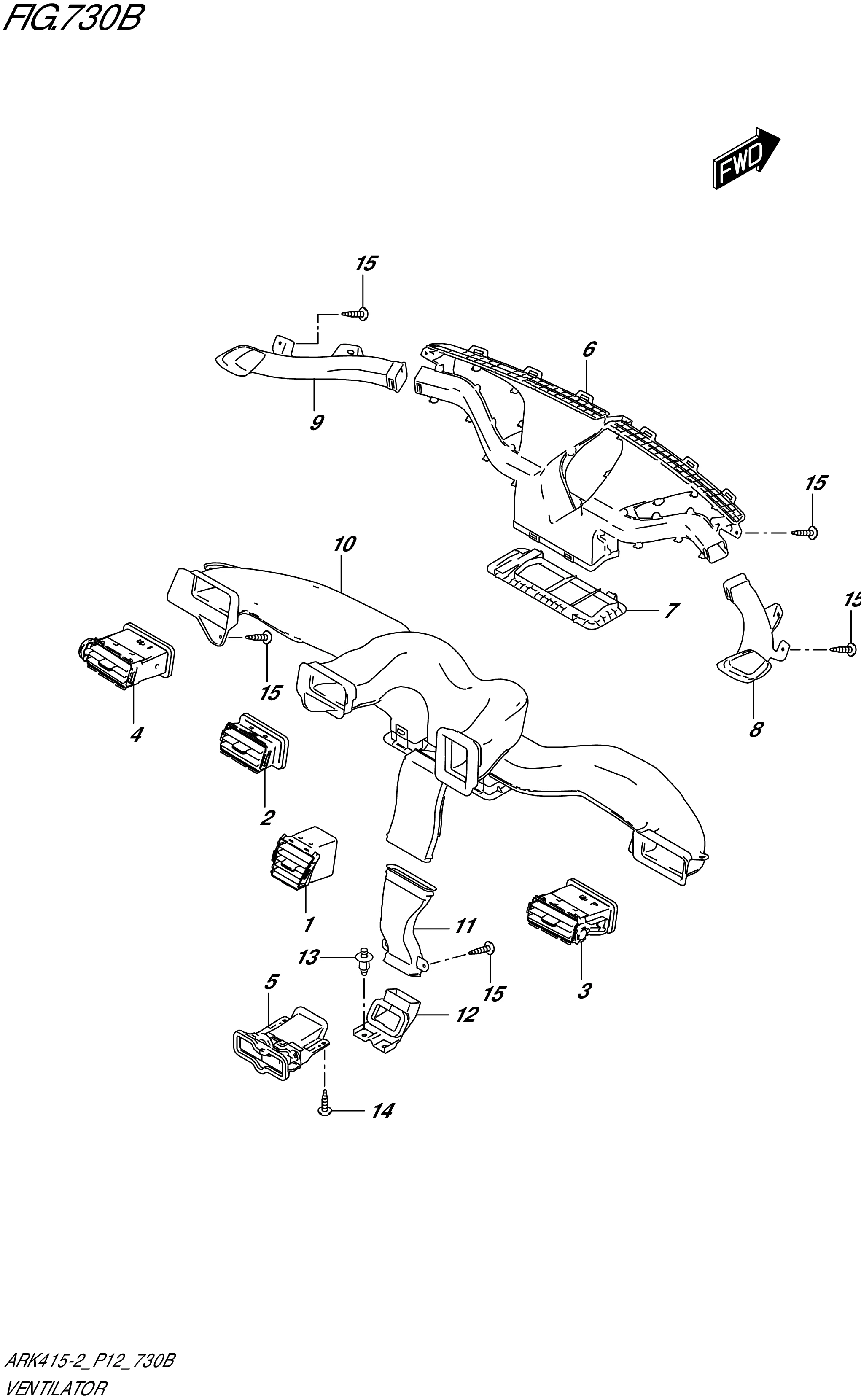

FIG. 730B - VENTILATOR (GX)

FIG. 730B - VENTILATOR (GX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73610-73R00-C48	LOUVER,CTR VENT DR (CHROME)	1	Rp147.000
2	73620-73R00-C48	LOUVER,CTR VENT ASST (CHROME)	1	Rp115.500
3	73630-73R00-C48	LOUVER,SIDE VENT,R (CHROME)	1	Rp186.000
4	73640-73R00-C48	LOUVER,SIDE VENT,L (CHROME)	1	Rp182.000
5-1	73610-73RA0-V6N	OUTLET,CUP HOLDER (BEIGE)	1	Rp125.000
5-2	73610-73RA0-5PK	OUTLET,CUP HOLDER (BLACK)	1	Rp133.000
6	73661-73R00-000	NOZZLE,DFR	1	Rp82.500
7	73662-77M00-000 SUB: 73662B77M00N000	ADAPTER,DFR NOZZLE	1	Rp19.000
8	73681-73R00-000	DUCT,DEMISTER,R	1	Rp70.000
9	73691-73R00-000	DUCT,DEMISTER,L	1	Rp70.000
10	74620-73R20-000	DUCT,VENT	1	Rp385.000
11	74661-73R00-000	DUCT,CUP HOLDER NO.1	1	Rp86.000
12	74662-73R00-000	DUCT,CUP HOLDER NO.2	1	Rp67.500
13	09409M07L02-5PK SUB: 09409-07308-5PK	CLIP (6.5X20.5,BLACK)	2	Rp7.500
14	03541-0412A-000 SUB: 03541B0412AN000	SCREW (4X12)	4	Rp3.500
15	03541-0516A-000 SUB: 03541B0516AN000	SCREW	10	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
