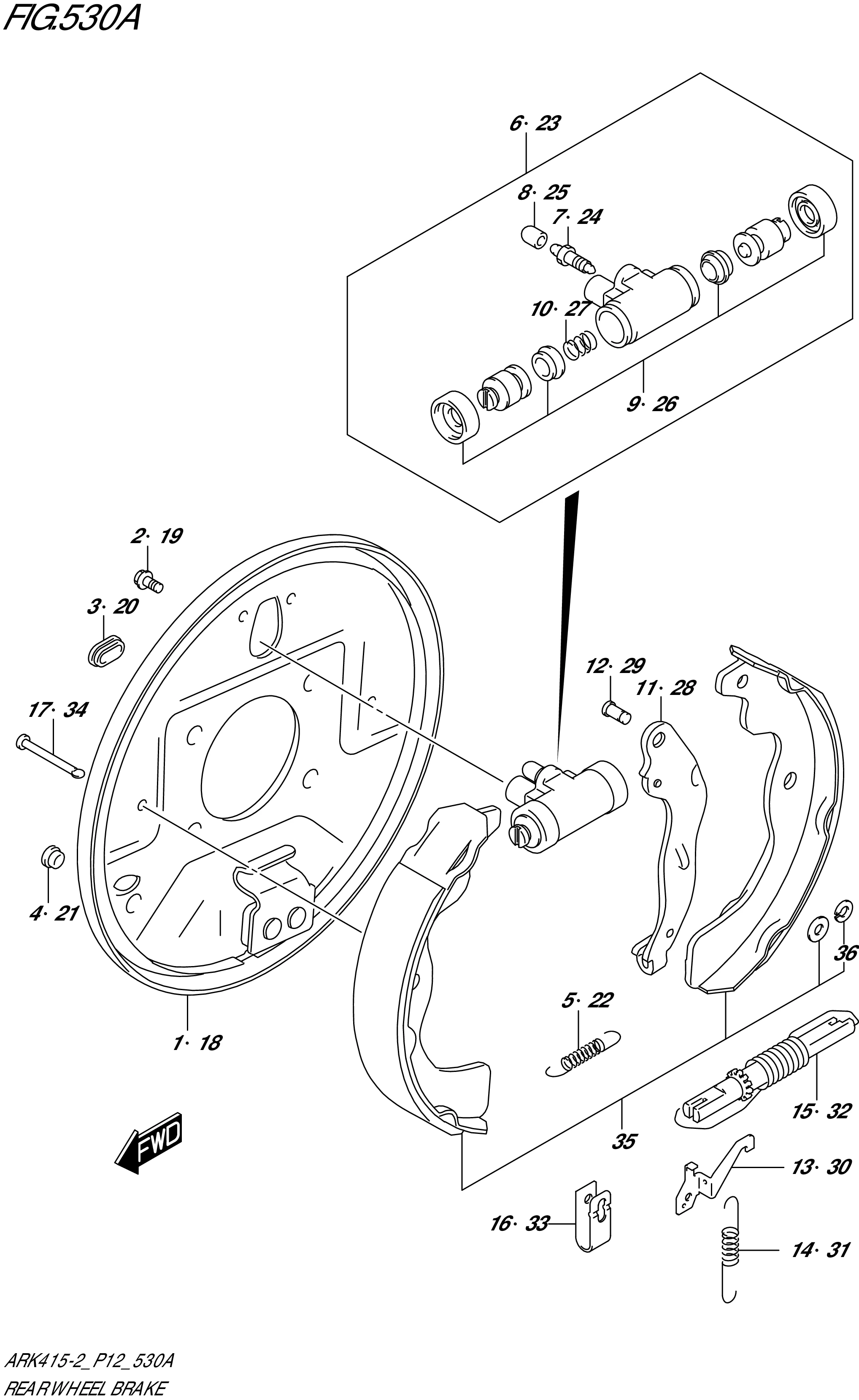

FIG. 530A - REAR WHEEL BRAKE

No	No. Part	Description	Qty	Price Per Pcs
1	53101-73R00-000	PLATE ASSY,BRAKE BACKING,R	1	Rp165.500
2	53131-70AA0-000	BOLT	2	Rp5.500
3	53141-70A00-000	PLUG,BACKING PLATE	1	Rp6.500
4	53141-73R00-000	PLUG,ADJUSTER	1	Rp6.500
5	53231-81A00-000	SPRING,LOWER	1	Rp11.500
6	53401-73R00-000	CYLINDER ASSY,RR BRAKE	1	Rp339.500
7	52473-70AA0-000	.SCREW,BLEEDER	1	Rp11.000
8	52474-70AA0-000	.CAP,BLEEDER SCREW	1	Rp8.500
9	53400-81A10-000	.PISTON CUP/BOOT SET	1	Rp57.000
10	53441-73R00-000	.SPRING,WHEEL CYLINDER	1	Rp8.500
11	53721-73R00-000	LEVER,PARKING,R	1	Rp46.500
12	53731-73R00-000	PIN,PARKING LEVER	1	Rp7.000
13	53781-81A00-000	LEVER,ADJUSTER,R	1	Rp150.500
14	53791-81A00-000	SPRING,ADJUSTER,R	1	Rp34.500
15	53810-81A01-000	SPRING&ROD ASSY RH	1	Rp352.500
16	52243-73R00-000	SPRING,SHOE CLAMP	2	Rp48.500
17	53241-50G10-000	PIN,SHOE HOLD DOWN	2	Rp8.500
18	53102-73R00-000	PLATE ASSY,BRAKE BACKING,L	1	Rp165.500
19	53131-70AA0-000	BOLT	2	Rp5.500
20	53141-70A00-000	PLUG,BACKING PLATE	1	Rp6.500
21	53141-73R00-000	PLUG,ADJUSTER	1	Rp6.500
22	53231-81A00-000	SPRING,LOWER	1	Rp11.500
23	53401-73R00-000	CYLINDER ASSY,RR BRAKE	1	Rp339.500
24	52473-70AA0-000	.SCREW,BLEEDER	1	Rp11.000
25	52474-70AA0-000	.CAP,BLEEDER SCREW	1	Rp8.500
26	53400-81A10-000	.PISTON CUP/BOOT SET	1	Rp57.000
27	53441-73R00-000	.SPRING,WHEEL CYLINDER	1	Rp8.500
28	53726-73R00-000	LEVER,PARKING,L	1	Rp48.500
29	53731-73R00-000	PIN,PARKING LEVER	1	Rp7.000
30	53782-81A00-000	LEVER,ADJUSTER,L	1	Rp146.000
31	53792-81A00-000	SPRING,ADJUSTER,L	1	Rp33.000
32	53860-81A01-000	SPRING&ROD ASSY LH	1	Rp352.500
33	52243-73R00-000	SPRING,SHOE CLAMP	2	Rp48.500
34	53241-50G10-000	PIN,SHOE HOLD DOWN	2	Rp8.500
35	53200-73R00-000	SHOE SET,BRAKE	1	Rp601.000
36	53751-50G10-000	.CLIP	2	Rp27.000
