ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 490B - PEDAL/PEDAL BRACKET (4AT)FIG. 500A - BRAKE MASTER CYLINDER (5MT)FIG. 500C - BRAKE MASTER CYLINDER (4AT:W_ESP)FIG. 510A - ANTI LOCK BRAKE SYSTEM (N_ESP)FIG. 510B - ANTI LOCK BRAKE SYSTEM (W_ESP)FIG. 520A - FRONT WHEEL BRAKE FIG. 530A - REAR WHEEL BRAKE FIG. 542A - PARKING BRAKE FIG. 570A - FRONT HOOD PANEL FIG. 572A - TIRE CARRIER FIG. 580A - FRONT FENDER PANEL (GA)FIG. 580B - FRONT FENDER PANEL (GL)FIG. 580C - FRONT FENDER PANEL (GX)FIG. 590A - FRONT BODY PANEL FIG. 600A - FLOOR PANEL FIG. 640A - SIDE BODY PANEL FIG. 660A - ROOF PANEL (GA)FIG. 717A - FRONT BUMPER FIG. 718A - REAR BUMPER FIG. 721A - INSTRUMENT PANEL UPPER FIG. 722A - INSTRUMENT PANEL LOWER (GA,GL)FIG. 722B - INSTRUMENT PANEL LOWER (GX)FIG. 730A - VENTILATOR (GA,GL)FIG. 730B - VENTILATOR (GX)FIG. 732A - HEATER UNIT (GA,GL)FIG. 732B - HEATER UNIT (GX)FIG. 735A - HEATER BLOWER (GA)(SEE NOTE 1)FIG. 735B - HEATER BLOWER (GL)(SEE NOTE 1)FIG. 735C - HEATER BLOWER (GX)(SEE NOTE 1)FIG. 736A - HEATER DOOR (GA,GL)(SEE NOTE 1)FIG. 736B - HEATER DOOR (GX)(SEE NOTE 1)FIG. 737A - EVAPORATOR UNIT (GA,GL)(SEE NOTE 1)FIG. 737B - EVAPORATOR UNIT (GX)(SEE NOTE 1)FIG. 740A - CONSOLE BOX (GA)FIG. 740B - CONSOLE BOX (GL)741A - FLOOR CARPET (GA)FIG. 741B - FLOOR CARPET (GL)FIG. 741C - FLOOR CARPET (GX)FIG. 745A - INTERIOR TRIM FIG. 755A - FUEL LID OPENER FIG. 757A - ROOF SIDE PAD FIG. 760A - ROOF LINING FIG. 772A - MOLDING FIG. 780A - EMBLEM FIG. 790A - WINDSHIELD FIG. 660B - ROOF PANEL (GL,GX)FIG. 490A - PEDAL/PEDAL BRACKET (5MT)FIG. 500B - BRAKE MASTER CYLINDER (4AT:N_ESP)FIG. 740C - CONSOLE BOX (GX)FIG. 750A - COVER/CAP

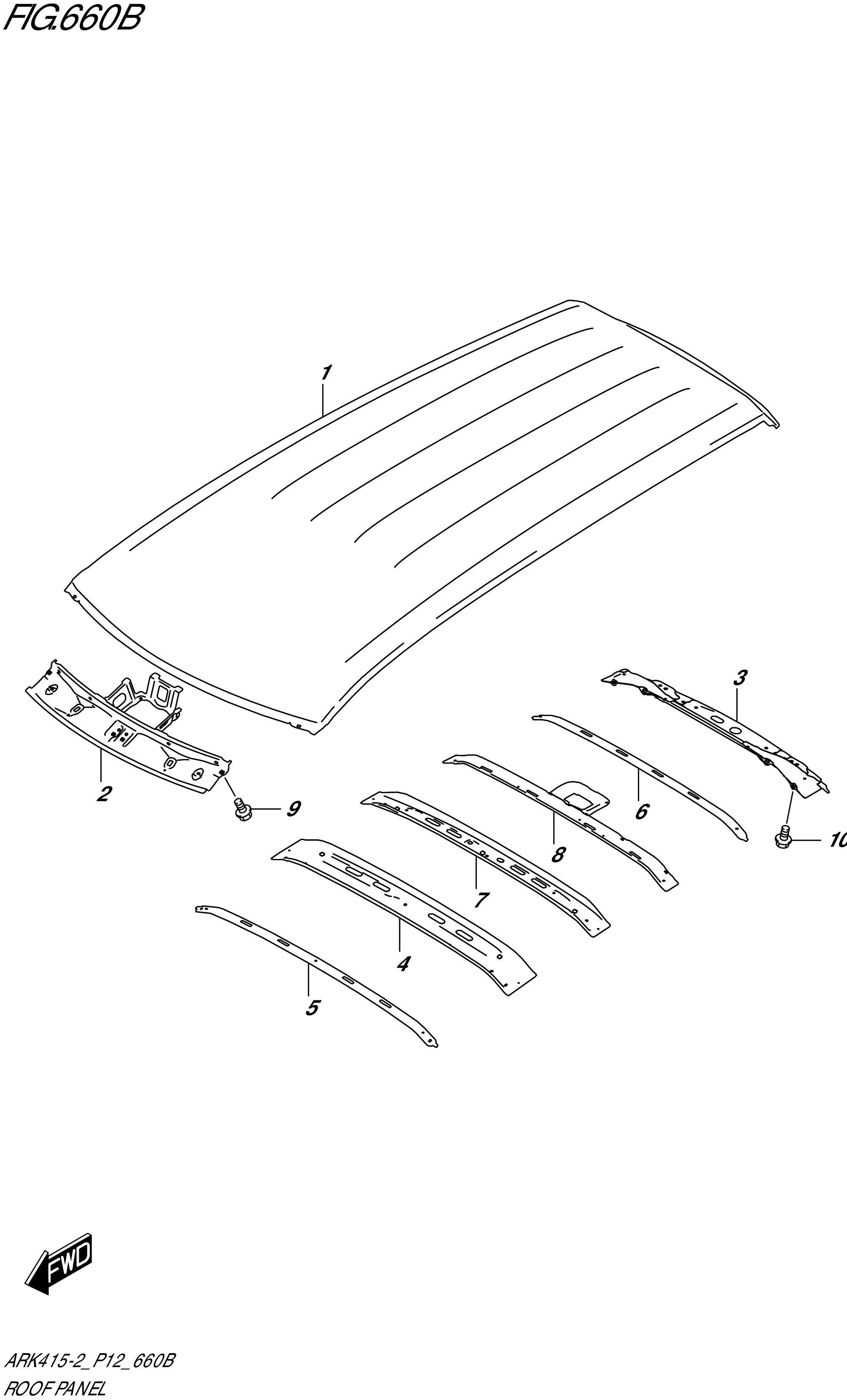

FIG. 660B - ROOF PANEL (GL,GX)

FIG. 660B - ROOF PANEL (GL,GX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	65111-73R00-000	PANEL,ROOF	1	Rp2.190.000
2	65120-73R10-000	MEMBER,ROOF FR INNER	1	Rp283.500
3	65130-73R00-000	MEMBER,ROOF BACK INNER	1	Rp403.500
4	65150-73R10-000	MEMBER,ROOF CTR INNER	1	Rp195.000
5	65162-73R00-000	MEMBER,ROOF PANEL CTR NO.2	1	Rp211.500
6	65165-73R00-000	MEMBER,ROOF PANEL CTR NO.4	1	Rp192.000
7	65171-73R00-000	MEMBER,COOLING UNIT	1	Rp195.000
8	65180-73R00-000	MEMBER,ROOF PNL CTR NO.3	1	Rp91.500
9	DISCONTINUE SUB: 01550B0612AN000	BOLT (6X12)	2	-
10	DISCONTINUE SUB: 01550B0612AN000	BOLT (6X12)	6	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
