ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 490B - PEDAL/PEDAL BRACKET (4AT)FIG. 500A - BRAKE MASTER CYLINDER (5MT)FIG. 500C - BRAKE MASTER CYLINDER (4AT:W_ESP)FIG. 510A - ANTI LOCK BRAKE SYSTEM (N_ESP)FIG. 510B - ANTI LOCK BRAKE SYSTEM (W_ESP)FIG. 520A - FRONT WHEEL BRAKE FIG. 530A - REAR WHEEL BRAKE FIG. 542A - PARKING BRAKE FIG. 570A - FRONT HOOD PANEL FIG. 572A - TIRE CARRIER FIG. 580A - FRONT FENDER PANEL (GA)FIG. 580B - FRONT FENDER PANEL (GL)FIG. 580C - FRONT FENDER PANEL (GX)FIG. 590A - FRONT BODY PANEL FIG. 600A - FLOOR PANEL FIG. 640A - SIDE BODY PANEL FIG. 660A - ROOF PANEL (GA)FIG. 717A - FRONT BUMPER FIG. 718A - REAR BUMPER FIG. 721A - INSTRUMENT PANEL UPPER FIG. 722A - INSTRUMENT PANEL LOWER (GA,GL)FIG. 722B - INSTRUMENT PANEL LOWER (GX)FIG. 730A - VENTILATOR (GA,GL)FIG. 730B - VENTILATOR (GX)FIG. 732A - HEATER UNIT (GA,GL)FIG. 732B - HEATER UNIT (GX)FIG. 735A - HEATER BLOWER (GA)(SEE NOTE 1)FIG. 735B - HEATER BLOWER (GL)(SEE NOTE 1)FIG. 735C - HEATER BLOWER (GX)(SEE NOTE 1)FIG. 736A - HEATER DOOR (GA,GL)(SEE NOTE 1)FIG. 736B - HEATER DOOR (GX)(SEE NOTE 1)FIG. 737A - EVAPORATOR UNIT (GA,GL)(SEE NOTE 1)FIG. 737B - EVAPORATOR UNIT (GX)(SEE NOTE 1)FIG. 740A - CONSOLE BOX (GA)FIG. 740B - CONSOLE BOX (GL)741A - FLOOR CARPET (GA)FIG. 741B - FLOOR CARPET (GL)FIG. 741C - FLOOR CARPET (GX)FIG. 745A - INTERIOR TRIM FIG. 755A - FUEL LID OPENER FIG. 757A - ROOF SIDE PAD FIG. 760A - ROOF LINING FIG. 772A - MOLDING FIG. 780A - EMBLEM FIG. 790A - WINDSHIELD FIG. 660B - ROOF PANEL (GL,GX)FIG. 490A - PEDAL/PEDAL BRACKET (5MT)FIG. 500B - BRAKE MASTER CYLINDER (4AT:N_ESP)FIG. 740C - CONSOLE BOX (GX)FIG. 750A - COVER/CAP

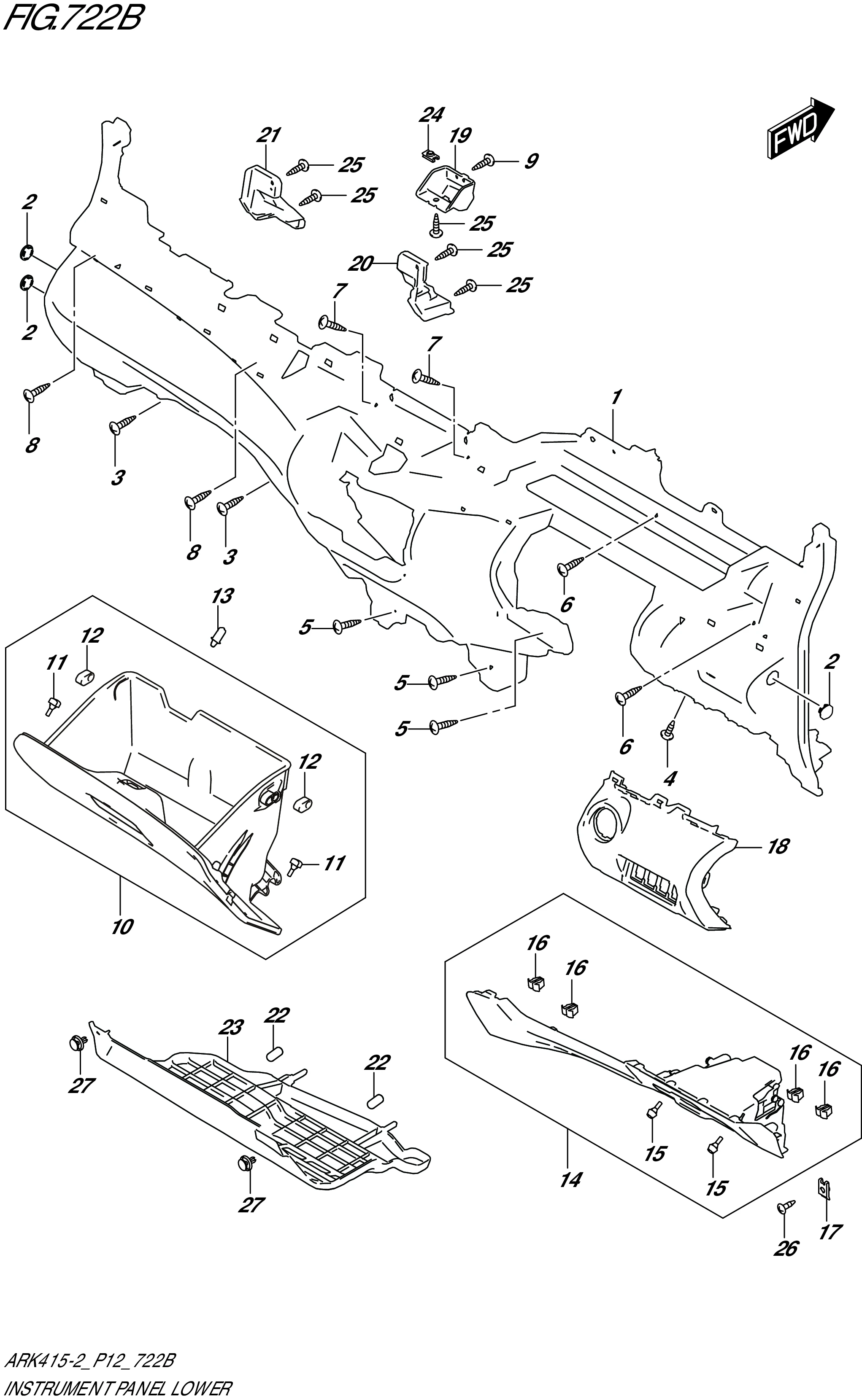

FIG. 722B - INSTRUMENT PANEL LOWER (GX)

No	No. Part	Description	Qty	Price Per Pcs
1-2	73121-73R00-5PK	PANEL,INSTRUMENT MAIN LOWER (BLACK)	1	Rp366.000
1-1	73121-73R00-V6N	PANEL,INSTRUMENT MAIN LOWER (BEIGE)	1	Rp357.500
2	73871-73H00-5PK	CAP,I/P SIDE (BLACK)	3	Rp43.500
3	09132-05049-000	SCREW (5X12)	2	Rp21.000
4	09132-05049-000	SCREW (5X12)	1	Rp21.000
5	09132-05049-000	SCREW (5X12)	3	Rp21.000
6	09132-05049-000	SCREW (5X12)	2	Rp21.000
7	09132-05049-000	SCREW (5X12)	2	Rp21.000
8	09132-05049-000	SCREW (5X12)	2	Rp21.000
9	03541-0516A-000 SUB: 03541B0516AN000	SCREW	1	Rp3.500
10-1	73410-73R00-V6N	BOX,GLOVE (BEIGE)	1	Rp230.000
10-2	73410-73R00-5PK	BOX,GLOVE (BLACK)	1	Rp275.500
11	73461-54M00-000	.CUSHION	2	Rp32.000
12	73413M65D00-000 SUB: 73413-65D00-000	.CUSHION,GLOVE BOX	2	Rp6.500
13	73461-77R00-000	CUSHION,GLOVE BOX	1	Rp33.500
14-2	73810-73R00-5PK	COVER,STRG COLUMN HOLE (BLACK)	1	Rp115.500
14-1	73810-73R00-V6N	COVER,STRG COLUMN HOLE (BEIGE)	1	Rp92.000
15	73413M82C00-000 SUB: 73413-82C00-000	.CUSHION	2	Rp11.500
16	09409-08351-000	.CLIP	4	Rp21.000
17	09148-05045-000 SUB: 09148B05045N000	NUT (M5)	1	Rp4.000
18-1	73833-73R10-V6N	BEZEL,I/P SW (BEIGE)	1	Rp70.500
18-2	73833-73R10-5PK	BEZEL,I/P SW (BLACK)	1	Rp70.500
19	73841-73R00-000	COVER,GLOVE BOX STRIKER	1	Rp14.000
20-2	73863-73R00-5PK	COVER,GLOVE BOX INSIDE (BLACK)	1	Rp8.000
20-1	73863-73R00-V6N	COVER,GLOVE BOX INSIDE (BEIGE)	1	Rp9.000
21-1	73864-73R00-V6N	COVER,GLOVE BOX OUTSIDE (BEIGE)	1	Rp9.000
21-2	73864-73R00-5PK	COVER,GLOVE BOX OUTSIDE (BLACK)	1	Rp8.000
22	73132-57L00-000	CAP,I/P PIN	2	Rp38.000
23	73891-73R00-000	COVER,I/P UNDER ASST	1	Rp43.500
24	09148-05045-000 SUB: 09148B05045N000	NUT (M5)	1	Rp4.000
25	03541-0516A-000 SUB: 03541B0516AN000	SCREW	5	Rp3.500
26	03541-0516A-000 SUB: 03541B0516AN000	SCREW	1	Rp3.500
27	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500
