ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 490B - PEDAL/PEDAL BRACKET (4AT)FIG. 500A - BRAKE MASTER CYLINDER (5MT)FIG. 500C - BRAKE MASTER CYLINDER (4AT:W_ESP)FIG. 510A - ANTI LOCK BRAKE SYSTEM (N_ESP)FIG. 510B - ANTI LOCK BRAKE SYSTEM (W_ESP)FIG. 520A - FRONT WHEEL BRAKE FIG. 530A - REAR WHEEL BRAKE FIG. 542A - PARKING BRAKE FIG. 570A - FRONT HOOD PANEL FIG. 572A - TIRE CARRIER FIG. 580A - FRONT FENDER PANEL (GA)FIG. 580B - FRONT FENDER PANEL (GL)FIG. 580C - FRONT FENDER PANEL (GX)FIG. 590A - FRONT BODY PANEL FIG. 600A - FLOOR PANEL FIG. 640A - SIDE BODY PANEL FIG. 660A - ROOF PANEL (GA)FIG. 717A - FRONT BUMPER FIG. 718A - REAR BUMPER FIG. 721A - INSTRUMENT PANEL UPPER FIG. 722A - INSTRUMENT PANEL LOWER (GA,GL)FIG. 722B - INSTRUMENT PANEL LOWER (GX)FIG. 730A - VENTILATOR (GA,GL)FIG. 730B - VENTILATOR (GX)FIG. 732A - HEATER UNIT (GA,GL)FIG. 732B - HEATER UNIT (GX)FIG. 735A - HEATER BLOWER (GA)(SEE NOTE 1)FIG. 735B - HEATER BLOWER (GL)(SEE NOTE 1)FIG. 735C - HEATER BLOWER (GX)(SEE NOTE 1)FIG. 736A - HEATER DOOR (GA,GL)(SEE NOTE 1)FIG. 736B - HEATER DOOR (GX)(SEE NOTE 1)FIG. 737A - EVAPORATOR UNIT (GA,GL)(SEE NOTE 1)FIG. 737B - EVAPORATOR UNIT (GX)(SEE NOTE 1)FIG. 740A - CONSOLE BOX (GA)FIG. 740B - CONSOLE BOX (GL)741A - FLOOR CARPET (GA)FIG. 741B - FLOOR CARPET (GL)FIG. 741C - FLOOR CARPET (GX)FIG. 745A - INTERIOR TRIM FIG. 755A - FUEL LID OPENER FIG. 757A - ROOF SIDE PAD FIG. 760A - ROOF LINING FIG. 772A - MOLDING FIG. 780A - EMBLEM FIG. 790A - WINDSHIELD FIG. 660B - ROOF PANEL (GL,GX)FIG. 490A - PEDAL/PEDAL BRACKET (5MT)FIG. 500B - BRAKE MASTER CYLINDER (4AT:N_ESP)FIG. 740C - CONSOLE BOX (GX)FIG. 750A - COVER/CAP

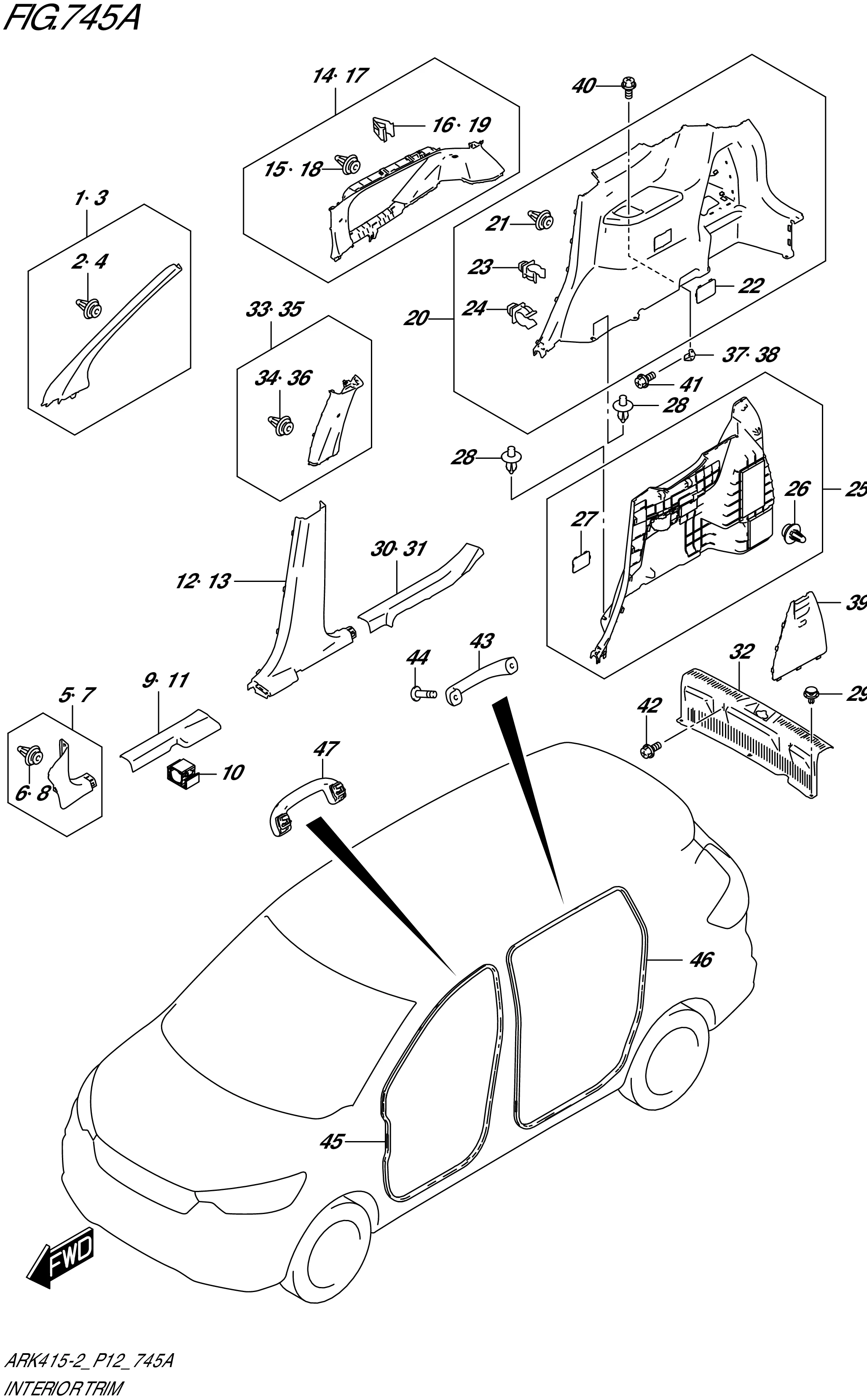

FIG. 745A - INTERIOR TRIM

No	No. Part	Description	Qty	Price Per Pcs
1	76110-73R00-V6N	TRIM,FRONT PILLAR,R (BEIGE)	1	Rp159.500
2	09409-10314-000	.CLIP	3	Rp17.000
3	76120-73R00-V6N	TRIM,FRONT PILLAR,L (BEIGE)	1	Rp159.500
4	09409-10314-000	.CLIP	3	Rp17.000
5-1	76130-73R00-V6N	TRIM,DASH SIDE,R (BEIGE)	1	Rp130.500
5-2	76130-73R00-5PK	TRIM,DASH SIDE,R (BLACK)	1	Rp128.000
6	76142-76G00-000 SUB: 76142B76G00N000	.CLIP,INR	1	Rp9.500
7-1	76140-73R00-V6N	TRIM,DASH SIDE,L (BEIGE)	1	Rp130.500
7-2	76140-73R00-5PK	TRIM,DASH SIDE,L (BLACK)	1	Rp128.000
8	76142-76G00-000 SUB: 76142B76G00N000	.CLIP,INR	1	Rp9.500
9-1	76151-73R00-V6N	SCUFF,SIDE SILL FRONT,R (BEIGE)	1	Rp76.500
9-2	76151-73R00-5PK	SCUFF,SIDE SILL FRONT,R (BLACK	1	Rp74.500
10	76158-71L00-000	CLAMP,SIDE SILL SCUFF	12	Rp34.500
11-1	76161-73R00-V6N	SCUFF,SIDE SILL FRONT,L (BEIGE)	1	Rp76.500
11-2	76161-73R00-5PK	SCUFF,SIDE SILL FRONT,L (BLACK)	1	Rp74.500
12-1	76231-73R00-V6N	TRIM,CTR PILLAR LOWER,R (BEIGE)	1	Rp177.500
12-2	76231-73R00-5PK	TRIM,CTR PILLAR LOWER,R (BLACK)	1	Rp174.000
13-1	76241-73R00-V6N	TRIM,CTR PILLAR LOWER,L (BEIGE)	1	Rp177.500
13-2	76241-73R00-5PK	TRIM,CTR PILLAR LOWER,L (BLACK)	1	Rp174.000
14	76250-73R00-V6N	TRIM,QUARTER UPPER,R (BEIGE)	1	Rp311.500
15	09409-10327-000 SUB: 09409B10312N000	.CLIP	5	Rp5.000
16	09409-07335-000	.CLIP	2	Rp17.500
17	76260-73R00-V6N	TRIM,QUARTER UPPER,L (BEIGE)	1	Rp311.500
18	09409-10327-000 SUB: 09409B10312N000	.CLIP	5	Rp5.000
19	09409-07335-000	.CLIP	2	Rp17.500
20-1	76270-73R00-V6N	TRIM,QUARTER LOWER,R (BEIGE)	1	Rp798.000
20-2	76270-73R00-5PK	TRIM,QUARTER LOWER,R (BLACK)	1	Rp1.076.500
21	09409-10327-000 SUB: 09409B10312N000	.CLIP	6	Rp5.000
22-1	76273-73R00-V6N	.CAP,QUARTER LOWER TRIM,R (BEI	1	Rp18.500
22-2	76273-73R00-5PK	.CAP,QUARTER LOWER TRIM,R (BLAVK)	1	Rp23.500
23	09403-08326-000	.CLAMP (D:8)	2	Rp19.500
24	09403-13317-000	.CLAMP	2	Rp9.000
25-2	76280-73R00-5PK	TRIM,QUARTER LOWER,L (BLACK)	1	Rp1.076.500
25-1	76280-73R00-V6N	TRIM,QUARTER LOWER,L (BEIGE)	1	Rp798.000
26	09409-10327-000 SUB: 09409B10312N000	.CLIP	6	Rp5.000
27-1	76283-73R00-V6N	.CAP,QUARTER LOWER TRIM,L (BEIGE)	1	Rp18.500
27-2	76283-73R00-5PK	.CAP,QUARTER LOWER TRIM,L (BLACK)	1	Rp24.000
28-1	09409-07330-V6N	CLIP,QUARTER LOWER TRIM (BEIGE)	4	Rp11.000
28-2	09409-07330-5PK	CLIP (BLACK)	4	Rp12.500
29-1	09409-07340-V6N	CLIP (BEIGE)	3	Rp23.000
29-2	09409-07340-5PK	CLIP (BLACK)	3	Rp23.500
30-1	76171-73R00-V6N	SCUFF,SIDE SILL REAR,R (BEIGE)	1	Rp88.500
30-2	76171-73R00-5PK	SCUFF,SIDE SILL REAR,R (BLACK)	1	Rp86.500
31-1	76181-73R00-V6N	SCUFF,SIDE SILL REAR,L (BEIGE)	1	Rp88.500
31-2	76181-73R00-5PK	SCUFF,SIDE SILL REAR,L (BLACK)	1	Rp86.500
32-1	76190-73R10-V6N	TRIM,TAIL END (BEIGE)	1	Rp104.500
32-2	76190-73R10-5PK	TRIM,TAIL END (BLACK)	1	Rp129.000
33	76210-73R00-V6N	TRIM,CTR PILLAR UPPER,R (BEIGE)	1	Rp125.000
34	76142-76G00-000 SUB: 76142B76G00N000	.CLIP,INR	1	Rp9.500
35	76220-73R00-V6N	TRIM,CTR PILLAR UPPER,L (BEIGE)	1	Rp125.000
36	76142-76G00-000 SUB: 76142B76G00N000	.CLIP,INR	1	Rp9.500
37	76279-73R00-000	BRACKET,QTR LWR TRIM ARMREST,R	1	Rp14.000
38	76289-73R00-000	BRACKET,QTR LWR TRIM ARMREST,L	1	Rp14.000
39-1	76310-73R00-V6N	LID,JACK (BEIGE)	1	Rp49.000
39-2	76310-73R00-5PK	LID,JACK (BLACK)	1	Rp64.000
40	02142-0612A-000 SUB: 02142B0612BN000	SCREW	2	Rp4.000
41	02162-0612A-000	SCREW (6X12)	2	Rp11.000
42	02162-0612A-000	SCREW (6X12)	2	Rp11.000
43	76411M79F00-V6N	GRIP, ASSISTANT (BEIGE)	2	Rp15.000
44	09139-06104-000	SCREW (6X26)	4	Rp22.500
45	76291-73R00-000	TRIM,FR DR OPENING	2	Rp186.000
46	76295-73R00-000	TRIM,RR DR OPENING	2	Rp200.500
47	76410M79M02-V6N	GRIP,ASST (BEIGE)	3	Rp75.500
