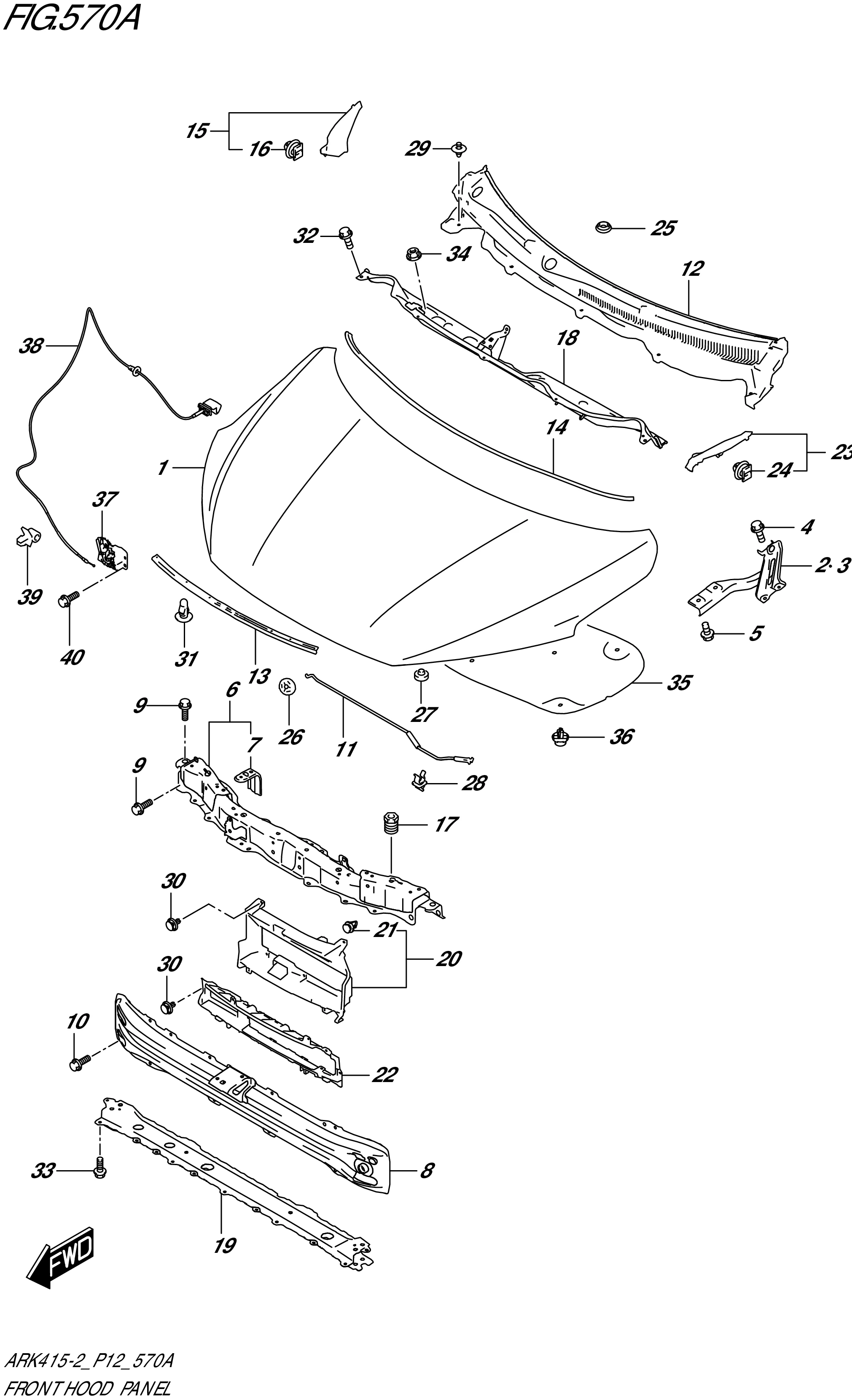

FIG. 570A - FRONT HOOD PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	57300-73R02-000 SUB: 57300-73R00-000	PANEL,FR HOOD	1	Rp1.497.000
2	57410-73R00-000	HINGE,FR HOOD,R	1	Rp79.500
3	57420-73R00-000	HINGE,FR HOOD,L	1	Rp79.500
4	DISCONTINUE SUB: 01550B0612AN000	BOLT (6X12)	4	-
5	02162-0616A-000	SCREW (6X16)	4	Rp3.000
6	58230-73R10-000 SUB: 58230-73R00-000	MEMBER,HOOD LOCK	1	Rp741.000
7	58235-73R00-000	.BRACKET,FR BUMPER UPPER	2	Rp39.000
8	58270-73R00-000	MEMBER,FR BUMPER	1	Rp592.500
9	01550-0820A-000 SUB: 01550B0820AN000	BOLT (8X20)	6	Rp5.500
10	01550-0820A-000 SUB: 01550B0820AN000	BOLT (8X20)	6	Rp5.500
11	72310-73R00-000	STAY,FRONT HOOD	1	Rp45.500
12	72330-73R00-5PK	GARNISH,COWL TOP (BLACK)	1	Rp376.000
13	72361-73R00-000	SEAL,HOOD FRONT	1	Rp17.500
14	72362-73R00-000	SEAL,HOOD REAR	1	Rp43.000
15	72370-73R01-5PK SUB: 72370-73R00-5PK	GARNISH,COWL TOP SIDE,R (BLACK)	1	Rp10.500
16	09409-06342-000 SUB: 09409-06332-000	.CLIP	1	Rp19.500
17	72372-63J00-000 SUB: 72372B63J00N000	CUSHION,FR HOOD SIDE	2	Rp8.000
18-1	72380-73R00-000	PANEL,FR COWL UPPER	1	Rp827.000
18-2	72380-73R40-000	PANEL,FR COWL UPPER	1	Rp884.000
19	72390-73R00-000	CROSSMEMBER,FRONT LOWER	1	Rp751.000
20	72432-73R00-000	COVER,FRONT END UPPER,L	1	Rp118.500
21	09409-10327-000	.CLIP	1	Rp5.000
22	72433-73R00-000	COVER,FRONT END LOWER	1	Rp59.000
23	72470-73R01-5PK SUB: 72470-73R00-5PK	GARNISH,COWL TOP SIDE,L (BLACK)	1	Rp10.500
24	09409-06342-000 SUB: 09409-06332-000	.CLIP	1	Rp19.500
25	09250-10L02-000	CAP (OD:16.2)	2	Rp5.500
26	09308-07014-000	GROMMET,FR HOOD STAY	1	Rp16.500
27	09321-10023-000 SUB: 09321B10023N000	CUSHION (HD:10)	2	Rp6.000
28	09403-07407-000	CLAMP	1	Rp18.000
29	09409M07L02-5PK SUB: 09409-07308-5PK	CLIP (6.5X20.5,BLACK)	5	Rp7.500
30	09409-08010-000	CLIP	15	Rp5.500
31	09409-10304-000	CLIP	9	Rp5.000
32	02162-0612A-000	SCREW (6X12)	5	Rp11.000
33	02162-0612A-000	SCREW (6X12)	2	Rp11.000
34	08316-1006A-000 SUB: 08316B1006AN000	NUT (6X12)	4	Rp2.000
35	72440-73R00-000	SILENCER,FRONT HOOD	1	Rp769.000
36	09409-07340-000	CLIP (6.8X11.5)	10	Rp17.500
37-1	82110-73R00-000	LATCH,HOOD	1	Rp154.000
37-2	82110-73R20-000	LATCH,HOOD	1	Rp326.000
38	82160-73R00-000	CABLE,HOOD LATCH RELEASE	1	Rp66.000
39	09403M04401-000 SUB: 09403-04401-000	CLAMP (D:4.8)	4	Rp4.500
40	02162-0616A-000	SCREW (6X16)	3	Rp3.000
