ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 490B - PEDAL/PEDAL BRACKET (4AT)FIG. 500A - BRAKE MASTER CYLINDER (5MT)FIG. 500C - BRAKE MASTER CYLINDER (4AT:W_ESP)FIG. 510A - ANTI LOCK BRAKE SYSTEM (N_ESP)FIG. 510B - ANTI LOCK BRAKE SYSTEM (W_ESP)FIG. 520A - FRONT WHEEL BRAKE FIG. 530A - REAR WHEEL BRAKE FIG. 542A - PARKING BRAKE FIG. 570A - FRONT HOOD PANEL FIG. 572A - TIRE CARRIER FIG. 580A - FRONT FENDER PANEL (GA)FIG. 580B - FRONT FENDER PANEL (GL)FIG. 580C - FRONT FENDER PANEL (GX)FIG. 590A - FRONT BODY PANEL FIG. 600A - FLOOR PANEL FIG. 640A - SIDE BODY PANEL FIG. 660A - ROOF PANEL (GA)FIG. 717A - FRONT BUMPER FIG. 718A - REAR BUMPER FIG. 721A - INSTRUMENT PANEL UPPER FIG. 722A - INSTRUMENT PANEL LOWER (GA,GL)FIG. 722B - INSTRUMENT PANEL LOWER (GX)FIG. 730A - VENTILATOR (GA,GL)FIG. 730B - VENTILATOR (GX)FIG. 732A - HEATER UNIT (GA,GL)FIG. 732B - HEATER UNIT (GX)FIG. 735A - HEATER BLOWER (GA)(SEE NOTE 1)FIG. 735B - HEATER BLOWER (GL)(SEE NOTE 1)FIG. 735C - HEATER BLOWER (GX)(SEE NOTE 1)FIG. 736A - HEATER DOOR (GA,GL)(SEE NOTE 1)FIG. 736B - HEATER DOOR (GX)(SEE NOTE 1)FIG. 737A - EVAPORATOR UNIT (GA,GL)(SEE NOTE 1)FIG. 737B - EVAPORATOR UNIT (GX)(SEE NOTE 1)FIG. 740A - CONSOLE BOX (GA)FIG. 740B - CONSOLE BOX (GL)741A - FLOOR CARPET (GA)FIG. 741B - FLOOR CARPET (GL)FIG. 741C - FLOOR CARPET (GX)FIG. 745A - INTERIOR TRIM FIG. 755A - FUEL LID OPENER FIG. 757A - ROOF SIDE PAD FIG. 760A - ROOF LINING FIG. 772A - MOLDING FIG. 780A - EMBLEM FIG. 790A - WINDSHIELD FIG. 660B - ROOF PANEL (GL,GX)FIG. 490A - PEDAL/PEDAL BRACKET (5MT)FIG. 500B - BRAKE MASTER CYLINDER (4AT:N_ESP)FIG. 740C - CONSOLE BOX (GX)FIG. 750A - COVER/CAP

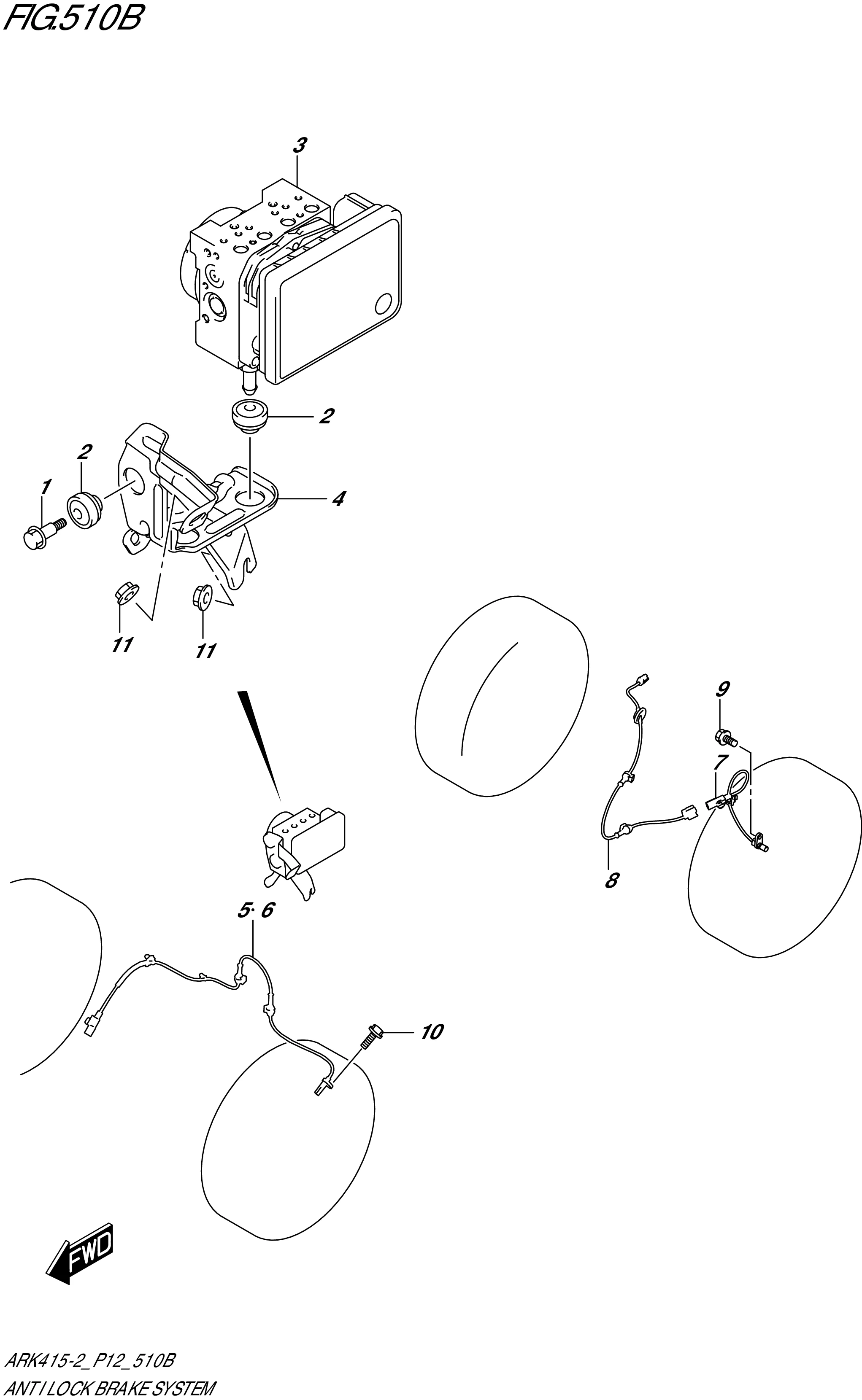

FIG. 510B - ANTI LOCK BRAKE SYSTEM (W_ESP)

FIG. 510B - ANTI LOCK BRAKE SYSTEM (W_ESP)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	56111-75F00-000	BOLT,ACTUATOR MOUNT	1	Rp42.500
2	56112-75F00-000	DAMPER,ACTUATOR MOUNT	3	Rp40.000
3-1	56130-73RA1-000 SUB: 56130-73RA0-000	ACTUATOR ASSY,ESP	1	Rp5.803.000
3-2	56130-73RB1-000 SUB: 56130-73RB0-000	ACTUATOR ASSY,ESP	1	Rp5.671.000
4	56161-68P50-000	BRACKET,ESP ACTUATOR	1	Rp45.500
5	56210-73R00-000	SENSOR,FR WHEEL,R	1	Rp175.000
6	56220-73R00-000	SENSOR,FR WHEEL,L	1	Rp175.000
7	56310-73R00-000	SENSOR,RR WHEEL	2	Rp137.500
8	56315-73R00-000	HARNESS,RR WHEEL SENSOR	2	Rp109.500
9	DISCONTINUE SUB: 01550B0612AN000	BOLT (6X12)	2	-
10	02162-0616A-000	SCREW (6X16)	2	Rp3.000
11	08316-1008A-000 SUB: 08316B1008AN000	NUT	2	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
