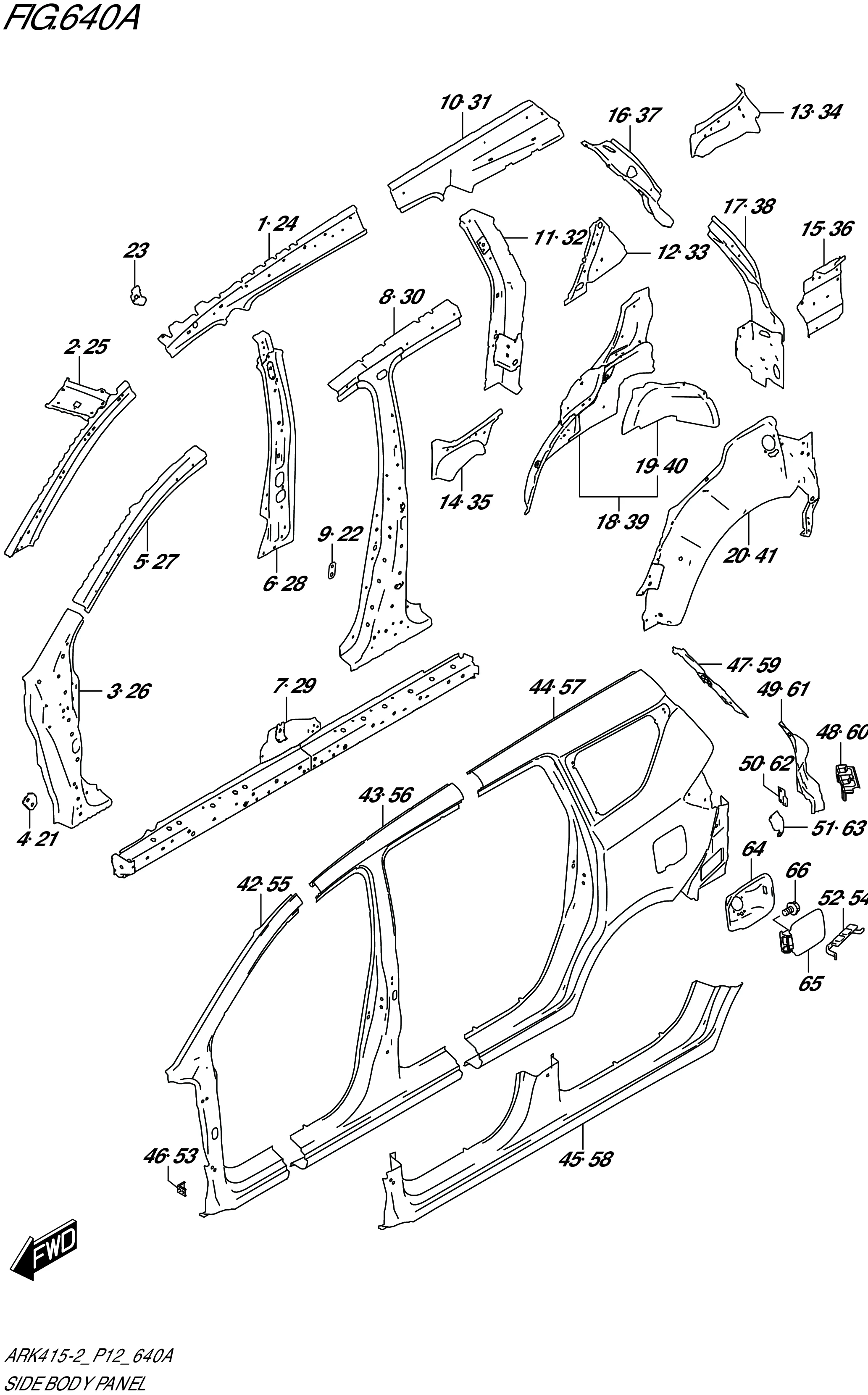

FIG. 640A - SIDE BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	63121-72R00-000	RAIL,ROOF SIDE INNER,R	1	Rp183.000
2	63130-73R00-000	PANEL,FR PLR INR UPPER,R	1	Rp230.500
3	63140-73R00-000	REINF,FR DR HINGE,R	1	Rp999.500
4	63144M76M00-000	RETAINER,FR DR HINGE LWR	2	Rp9.500
5	63151-73R00-000	REINF,FR PILLAR UPPER,R	1	Rp305.500
6	63210-73R00-000	PANEL,CTR PILLAR INNER,R	1	Rp122.000
7	63220-73R00-000	STRENGTH,SIDE SILL,R	1	Rp865.000
8	63230-73R00-000	REINF,CTR PILLAR,R	1	Rp618.500
9	63243M74P00-000	RETAINER,RR DR HINGE	2	Rp8.500
10	63311-72R00-000	PANEL,QTR INNER UPPER,R	1	Rp292.500
11	63320-73R00-000	REINF,QTR INNER FR,R	1	Rp531.500
12	63341-73R00-000	REINF,QTR WINDOW RR,R	1	Rp307.000
13	63342-73R00-000	MEMBER,QTR WINDOW LOWER RR,R	1	Rp108.500
14	63343-73R00-000	MEMBER,QTR WINDOW LOWER FR,R	1	Rp92.000
15	63350-73R00-000	PANEL,QTR INNER LOWER,R	1	Rp111.500
16	63360-73R00-000	EXTENSION,QTR INR UPPER,R	1	Rp250.000
17	63370-73R00-000	PANEL,RR LAMP HOUSE INR,R	1	Rp337.500
18	63410-73R00-000	PANEL,WHEEL HOUSE INNER,R	1	Rp888.500
19	63412-73R00-000	.PANEL,WHEEL HOUSE INNER RR,R	1	Rp867.500
20	63480-73R00-000	PANEL,WHEEL HOUSE OUTER,R	1	Rp422.500
21	63144M76M00-000	RETAINER,FR DR HINGE LWR	2	Rp9.500
22	63243M74P00-000	RETAINER,RR DR HINGE	2	Rp8.500
23	63122-72R00-000	BRACKET,ASSISTANT GRIP	2	Rp11.500
24	63521-72R00-000	RAIL,ROOF SIDE INNER,L	1	Rp183.000
25	63530-73R00-000	PANEL,FR PLR INR UPPER,L	1	Rp231.000
26	63540-73R00-000	REINF,FR DR HINGE,L	1	Rp944.500
27	63551-73R00-000	REINF,FR PILLAR UPPER,L	1	Rp305.500
28	63610-73R00-000	PANEL,CTR PILLAR INNER,L	1	Rp122.000
29	63620-73R00-000	STRENGTH,SIDE SILL,L	1	Rp865.000
30	63630-73R00-000	REINF,CTR PILLAR,L	1	Rp618.500
31	63711-72R00-000	PANEL,QTR INNER UPPER,L	1	Rp292.500
32	63720-73R00-000	REINF,QTR INNER FR,L	1	Rp531.500
33	63741-72R00-000	REINF,QTR WINDOW RR,L	1	Rp307.000
34	63742-73R00-000	MEMBER,QTR WINDOW LOWER RR,L	1	Rp108.500
35	63743-73R00-000	MEMBER,QTR WINDOW LOWER FR,L	1	Rp90.000
36	63751-73R00-000	PANEL,QTR INNER LOWER,L	1	Rp114.000
37	63760-73R00-000	EXTENSION,QTR INR UPPER,L	1	Rp250.000
38	63770-73R00-000	PANEL,RR LAMP HOUSE INR,L	1	Rp337.500
39	63810-73R00-000	PANEL,WHEEL HOUSE INNER,L	1	Rp888.500
40	63812-73R00-000	.PANEL,WHEEL HOUSE INNER RR,L	1	Rp512.500
41	63880-73R00-000	PANEL,WHEEL HOUSE OUTER,L	1	Rp422.500
42	64111-73R00-P11	PANEL,A-PILLAR,R	1	Rp4.191.000
43	64111-73R00-P21	PANEL,B-PILLAR,R	1	Rp4.291.500
44	64111-73R00-P31	PANEL,QUARTER,R	1	Rp4.191.000
45	64111-73R00-P41	PANEL,SIDE SILL,R	1	Rp4.291.500
46	64112-72R00-000	BRACKET,FR FENDER	1	Rp7.500
47	64120-73R00-000	EXTENSION,SIDE BODY OTR,R	1	Rp247.000
48	64122-79M00-000	HOLDER,RR BUMPER RR	1	Rp21.500
49	64131-73R01-000 SUB: 64131-73R00-000	PANEL,RR LAMP HOUSE OUTER,R	1	Rp197.500
50	64132-73R00-000	REINF,SHUT STOPPER,R	1	Rp37.500
51	64151-73R00-000	EXTENSION,RR LAMP HOUSE OTR,R	1	Rp11.500
52	64141-73R10-000 SUB: 64141-73R00-000	COVER,VENTILATOR OUTLET	1	Rp164.000
53	64112-72R00-000	BRACKET,FR FENDER	1	Rp7.500
54	64141-73R10-000 SUB: 64141-73R00-000	COVER,VENTILATOR OUTLET	1	Rp164.000
55	64511-72R00-P11	PANEL,A-PILLAR,L	1	Rp4.191.000
56	64511-72R00-P21	PANEL,B-PILLAR,L	1	Rp4.291.500
57	64511-72R00-P31	PANEL,QUARTER,L	1	Rp4.191.000
58	64511-72R00-P41	PANEL,SIDE SILL,L	1	Rp4.291.500
59	64520-73R00-000	EXTENSION,SIDE BODY OTR,L	1	Rp247.000
60	64122-79M00-000	HOLDER,RR BUMPER RR	1	Rp21.500
61	64531-73R01-000 SUB: 64531-73R00-000	PANEL,RR LAMP HOUSE OUTER,L	1	Rp197.500
62	64532-73R00-000	REINF,SHUT STOPPER,L	1	Rp37.000
63	64551-73R00-000	EXTENSION,RR LAMP HOUSE OTR,L	1	Rp11.500
64	64571-73R00-000	BOX,FUEL FILLER	1	Rp90.000
65	64850-73R00-000	DOOR,FUEL FILLER	1	Rp131.500
66	DISCONTINUE SUB: 01550B0612AN000	BOLT (6X12)	2	-
