All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 570A FRONT HOOD PANEL572A TIRE CARRIER580A FRONT FENDER PANEL (GA,GL)580B FRONT FENDER PANEL (GX,SS)590A FRONT BODY PANEL600A FLOOR PANEL (GA,GL)600B FLOOR PANEL (GX,SS)640A SIDE BODY PANEL660A ROOF PANEL (GA)660B ROOF PANEL (GL,GX,SS)717A FRONT BUMPER (GA,GL,GX)717B FRONT BUMPER (SS)718A REAR BUMPER721A INSTRUMENT PANEL UPPER722A INSTRUMENT PANEL LOWER730A VENTILATOR (GA,GL)730B VENTILATOR (GX,SS)732A HEATER UNIT735A HEATER BLOWER (GA)735B HEATER BLOWER (GL)735C HEATER BLOWER (GX,SS)736A HEATER DOOR (GA)736B HEATER DOOR (GL)736C HEATER DOOR (GX,SS)737A EVAPORATOR UNIT (GA,GL)737B EVAPORATOR UNIT (GX,SS)73AA HEATER CONTROL (GA)73AB HEATER CONTROL (GL,GX,SS)740A CONSOLE BOX (GA,GL)740B CONSOLE BOX (GX,SS)741A FLOOR CARPET745A INTERIOR TRIM750A COVER/CAP755A FUEL LID OPENER757A ROOF SIDE PAD760A ROOF LINING772A MOLDING780A EMBLEM790A WINDSHIELD800A FRONT DOOR PANEL801A REAR DOOR PANEL805A BACK DOOR PANEL (GA)805B BACK DOOR PANEL (GL,GX,SS)810A FRONT DOOR REGULATOR811A REAR DOOR REGULATOR820A FRONT DOOR LOCK (GA)820B FRONT DOOR LOCK (GL)820C FRONT DOOR LOCK (GX,SS)821A REAR DOOR LOCK (GA,GL)821B REAR DOOR LOCK (GX,SS)824A BACK DOOR LOCK835A MIRROR/SUNVISOR (GA)835B MIRROR/SUNVISOR (GL)835C MIRROR/SUNVISOR (GX,SS)841A FRONT SEAT BELT843A 2ND SEAT BELT844A 3RD SEAT BELT848A FRONT LH SEAT (GA)848B FRONT LH SEAT (GL,GX)848C FRONT LH SEAT (SS)849A FRONT RH SEAT (GA,GL)849B FRONT RH SEAT (GX)849C FRONT RH SEAT (SS)854A 2ND RH SEAT (GA)854B 2ND RH SEAT (GL,GX)854C 2ND RH SEAT (SS)855A 2ND LH SEAT (GA,GL,GX)855B 2ND LH SEAT (SS)857A 3RD RH SEAT858A 3RD LH SEAT865A FUEL TANK893A TOOL960A CONDENSER968A FRONT A/C PIPING (GA)968B FRONT A/C PIPING (GL,GX,SS)970A REAR A/C PIPING (GL,GX,SS)972A COOLING UNIT (GL,GX,SS)990A COMPRESSOR (GA,GL)990B COMPRESSOR (GX,SS)

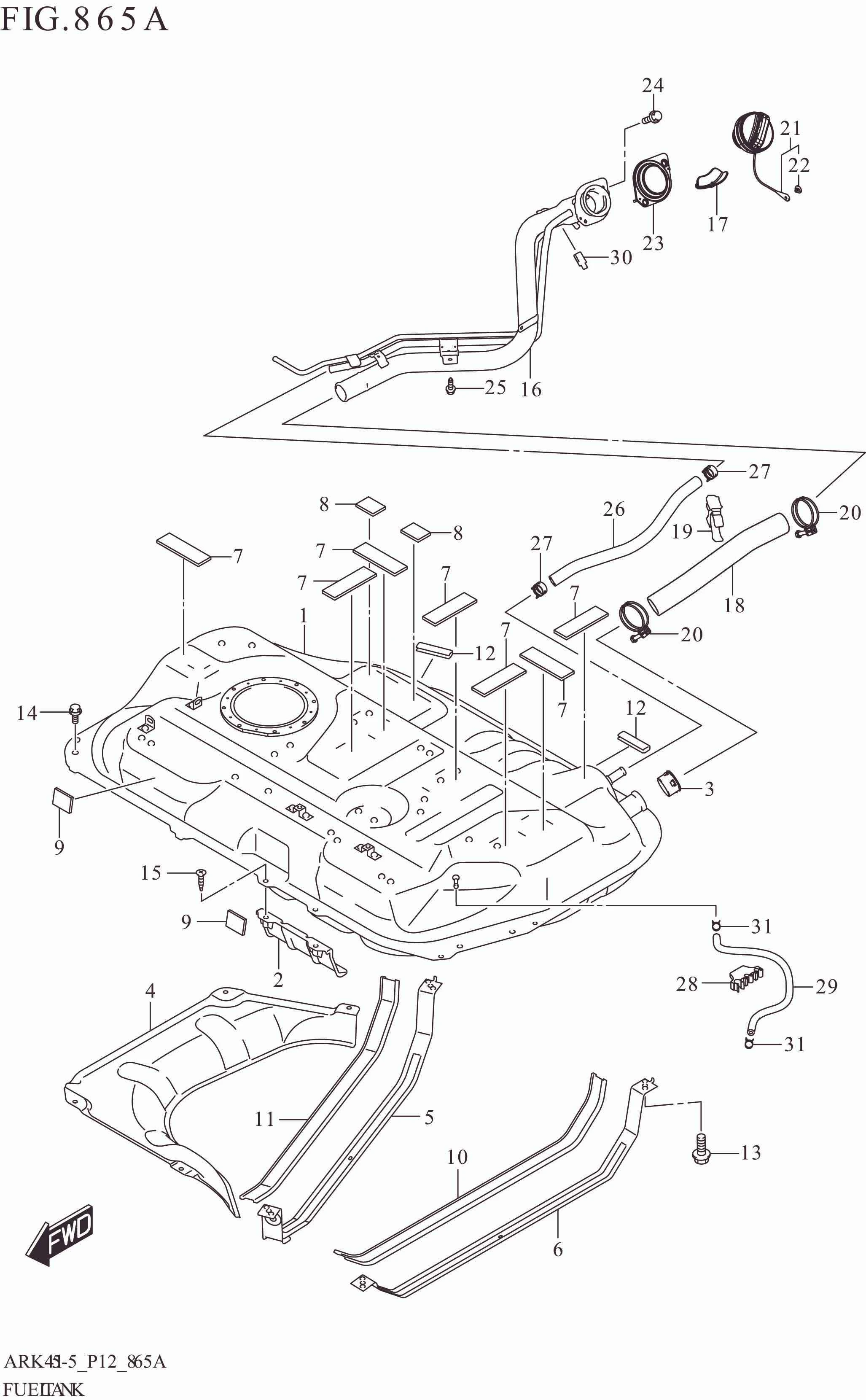

865A FUEL TANK

865A FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 89101-73R50-000 TANK ASSY,FUEL 1 Rp3.590.000
2 89191-60M00-000 COVER,FUEL TANK 1 Rp15.500
3 89280-77A00-000 VALVE,FUEL TANK INLET 1 Rp107.000
4 89311-60M00-000 PROTECTOR,FUEL TANK 1 Rp94.000
5 89360-73R50-000 BELT,TANK FIXER,R 1 Rp96.000
6 89370-73R50-000 BELT,TANK FIXER,L 1 Rp96.000
7 89381-60M00-000 PAD,FUEL TANK 7 Rp15.000
8 89382-60M00-000 PAD,FUEL TANK 2 Rp9.000
9 89383-60M00-000 PAD,FUEL TANK 2 Rp9.000
10 89385M57L00-000 PAD,FUEL TANK BELT 1 Rp67.500
11 89385M60M00-000 PAD,FUEL TANK BELT 1 Rp67.500
12 89445-60G10-000 PROTECTOR,TANK FLANGE 2 Rp10.000
13 09118-10078-000 BOLT,10X30 4 Rp19.000
14 02162-0610A-000 SCREW 4 Rp5.000
15 03541-0616A-000 SCREW 2 Rp13.500
16 89210-73R00-000 NECK,FUEL FILLER 1 Rp640.500
17 89232-57L00-000 COVER,FUEL FILLER NECK 1 Rp40.500
18 89241-73R00-000 HOSE,FUEL TANK FILLER 1 Rp89.500
19 89242M68P00-000 CLAMP,FILLER & BREATHER HOSE 1 Rp12.500
20 89243-81P00-000 CLAMP,FUEL FILLER HOSE 2 Rp57.500
21 89260-77K01-000 CAP ASSY,FUEL FILLER 1 Rp379.500
22 89267-77K00-000 .CLIP,CAP TETHER 1 Rp36.500
23 89285M58J00-000 PACKING,FUEL FILLER 1 Rp13.500
24 09116-05023-000 BOLT (5X20) 2 Rp18.500
25 DISCONTINUE
SUB: 09116-06205-000		 BOLT (6X16) 1 -
26 09355-11188-600 HOSE (11X17.8X600) 1 Rp92.000 L:600->340
27 09401M16L01-000 CLIP (ID:16.5) 2 Rp9.000
28 89433-73R00-000 CLAMP,EVAP HOSE 1 Rp10.000
29 89442-73R00-000 HOSE,UNIT TO TANK EVAP 1 Rp154.500
30 89481-52S00-000 FILTER,AIR SUCTION 1 Rp7.000
31 09401-11004-000 CLIP 2 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
