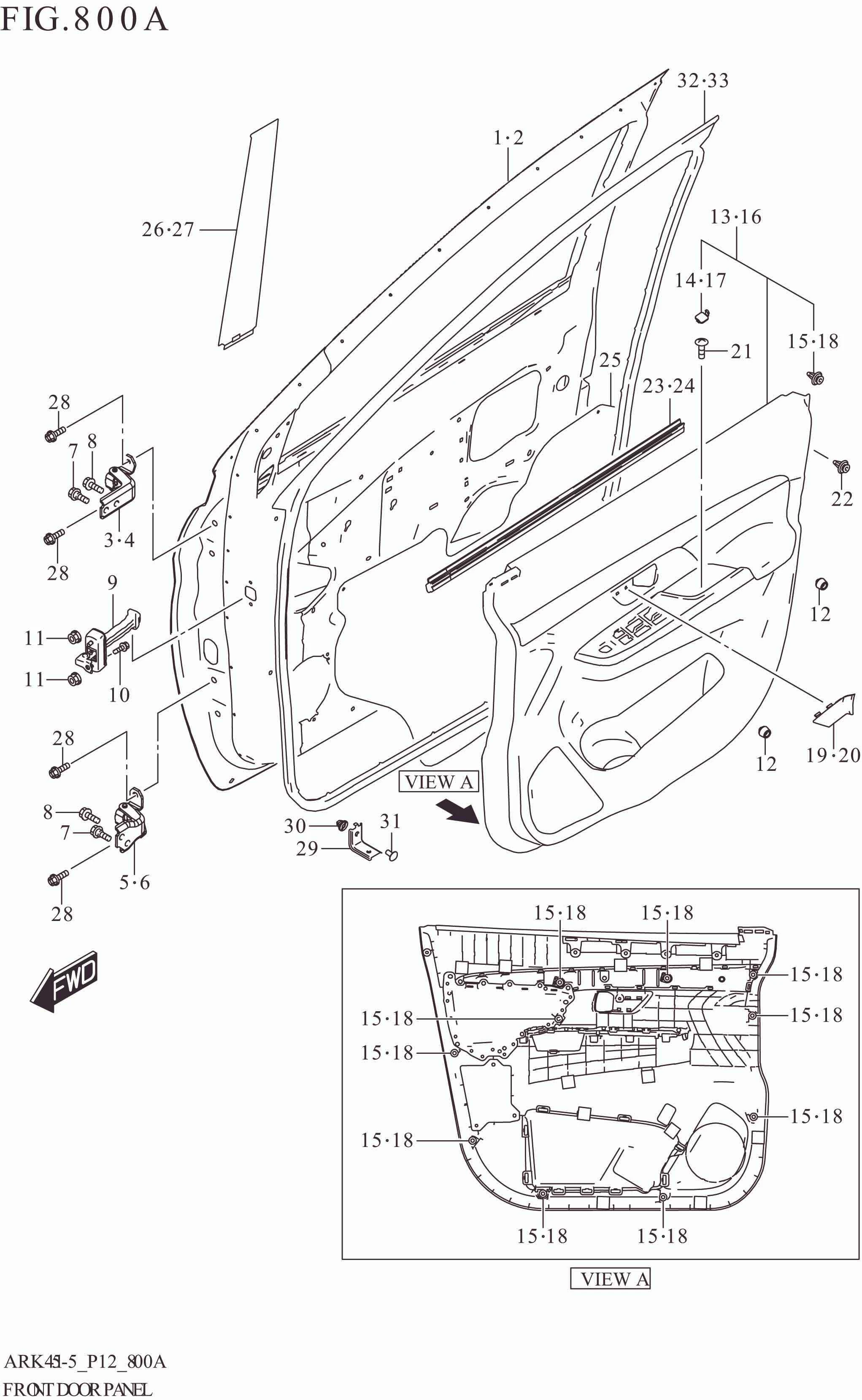

800A FRONT DOOR PANEL

800A FRONT DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 68001-73R02-000 PANEL ASSY,FRONT DOOR,R 1 Rp2.247.000
2 68002-73R02-000 PANEL ASSY,FRONT DOOR,L 1 Rp2.247.000
3 69310M68L00-000 HINGE,FR DR UPR,R 1 Rp82.500
4 69320M68L00-000 HINGE,FR DR UPR,L 1 Rp82.500
5 69330M68L00-000 HINGE,FR DR LWR,R 1 Rp74.000
6 69340M68L00-000 HINGE,FR DR LWR,L 1 Rp74.000
7 09113-08001-000 BOLT (8X20) 4 Rp18.500
8 01551-0820A-000 BOLT 4 Rp17.500
9 DISCONTINUE
SUB: 81830-63RA2-000		 STOP,FRONT DOOR OPEN 2 -
10 09112-08015-000 BOLT (8X25) 2 Rp32.000
11 08316-1006A-000 NUT (6X12) 4 Rp2.000
12 82711-51K00-000 STOPPER,DR 4 Rp39.000
13-1 83710-73R00-5PK TRIM,FR DR,R (BLACK) 1 Rp1.147.000 GA,GL
13-2 83710-73R20-EM2 TRIM,FRONT DOOR,R (BLACK,WOOD) 1 Rp2.024.000 GX
13-3 83710-73R20-EM3 TRIM,FRONT DOOR,R (BLACK) 1 Rp2.024.000 SS
14 83752-80J00-5PK .CAP,SIDE DR INS CASE (BLACK) 1 Rp74.000
15 09409-10327-000 .CLIP 10 Rp5.000
16-3 83720-73R20-EM3 TRIM,FRONT DOOR,L (BLACK) 1 Rp2.071.000 SS
16-1 83720-73R00-5PK TRIM,FR DR,L (BLACK) 1 Rp1.147.000 GA,GL
16-2 83720-73R20-EM2 TRIM,FRONT DOOR,L (BLACK,WOOD) 1 Rp2.024.000 GX
17 83752-80J00-5PK .CAP,SIDE DR INS CASE (BLACK) 1 Rp74.000
18 09409-10327-000 .CLIP 10 Rp5.000
19 83755-74L00-5PK CAP,INSIDE HDL BEZEL,R (BLACK) 1 Rp24.000
20 83756-74L00-5PK CAP,INSIDE HDL BEZEL,L (BLACK) 1 Rp24.000
21 09132-05058-000 SCREW (5X12) 2 Rp14.000
22 09409-06314-5PK CLIP (5.9X20.5,BLACK) 2 Rp3.500
23 83851-73R00-000 WEATHERSTRIP,FR DR INNER,R 1 Rp57.000
24 83861-73R00-000 WEATHERSTRIP,FR DR INNER,L 1 Rp57.000
25 83911-73R00-000 COVER,FR DR SEALING 2 Rp10.000
26-1 83923-73R00-0CB TAPE,FR DR OUTER RR,R (BLACK) 1 Rp34.500 GL,GX,SS BODY COLOR:ZQZ,Z2S,ZYZ,ZLL,WAE,WBD
26-2 83923-73R00-0CB TAPE,FR DR OUTER RR,R (BLACK) 1 Rp34.500 GL,GX,SS BODY COLOR:ZRY,WAP,WAT,WAS,WAY
27-1 83924-73R00-0CB TAPE,FR DR OUTER RR,L (BLACK) 1 Rp34.500 GL,GX,SS BODY COLOR:ZQZ,Z2S,ZYZ,ZLL,WAE,WBD
27-2 83924-73R00-0CB TAPE,FR DR OUTER RR,L (BLACK) 1 Rp34.500 GL,GX,SS BODY COLOR:ZRY,WAP,WAT,WAS,WAY
28 09103-08546-000 BOLT (8X24) 8 Rp26.500
29 83751-67P00-000 BRACKET,DR TRIM 2 Rp11.500
30 71851M70F00-000 NUT (M6) 2 Rp4.000
31 03141M0612A-000 SCREW 2 Rp4.500
32 84641-73R00-000 WEATHERSTRIP,FR DR OPNG,R 1 Rp166.000
33 84651-73R00-000 WEATHERSTRIP,FR DR OPNG,L 1 Rp166.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
