All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 570A FRONT HOOD PANEL572A TIRE CARRIER580A FRONT FENDER PANEL (GA,GL)580B FRONT FENDER PANEL (GX,SS)590A FRONT BODY PANEL600A FLOOR PANEL (GA,GL)600B FLOOR PANEL (GX,SS)640A SIDE BODY PANEL660A ROOF PANEL (GA)660B ROOF PANEL (GL,GX,SS)717A FRONT BUMPER (GA,GL,GX)717B FRONT BUMPER (SS)718A REAR BUMPER721A INSTRUMENT PANEL UPPER722A INSTRUMENT PANEL LOWER730A VENTILATOR (GA,GL)730B VENTILATOR (GX,SS)732A HEATER UNIT735A HEATER BLOWER (GA)735B HEATER BLOWER (GL)735C HEATER BLOWER (GX,SS)736A HEATER DOOR (GA)736B HEATER DOOR (GL)736C HEATER DOOR (GX,SS)737A EVAPORATOR UNIT (GA,GL)737B EVAPORATOR UNIT (GX,SS)73AA HEATER CONTROL (GA)73AB HEATER CONTROL (GL,GX,SS)740A CONSOLE BOX (GA,GL)740B CONSOLE BOX (GX,SS)741A FLOOR CARPET745A INTERIOR TRIM750A COVER/CAP755A FUEL LID OPENER757A ROOF SIDE PAD760A ROOF LINING772A MOLDING780A EMBLEM790A WINDSHIELD800A FRONT DOOR PANEL801A REAR DOOR PANEL805A BACK DOOR PANEL (GA)805B BACK DOOR PANEL (GL,GX,SS)810A FRONT DOOR REGULATOR811A REAR DOOR REGULATOR820A FRONT DOOR LOCK (GA)820B FRONT DOOR LOCK (GL)820C FRONT DOOR LOCK (GX,SS)821A REAR DOOR LOCK (GA,GL)821B REAR DOOR LOCK (GX,SS)824A BACK DOOR LOCK835A MIRROR/SUNVISOR (GA)835B MIRROR/SUNVISOR (GL)835C MIRROR/SUNVISOR (GX,SS)841A FRONT SEAT BELT843A 2ND SEAT BELT844A 3RD SEAT BELT848A FRONT LH SEAT (GA)848B FRONT LH SEAT (GL,GX)848C FRONT LH SEAT (SS)849A FRONT RH SEAT (GA,GL)849B FRONT RH SEAT (GX)849C FRONT RH SEAT (SS)854A 2ND RH SEAT (GA)854B 2ND RH SEAT (GL,GX)854C 2ND RH SEAT (SS)855A 2ND LH SEAT (GA,GL,GX)855B 2ND LH SEAT (SS)857A 3RD RH SEAT858A 3RD LH SEAT865A FUEL TANK893A TOOL960A CONDENSER968A FRONT A/C PIPING (GA)968B FRONT A/C PIPING (GL,GX,SS)970A REAR A/C PIPING (GL,GX,SS)972A COOLING UNIT (GL,GX,SS)990A COMPRESSOR (GA,GL)990B COMPRESSOR (GX,SS)

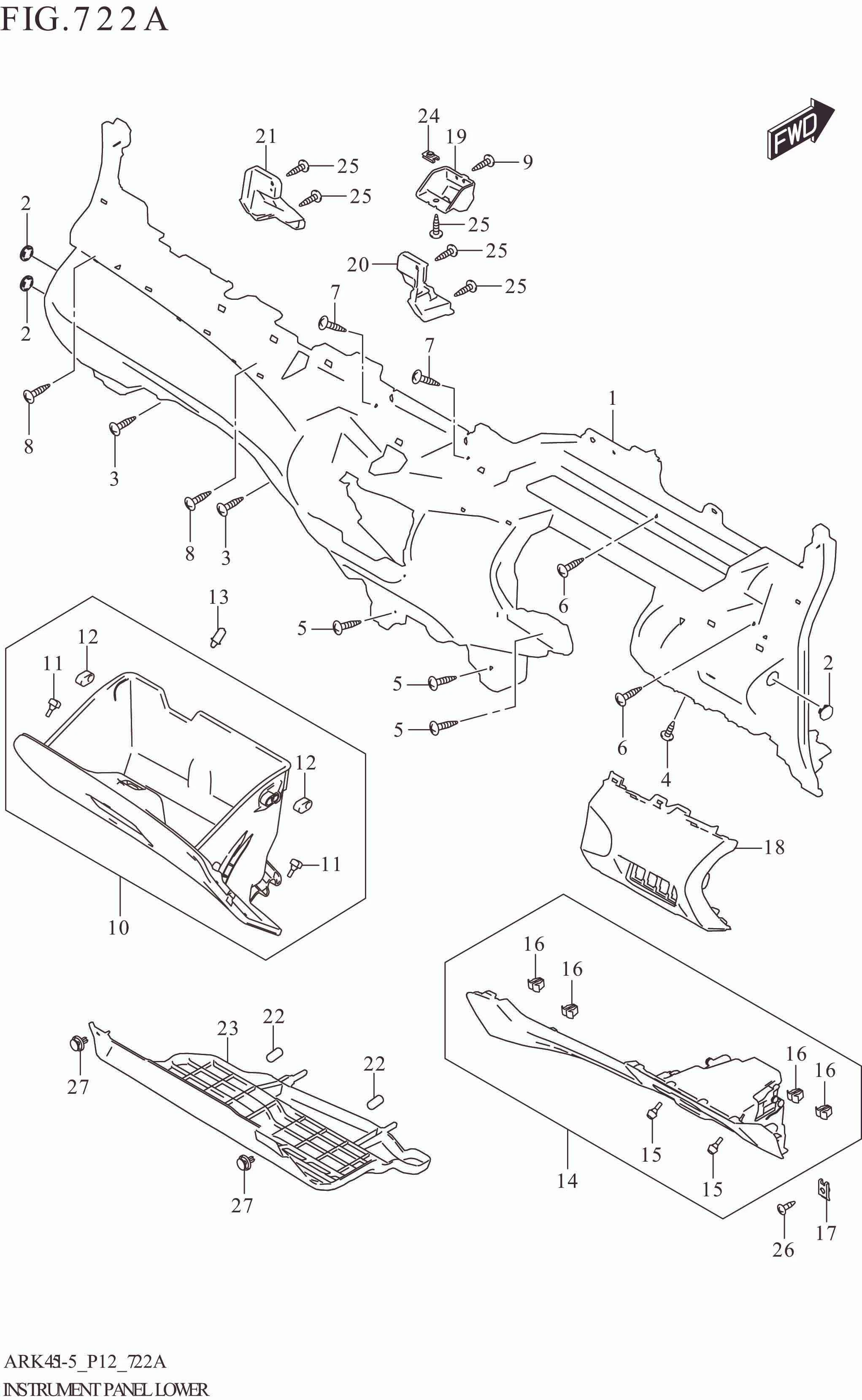

722A INSTRUMENT PANEL LOWER

722A INSTRUMENT PANEL LOWER
No No. Part Description Qty Price Per Pcs Remarks
1 73121-73R00-5PK PANEL,INSTRUMENT MAIN LOWER (BLACK) 1 Rp366.000
2 73871-73H00-5PK CAP,I/P SIDE (BLACK) 3 Rp43.500
3 09132-05049-000 SCREW (5X12) 2 Rp21.000
4 09132-05049-000 SCREW (5X12) 1 Rp21.000
5 09132-05049-000 SCREW (5X12) 3 Rp21.000
6 09132-05049-000 SCREW (5X12) 2 Rp21.000
7 09132-05049-000 SCREW (5X12) 2 Rp21.000
8 09132-05049-000 SCREW (5X12) 2 Rp21.000
9 03541-0516A-000 SCREW 1 Rp3.500
10 73410-73R00-5PK BOX,GLOVE (BLACK) 1 Rp275.500
11 73461-54M00-000 .CUSHION 2 Rp32.000
12 73413M65D00-000 .CUSHION,GLOVE BOX 2 Rp6.500
13 73461-77R00-000 CUSHION,GLOVE BOX 1 Rp33.500
14 73810-73R00-5PK COVER,STRG COLUMN HOLE (BLACK) 1 Rp115.500
15 73413M82C00-000 .CUSHION 2 Rp11.500
16 09409-08351-000 .CLIP 4 Rp21.000
17 09148-05045-000 NUT (M5) 1 Rp4.000
18-1 73833-73R10-5PK BEZEL,I/P SW (BLACK) 1 Rp70.500 GX,SS
18-2 73833-73R00-5PK BEZEL,I/P SW (BLACK) 1 Rp70.500 GA,GL
19 73841-73R00-000 COVER,GLOVE BOX STRIKER 1 Rp14.000
20 73863-73R00-5PK COVER,GLOVE BOX INSIDE (BLACK) 1 Rp8.000
21 73864-73R00-5PK COVER,GLOVE BOX OUTSIDE (BLACK) 1 Rp8.000
22 73132-57L00-000 CAP,I/P PIN 2 Rp38.000
23 73891-73R00-000 COVER,I/P UNDER ASST 1 Rp43.500
24 09148-05045-000 NUT (M5) 1 Rp4.000
25 03541-0516A-000 SCREW 5 Rp3.500
26 03541-0516A-000 SCREW 1 Rp3.500
27 09409-07340-000 CLIP (6.8X11.5) 2 Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
