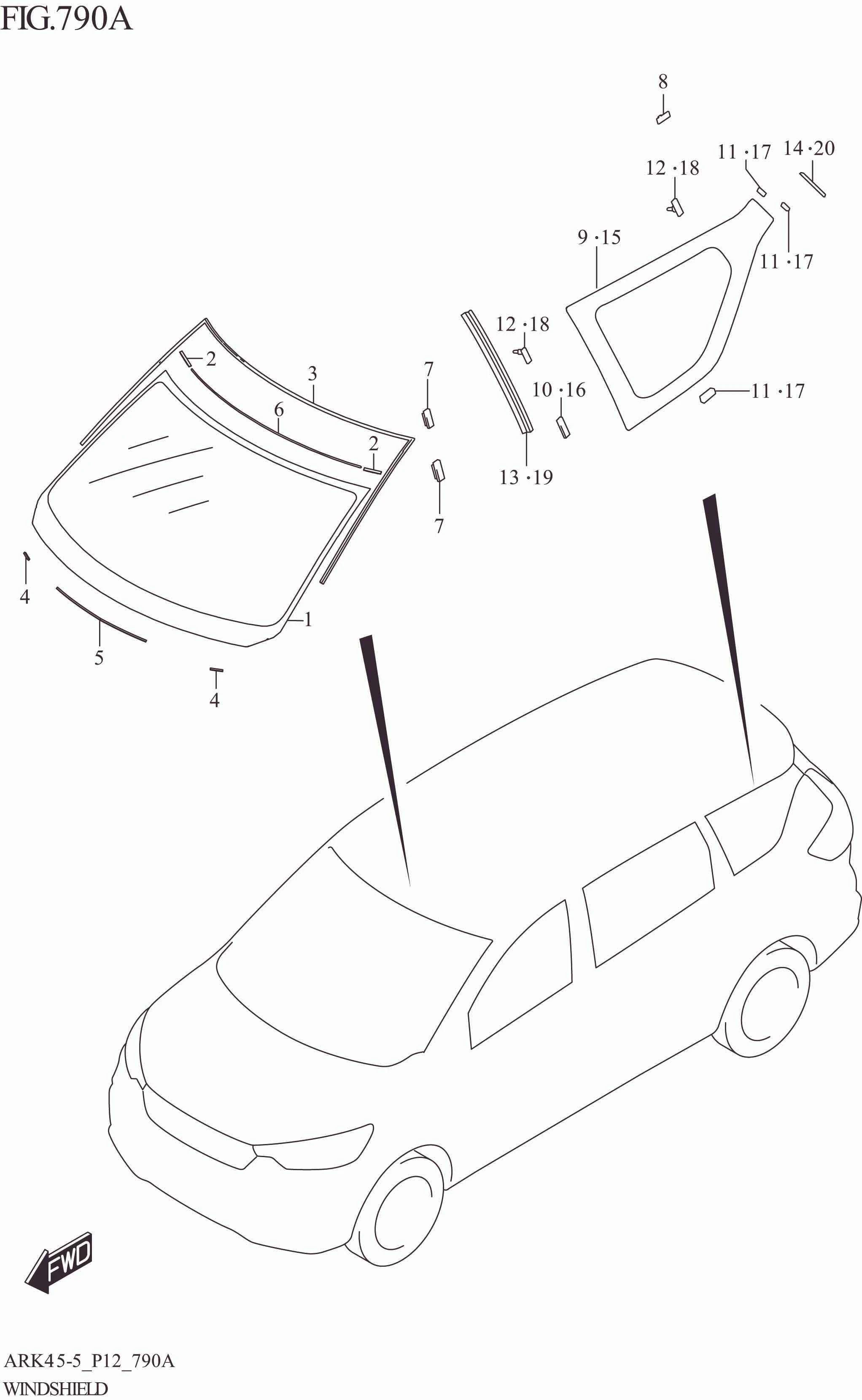

790A WINDSHIELD

No	No. Part	Description	Qty	Price Per Pcs
1	84511-73R00-000	GLASS,WINDSHIELD	1	Rp985.000
2	84512-79M00-000	FASTENER,GLASS UPPER	2	Rp30.000
3	84611-73R02-000	MOLDING,WINDSHIELD	1	Rp140.500
4	84616-55R00-000	SPACER,WINDSHIELD GLASS	2	Rp7.500
5	84617-55R00-000	SPACER,WINDSHIELD GLASS	1	Rp16.500
6	84618-73R00-000	DAM,WINDSHIELD ADHESIVE	1	Rp60.000
7	84514-65D00-000	FEMALE,GLASS FASTENER NO.1	4	Rp41.000
8	84515-65D00-000	FEMALE,GLASS FASTENER NO.2	2	Rp45.500
9	84581-73R00-000	GLASS,QTR WINDOW,R	1	Rp282.500
10	84513-76F00-000	MALE,GLASS FASTENER NO.2	1	Rp38.500
11	84616-80F00-000	SPACER,GLASS (L:585)	3	Rp70.000
12	84572-74G00-000	MALE,GLASS FASTENER NO.1	2	Rp42.500
13	84582-73R00-000	MOLDING,QTR WINDOW FR,R	1	Rp43.500
14	84583-73R00-000	MOLDING,QTR WINDOW RR,R	1	Rp18.000
15	84591-73R00-000	GLASS,QTR WINDOW,L	1	Rp282.500
16	84513-76F00-000	MALE,GLASS FASTENER NO.2	1	Rp38.500
17	84616-80F00-000	SPACER,GLASS (L:585)	3	Rp70.000
18	84572-74G00-000	MALE,GLASS FASTENER NO.1	2	Rp42.500
19	84592-73R00-000	MOLDING,QTR WINDOW FR,L	1	Rp43.500
20	84593-73R00-000	MOLDING,QTR WINDOW RR,L	1	Rp17.500
