All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL 570A FRONT HOOD PANEL 572A TIRE CARRIER 580A FRONT FENDER PANEL (GA,GL)580B FRONT FENDER PANEL (GX,SS)590A FRONT BODY PANEL 600A FLOOR PANEL (GA,GL)600B FLOOR PANEL (GX,SS)640A SIDE BODY PANEL 660A ROOF PANEL (GA)660B ROOF PANEL (GL,GX,SS)717A FRONT BUMPER (GA,GL,GX)717B FRONT BUMPER (SS)718A REAR BUMPER 721A INSTRUMENT PANEL UPPER 722A INSTRUMENT PANEL LOWER 730A VENTILATOR (GA,GL)730B VENTILATOR (GX,SS)732A HEATER UNIT 735A HEATER BLOWER (GA)735B HEATER BLOWER (GL)735C HEATER BLOWER (GX,SS)736A HEATER DOOR (GA)736B HEATER DOOR (GL)736C HEATER DOOR (GX,SS)737A EVAPORATOR UNIT (GA,GL)737B EVAPORATOR UNIT (GX,SS)73AA HEATER CONTROL (GA)73AB HEATER CONTROL (GL,GX,SS)740A CONSOLE BOX (GA,GL)740B CONSOLE BOX (GX,SS)741A FLOOR CARPET 745A INTERIOR TRIM 750A COVER/CAP 755A FUEL LID OPENER 757A ROOF SIDE PAD 760A ROOF LINING 772A MOLDING 780A EMBLEM 790A WINDSHIELD 800A FRONT DOOR PANEL 801A REAR DOOR PANEL 805A BACK DOOR PANEL (GA)805B BACK DOOR PANEL (GL,GX,SS)810A FRONT DOOR REGULATOR 811A REAR DOOR REGULATOR 820A FRONT DOOR LOCK (GA)820B FRONT DOOR LOCK (GL)820C FRONT DOOR LOCK (GX,SS)821A REAR DOOR LOCK (GA,GL)821B REAR DOOR LOCK (GX,SS)824A BACK DOOR LOCK 835A MIRROR/SUNVISOR (GA)835B MIRROR/SUNVISOR (GL)835C MIRROR/SUNVISOR (GX,SS)841A FRONT SEAT BELT 843A 2ND SEAT BELT 844A 3RD SEAT BELT 848A FRONT LH SEAT (GA)848B FRONT LH SEAT (GL,GX)848C FRONT LH SEAT (SS)849A FRONT RH SEAT (GA,GL)849B FRONT RH SEAT (GX)849C FRONT RH SEAT (SS)854A 2ND RH SEAT (GA)854B 2ND RH SEAT (GL,GX)854C 2ND RH SEAT (SS)855A 2ND LH SEAT (GA,GL,GX)855B 2ND LH SEAT (SS)857A 3RD RH SEAT 858A 3RD LH SEAT 865A FUEL TANK 893A TOOL 960A CONDENSER 968A FRONT A/C PIPING (GA)968B FRONT A/C PIPING (GL,GX,SS)970A REAR A/C PIPING (GL,GX,SS)972A COOLING UNIT (GL,GX,SS)990A COMPRESSOR (GA,GL)990B COMPRESSOR (GX,SS)

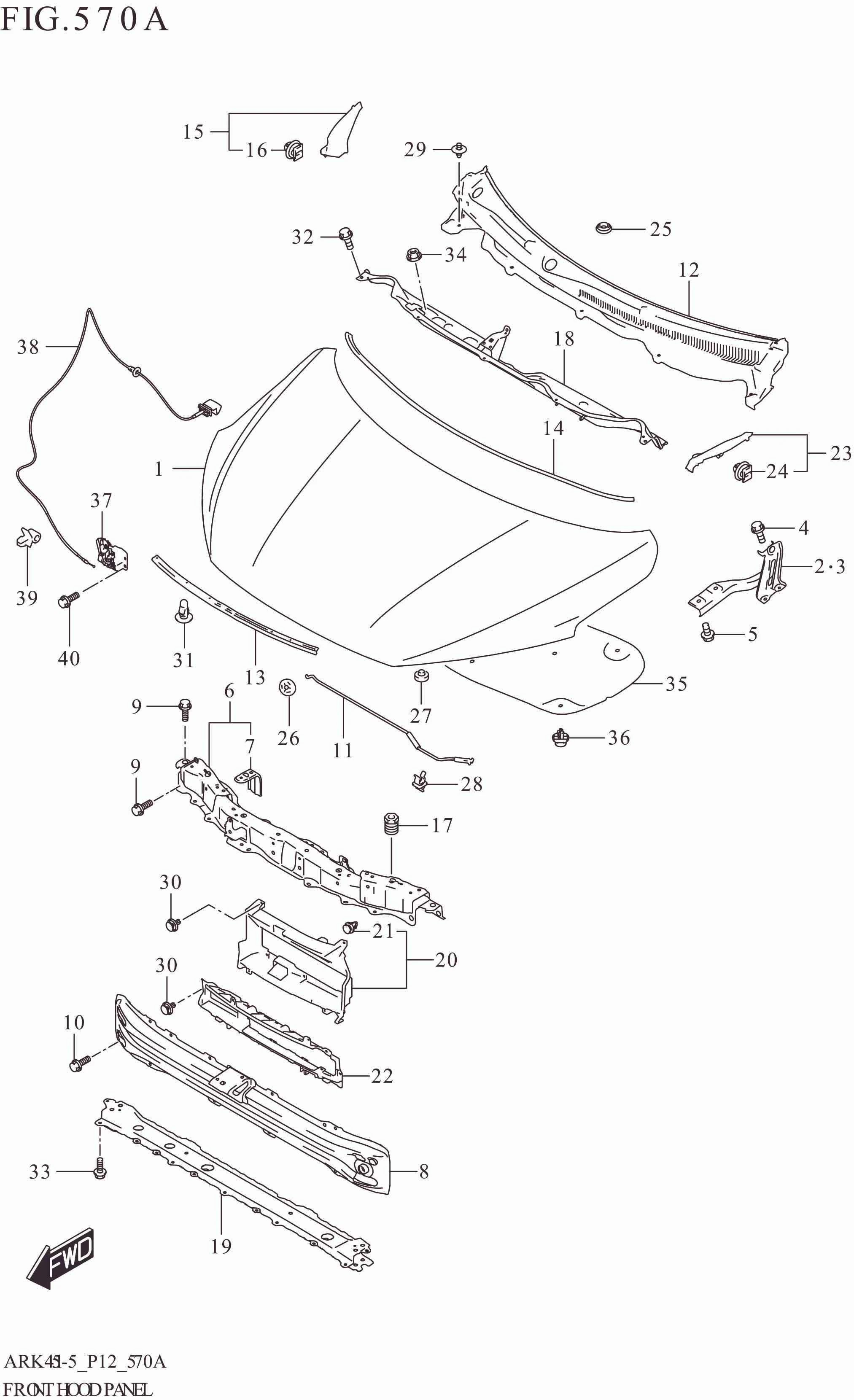

570A FRONT HOOD PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	57300-73R02-000	PANEL,FRONT HOOD	1	Rp1.497.000
2	57410-73R00-000	HINGE,FR HOOD,R	1	Rp79.500
3	57420-73R00-000	HINGE,FR HOOD,L	1	Rp79.500
4	01550-0612A-000	BOLT (6X12)	4	Rp3.500
5	02162-0616A-000	SCREW (6X16)	4	Rp3.000
6	58230-73R10-000	MEMBER,HOOD LOCK	1	Rp741.000
7	58235-73R00-000	.BRACKET,FR BUMPER UPPER	2	Rp39.000
8	58270-73R00-000	MEMBER,FR BUMPER	1	Rp592.500
9	01550-0820A-000	BOLT (8X20)	6	Rp5.500
10	01550-0820A-000	BOLT (8X20)	6	Rp5.500
11	72310-73R00-000	STAY,FRONT HOOD	1	Rp45.500
12	72330-73R00-5PK	GARNISH,COWL TOP (BLACK)	1	Rp376.000
13	72361-73R00-000	SEAL,HOOD FRONT	1	Rp17.500
14	72362-73R00-000	SEAL,HOOD REAR	1	Rp43.000
15	72370-73R01-5PK	GARNISH,COWL TOP SIDE,R (BLACK)	1	Rp10.500
16	09409-06342-000	.CLIP	1	Rp19.500
17	72372-63J00-000	CUSHION,FR HOOD SIDE	2	Rp8.000
18-1	72380-73R00-000	PANEL,FR COWL UPPER	1	Rp827.000	GX,SS
18-2	72380-73R40-000	PANEL,FR COWL UPPER	1	Rp884.000	GA,GL
19	72390-73R00-000	CROSSMEMBER,FRONT LOWER	1	Rp751.000
20	72432-73R00-000	COVER,FRONT END UPPER,L	1	Rp118.500
21	09409-10327-000	.CLIP	1	Rp5.000
22	72433-73R00-000	COVER,FRONT END LOWER	1	Rp59.000
23	72470-73R01-5PK	GARNISH,COWL TOP SIDE,L (BLACK)	1	Rp10.500
24	09409-06342-000	.CLIP	1	Rp19.500
25	09250-10L02-000	CAP (OD:16.2)	2	Rp5.500
26	09308-07014-000	GROMMET,FR HOOD STAY	1	Rp16.500
27	09321-10023-000	CUSHION (HD:10)	2	Rp6.000
28	09403-07407-000	CLAMP	1	Rp18.000
29	09409M07L02-5PK	CLIP (6.5X20.5,BLACK)	5	Rp7.500
30	09409-08010-000	CLIP	15	Rp5.500
31	09409-10304-000	CLIP	9	Rp5.000
32	02162-0612A-000	SCREW (6X12)	5	Rp11.000
33	02162-0612A-000	SCREW (6X12)	2	Rp11.000
34	08316-1006A-000	NUT (6X12)	4	Rp2.000
35	72440-73R00-000	SILENCER,FRONT HOOD	1	Rp769.000
36	09409-07340-000	CLIP (6.8X11.5)	10	Rp17.500
37-1	82110-73R00-000	LATCH,HOOD	1	Rp154.000	GA
37-2	82110-73R20-000	LATCH,HOOD	1	Rp326.000	GL,GX,SS
38	82160-73R00-000	CABLE,HOOD LATCH RELEASE	1	Rp66.000
39	09403M04401-000	CLAMP (D:4.8)	4	Rp4.500
40	02162-0616A-000	SCREW (6X16)	3	Rp3.000
