< KEMBALI KE THUMBNAIL 570A FRONT HOOD PANEL 572A TIRE CARRIER 580A FRONT FENDER PANEL (GA,GL)580B FRONT FENDER PANEL (GX,SS)590A FRONT BODY PANEL 600A FLOOR PANEL (GA,GL)600B FLOOR PANEL (GX,SS)640A SIDE BODY PANEL 660A ROOF PANEL (GA)660B ROOF PANEL (GL,GX,SS)717A FRONT BUMPER (GA,GL,GX)717B FRONT BUMPER (SS)718A REAR BUMPER 721A INSTRUMENT PANEL UPPER 722A INSTRUMENT PANEL LOWER 730A VENTILATOR (GA,GL)730B VENTILATOR (GX,SS)732A HEATER UNIT 735A HEATER BLOWER (GA)735B HEATER BLOWER (GL)735C HEATER BLOWER (GX,SS)736A HEATER DOOR (GA)736B HEATER DOOR (GL)736C HEATER DOOR (GX,SS)737A EVAPORATOR UNIT (GA,GL)737B EVAPORATOR UNIT (GX,SS)73AA HEATER CONTROL (GA)73AB HEATER CONTROL (GL,GX,SS)740A CONSOLE BOX (GA,GL)740B CONSOLE BOX (GX,SS)741A FLOOR CARPET 745A INTERIOR TRIM 750A COVER/CAP 755A FUEL LID OPENER 757A ROOF SIDE PAD 760A ROOF LINING 772A MOLDING 780A EMBLEM 790A WINDSHIELD 800A FRONT DOOR PANEL 801A REAR DOOR PANEL 805A BACK DOOR PANEL (GA)805B BACK DOOR PANEL (GL,GX,SS)810A FRONT DOOR REGULATOR 811A REAR DOOR REGULATOR 820A FRONT DOOR LOCK (GA)820B FRONT DOOR LOCK (GL)820C FRONT DOOR LOCK (GX,SS)821A REAR DOOR LOCK (GA,GL)821B REAR DOOR LOCK (GX,SS)824A BACK DOOR LOCK 835A MIRROR/SUNVISOR (GA)835B MIRROR/SUNVISOR (GL)835C MIRROR/SUNVISOR (GX,SS)841A FRONT SEAT BELT 843A 2ND SEAT BELT 844A 3RD SEAT BELT 848A FRONT LH SEAT (GA)848B FRONT LH SEAT (GL,GX)848C FRONT LH SEAT (SS)849A FRONT RH SEAT (GA,GL)849B FRONT RH SEAT (GX)849C FRONT RH SEAT (SS)854A 2ND RH SEAT (GA)854B 2ND RH SEAT (GL,GX)854C 2ND RH SEAT (SS)855A 2ND LH SEAT (GA,GL,GX)855B 2ND LH SEAT (SS)857A 3RD RH SEAT 858A 3RD LH SEAT 865A FUEL TANK 893A TOOL 960A CONDENSER 968A FRONT A/C PIPING (GA)968B FRONT A/C PIPING (GL,GX,SS)970A REAR A/C PIPING (GL,GX,SS)972A COOLING UNIT (GL,GX,SS)990A COMPRESSOR (GA,GL)990B COMPRESSOR (GX,SS)

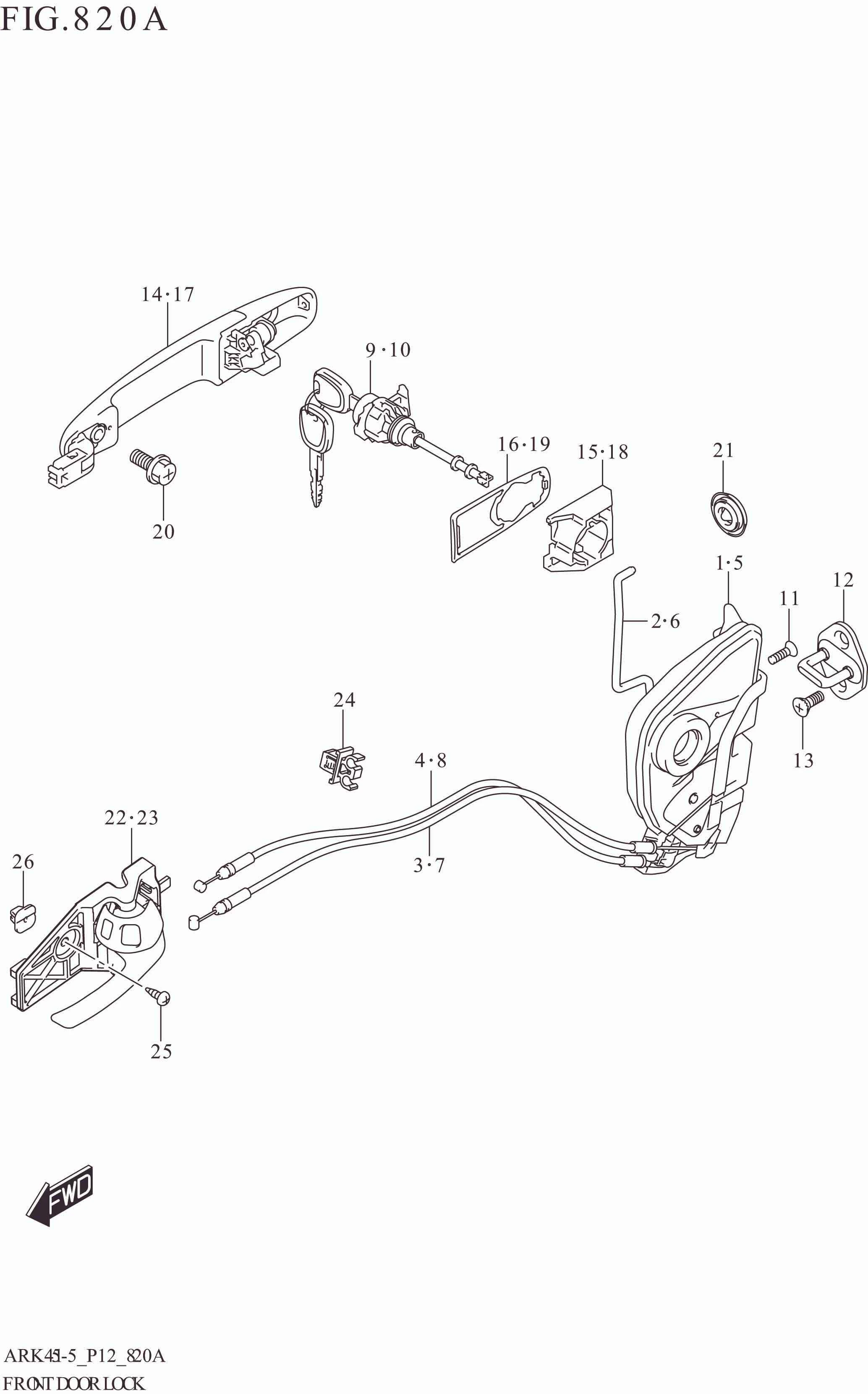

820A FRONT DOOR LOCK (GA)

No	No. Part	Description	Qty	Price Per Pcs
1	82210-55T10-000	LATCH,FRONT DOOR,R	1	Rp340.500
2	82221-73R00-000	ROD,FRONT DOOR OUT HANDLE,R	1	Rp14.500
3	82223-73R00-000	CABLE,FR DR INSIDE HANDLE	1	Rp19.000
4	82224-73R00-000	CABLE,FR DR INSIDE LOCK	1	Rp21.500
5	82250-76M23-000	LATCH,FRONT DOOR,L	1	Rp325.500
6	82261-73R00-000	ROD,FRONT DOOR OUT HANDLE,L	1	Rp17.000
7	82223-73R00-000	CABLE,FR DR INSIDE HANDLE	1	Rp19.000
8	82224-73R00-000	CABLE,FR DR INSIDE LOCK	1	Rp21.500
9	82270-73860-000	CYLINDER SET,FR DR LATCH,R	1	Rp337.500
10	82280-73860-000	CYLINDER SET,FR DR LATCH,L	1	Rp336.000
11	09137-06032-000	SCREW (6X18)	6	Rp16.500
12	82610-67LA0-000	STRIKER,DOOR LATCH	2	Rp21.500
13	09139-08025-000	SCREW (8X20)	4	Rp23.000
14	82811-73R21-000 SUB: 82811-73R20-000	HANDLE,FRONT DOOR OUT,R (BLANK)	1	Rp128.000
15	82812-73R01-000 SUB: 82812-73R00-000	BRACKET,FR DR OUT HANDLE,R	1	Rp12.500
16	82813-73R00-000	PAD,FRONT DOOR OUT HANDLE	1	Rp6.500
17	82821-73R21-000 SUB: 82821-73R20-000	HANDLE,FRONT DOOR OUT,L (BLANK)	1	Rp128.000
18	82822-73R01-000 SUB: 82822-73R00-000	BRACKET,FR DR OUT HANDLE,L	1	Rp12.500
19	82813-73R00-000	PAD,FRONT DOOR OUT HANDLE	1	Rp6.500
20	09116-06168-000	BOLT (6X12)	4	Rp15.000
21	09250-25007-000	CAP (OD:25)	2	Rp10.500
22	83110M74L00-5PK	HANDLE,SIDE DR INSIDE,R (BLACK)	1	Rp42.500
23	83130M74L00-5PK	HANDLE,SIDE DR INSIDE,L (BLACK)	1	Rp42.500
24	83271M50E00-000	CLIP,DR HANDLE ROD	2	Rp6.500
25	09132-05058-000	SCREW (5X12)	2	Rp14.000
26	09148-05031-000	NUT (M5)	2	Rp18.000
