All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 570A FRONT HOOD PANEL572A TIRE CARRIER580A FRONT FENDER PANEL (GA,GL)580B FRONT FENDER PANEL (GX,SS)590A FRONT BODY PANEL600A FLOOR PANEL (GA,GL)600B FLOOR PANEL (GX,SS)640A SIDE BODY PANEL660A ROOF PANEL (GA)660B ROOF PANEL (GL,GX,SS)717A FRONT BUMPER (GA,GL,GX)717B FRONT BUMPER (SS)718A REAR BUMPER721A INSTRUMENT PANEL UPPER722A INSTRUMENT PANEL LOWER730A VENTILATOR (GA,GL)730B VENTILATOR (GX,SS)732A HEATER UNIT735A HEATER BLOWER (GA)735B HEATER BLOWER (GL)735C HEATER BLOWER (GX,SS)736A HEATER DOOR (GA)736B HEATER DOOR (GL)736C HEATER DOOR (GX,SS)737A EVAPORATOR UNIT (GA,GL)737B EVAPORATOR UNIT (GX,SS)73AA HEATER CONTROL (GA)73AB HEATER CONTROL (GL,GX,SS)740A CONSOLE BOX (GA,GL)740B CONSOLE BOX (GX,SS)741A FLOOR CARPET745A INTERIOR TRIM750A COVER/CAP755A FUEL LID OPENER757A ROOF SIDE PAD760A ROOF LINING772A MOLDING780A EMBLEM790A WINDSHIELD800A FRONT DOOR PANEL801A REAR DOOR PANEL805A BACK DOOR PANEL (GA)805B BACK DOOR PANEL (GL,GX,SS)810A FRONT DOOR REGULATOR811A REAR DOOR REGULATOR820A FRONT DOOR LOCK (GA)820B FRONT DOOR LOCK (GL)820C FRONT DOOR LOCK (GX,SS)821A REAR DOOR LOCK (GA,GL)821B REAR DOOR LOCK (GX,SS)824A BACK DOOR LOCK835A MIRROR/SUNVISOR (GA)835B MIRROR/SUNVISOR (GL)835C MIRROR/SUNVISOR (GX,SS)841A FRONT SEAT BELT843A 2ND SEAT BELT844A 3RD SEAT BELT848A FRONT LH SEAT (GA)848B FRONT LH SEAT (GL,GX)848C FRONT LH SEAT (SS)849A FRONT RH SEAT (GA,GL)849B FRONT RH SEAT (GX)849C FRONT RH SEAT (SS)854A 2ND RH SEAT (GA)854B 2ND RH SEAT (GL,GX)854C 2ND RH SEAT (SS)855A 2ND LH SEAT (GA,GL,GX)855B 2ND LH SEAT (SS)857A 3RD RH SEAT858A 3RD LH SEAT865A FUEL TANK893A TOOL960A CONDENSER968A FRONT A/C PIPING (GA)968B FRONT A/C PIPING (GL,GX,SS)970A REAR A/C PIPING (GL,GX,SS)972A COOLING UNIT (GL,GX,SS)990A COMPRESSOR (GA,GL)990B COMPRESSOR (GX,SS)

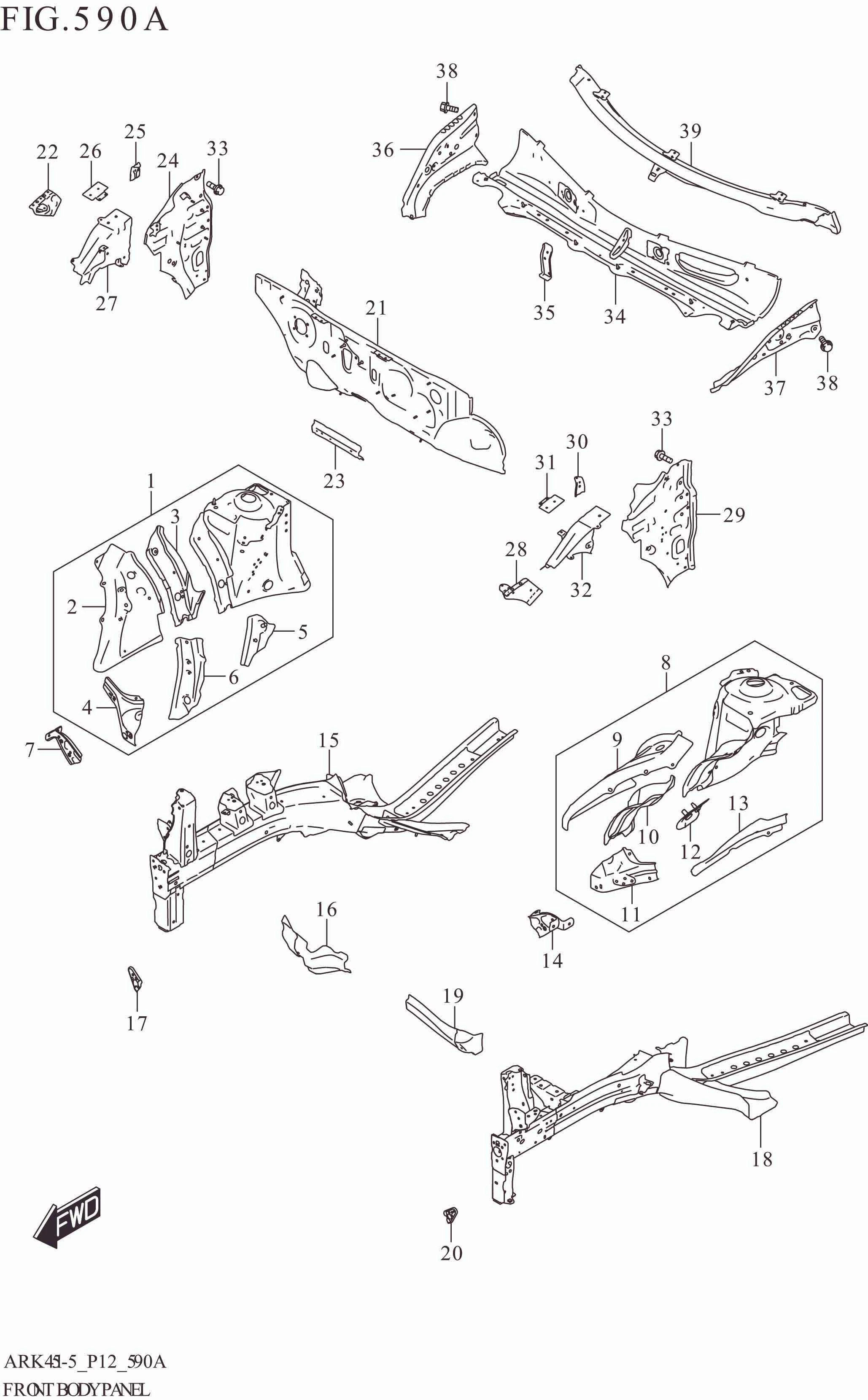

590A FRONT BODY PANEL

590A FRONT BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 58310-73R00-000 PANEL,FENDER APRON,R 1 Rp717.500
2 58313-73R00-000 .EXTENSION,APRON FR,R 1 Rp99.000
3 58314-68P00-000 .MEMBER,FENDER APRON,R 1 Rp56.500
4 58315-55R00-000 .EXTENSION,FR FNDR LWR BRKT,R 1 Rp45.500
5 58318-73R00-000 .PATCH,APRON FR EXTENSION,R 1 Rp27.000
6 58321-73R00-000 .MEMBER,APRON FR EXTENSION,R 1 Rp69.000
7 58320-73R00-000 BRACKET,FR FENDER LOWER,R 1 Rp40.500
8 58410-73R01-000 PANEL,FENDER APRON,L 1 Rp717.500
9 58413-73R00-000 .EXTENSION,APRON FR,L 1 Rp111.000
10 58414-68P00-000 .MEMBER,FENDER APRON,L 1 Rp58.500
11 58415-55R00-000 .EXTENSION,FR FNDR LWR BRKT,L 1 Rp45.500
12 58418-73R00-000 .PATCH,APRON FR EXTENSION,L 1 Rp25.000
13 58421-73R00-000 .MEMBER,APRON FR EXTENSION,L 1 Rp69.000
14 58420-73R00-000 BRACKET,FR FENDER LOWER,L 1 Rp40.500
15 58600-73R00-000 MEMBER,FR SIDE,R 1 Rp2.408.500
16 58650M68P00-000 CROSSMEMBER,DASH UPR,R 1 Rp65.000
17 58671-55R00-000 BRACKET,HEAD LAMP,R 1 Rp30.000
18 58700-73R00-000 MEMBER,FR SIDE,L 1 Rp2.408.500
19 58750M68P00-000 CROSSMEMBER,DASH UPR,L 1 Rp65.000
20 58771-55R00-000 BRACKET,HEAD LAMP,L 1 Rp29.500
21-1 59100-73RA0-000 PANEL,DASH 1 Rp1.371.000 5MT
21-2 59100-73RC0-000 PANEL,DASH 1 Rp1.358.000 4AT
22 59210-73R10-000 BRACKET,FR FENDER FR,R 1 Rp58.000
23 59221-68P10-000 CROSSMEMBER,DASH UPR CTR 1 Rp97.500
24 59230-73R00-000 PANEL,DASH SIDE,R 1 Rp315.000
25 59234-73R00-000 BRACKET,FR FENDER RR,R 1 Rp10.000
26 59235-73R00-000 PATCH,FR HOOD HINGE,R 1 Rp14.500
27 59240-73R00-000 PANEL,DASH SIDE FR,R 1 Rp154.000
28 59260-73R10-000 BRACKET,FR FENDER FR,L 1 Rp58.000
29 59280-73R00-000 PANEL,DASH SIDE,L 1 Rp315.000
30 59284-73R00-000 BRACKET,FR FENDER RR,L 1 Rp10.000
31 59285-73R00-000 PATCH,FR HOOD HINGE,L 1 Rp14.500
32 59290-73R00-000 PANEL,DASH SIDE FR,L 1 Rp214.000
33 01550-0612A-000 BOLT (6X12) 2 Rp3.500
34 59300-73R10-000 PANEL,COWL UPPER 1 Rp567.500
35 59313-73R00-000 BRACE,COWL UPPER 1 Rp33.000
36 59411-73R00-000 MEMBER,COWL SIDE OUTER,R 1 Rp301.500
37 59461-73R00-000 MEMBER,COWL SIDE OUTER,L 1 Rp301.500
38 01550-0820A-000 BOLT (8X20) 6 Rp5.500
39 59710-73R00-000 PANEL,COWL TOP 1 Rp436.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
