All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 570A FRONT HOOD PANEL572A TIRE CARRIER580A FRONT FENDER PANEL (GA,GL)580B FRONT FENDER PANEL (GX,SS)590A FRONT BODY PANEL600A FLOOR PANEL (GA,GL)600B FLOOR PANEL (GX,SS)640A SIDE BODY PANEL660A ROOF PANEL (GA)660B ROOF PANEL (GL,GX,SS)717A FRONT BUMPER (GA,GL,GX)717B FRONT BUMPER (SS)718A REAR BUMPER721A INSTRUMENT PANEL UPPER722A INSTRUMENT PANEL LOWER730A VENTILATOR (GA,GL)730B VENTILATOR (GX,SS)732A HEATER UNIT735A HEATER BLOWER (GA)735B HEATER BLOWER (GL)735C HEATER BLOWER (GX,SS)736A HEATER DOOR (GA)736B HEATER DOOR (GL)736C HEATER DOOR (GX,SS)737A EVAPORATOR UNIT (GA,GL)737B EVAPORATOR UNIT (GX,SS)73AA HEATER CONTROL (GA)73AB HEATER CONTROL (GL,GX,SS)740A CONSOLE BOX (GA,GL)740B CONSOLE BOX (GX,SS)741A FLOOR CARPET745A INTERIOR TRIM750A COVER/CAP755A FUEL LID OPENER757A ROOF SIDE PAD760A ROOF LINING772A MOLDING780A EMBLEM790A WINDSHIELD800A FRONT DOOR PANEL801A REAR DOOR PANEL805A BACK DOOR PANEL (GA)805B BACK DOOR PANEL (GL,GX,SS)810A FRONT DOOR REGULATOR811A REAR DOOR REGULATOR820A FRONT DOOR LOCK (GA)820B FRONT DOOR LOCK (GL)820C FRONT DOOR LOCK (GX,SS)821A REAR DOOR LOCK (GA,GL)821B REAR DOOR LOCK (GX,SS)824A BACK DOOR LOCK835A MIRROR/SUNVISOR (GA)835B MIRROR/SUNVISOR (GL)835C MIRROR/SUNVISOR (GX,SS)841A FRONT SEAT BELT843A 2ND SEAT BELT844A 3RD SEAT BELT848A FRONT LH SEAT (GA)848B FRONT LH SEAT (GL,GX)848C FRONT LH SEAT (SS)849A FRONT RH SEAT (GA,GL)849B FRONT RH SEAT (GX)849C FRONT RH SEAT (SS)854A 2ND RH SEAT (GA)854B 2ND RH SEAT (GL,GX)854C 2ND RH SEAT (SS)855A 2ND LH SEAT (GA,GL,GX)855B 2ND LH SEAT (SS)857A 3RD RH SEAT858A 3RD LH SEAT865A FUEL TANK893A TOOL960A CONDENSER968A FRONT A/C PIPING (GA)968B FRONT A/C PIPING (GL,GX,SS)970A REAR A/C PIPING (GL,GX,SS)972A COOLING UNIT (GL,GX,SS)990A COMPRESSOR (GA,GL)990B COMPRESSOR (GX,SS)

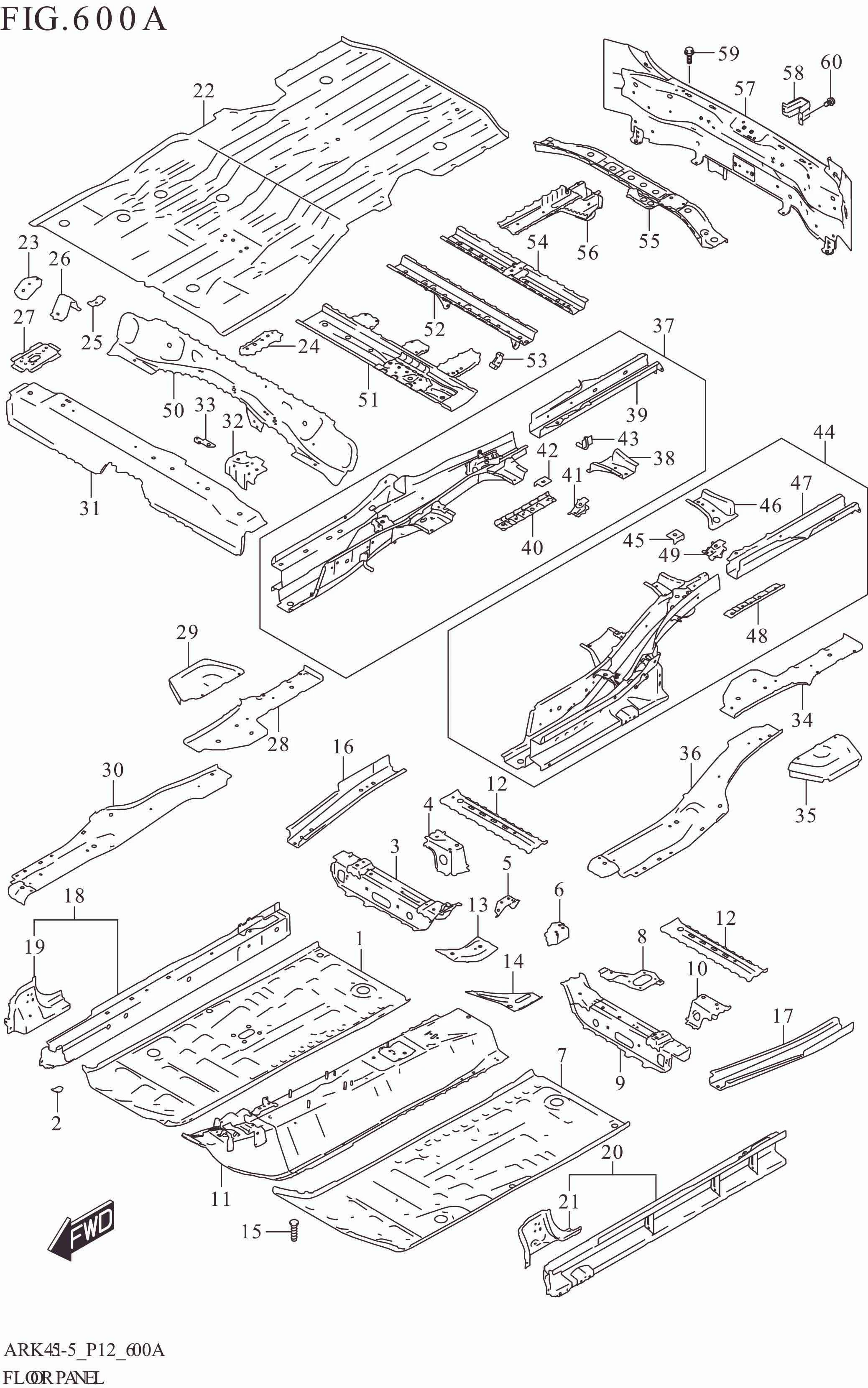

600A FLOOR PANEL (GA,GL)

600A FLOOR PANEL (GA,GL)
No No. Part Description Qty Price Per Pcs Remarks
1 61111-73R00-000 PAN,MAIN FLOOR,R 1 Rp642.000 GA,GL
2 61112M68P00-000 BRACKET,DASH LWR PAD 1 Rp18.000 GA,GL
3 61120-73R00-000 CROSSMEMBER,FLR PAN UPR,R 1 Rp315.000 GA,GL
4 61130-73R00-000 BRACKET,FR SEAT RR OUT,R 1 Rp170.500 GA,GL
5 61141-73R00-000 BRACKET,FR SEAT RR INSIDE,R 1 Rp114.500 GA,GL
6 61143-73R00-000 BRACKET,FR SEAT RR INSIDE,L 1 Rp114.500 GA,GL
7 61161-73R60-000 PAN,MAIN FLOOR,L 1 Rp647.000 GA,GL
8 61163-73R00-000 REINF,MAIN FLOOR CTR 1 Rp40.000 GA,GL
9 61170-73R00-000 CROSSMEMBER,FLR PAN UPR,L 1 Rp315.000 GA,GL
10 61180-73R00-000 BRACKET,FR SEAT RR OUT,L 1 Rp170.500 GA,GL
11 61210-73R01-000 TUNNEL,MAIN FLOOR 1 Rp2.173.000 GA,GL
12 61232M68P00-000 CROSSMEMBER,FL PAN UPR RR 2 Rp143.000 GA,GL
13 61234-72R00-000 REINF,MAIN FLOOR,R 1 Rp74.500 GA,GL
14 61235M68P00-000 REINF,MAIN FLOOR INSIDE,R 1 Rp84.000 GA,GL
15-1 09119-05018-000 BOLT (5X14.3) 3 Rp13.000 GA
15-2 09119-05018-000 BOLT (5X14.3) 4 Rp13.000 GL
16 61241-55R00-000 MEMBER,FLOOR SIDE RR,R 1 Rp158.000 GA,GL
17 61261-55R00-000 MEMBER,FLOOR SIDE RR,L 1 Rp158.000 GA,GL
18 61310-73R00-000 PANEL,SIDE SILL INNER,R 1 Rp715.000 GA,GL
19 61316-73R00-000 .PANEL,DASH SIDE LOWER,R 1 Rp104.000 GA,GL
20 61320-73R00-000 PANEL,SIDE SILL INNER,L 1 Rp715.000 GA,GL
21 61326-73R00-000 .PANEL,DASH SIDE LOWER,L 1 Rp105.000 GA,GL
22 61512-73R00-000 PANEL,RR FLOOR 1 Rp1.438.500 GA,GL
23 61515-73R00-000 BRACKET,3RD SEAT FR 4 Rp20.000 GA,GL
24 61516-73R00-000 BRACKET,3RD SEAT RR INSIDE 2 Rp33.000 GA,GL
25 61517-73R00-000 BRACKET,FUEL HOSE CLAMP 1 Rp12.500 GA,GL
26 61518-73R00-000 BRACKET,LUGGAGE BOARD 2 Rp24.000 GA,GL
27 61519-72R00-000 BRACKET,FIRE EXTINGUISHER 1 Rp17.500 GA,GL
28 61522-73R20-000 PANEL,RR FLOOR SIDE RR,R 1 Rp315.000 GA,GL
29 61523-73R30-000 EXTENSION,RR FLOOR RR SIDE,R 1 Rp252.000 GA,GL
30 61540-73R00-000 PANEL,RR FLOOR SIDE FR,R 1 Rp569.000 GA,GL
31 61511-73R00-000 PANEL,RR FLOOR FR 1 Rp577.000 GA,GL
32 61531-73R00-000 REINF,RR SEAT RAIL FR CTR 1 Rp135.500 GA,GL
33 61532-73R00-000 PATCH,RR SEAT RAIL FR CTR 1 Rp35.500 GA,GL
34 61572-73R00-000 PANEL,RR FLOOR SIDE RR,L 1 Rp305.000 GA,GL
35 61573-73R30-000 EXTENSION,RR FLOOR RR SIDE,L 1 Rp247.000 GA,GL
36 61590-73R00-000 PANEL,RR FLOOR SIDE FR,L 1 Rp551.500 GA,GL
37 62100-73R21-000
SUB: 62100-73R20-000		 MEMBER,RR FLOOR SIDE,R 1 Rp2.369.500 GA,GL
38 62118-73R00-000 .EXTENSION,RR FLR 4TH X MBR,R 1 Rp53.000 GA,GL
39 62121-73R00-000 .EXTENSION,RR FLR SIDE MBR RR,R 1 Rp260.500 GA,GL
40 62122-73R00-000 .REINF,RR FLR SIDE MBR,R 1 Rp24.000 GA,GL
41 62123-73R00-000 .REINF,3RD SEAT HINGE,R 1 Rp20.500 GA,GL
42 62124-73R00-000 .REINF,3RD SEAT HINGE FR 1 Rp13.000 GA,GL
43 62140-73R00-000 .ROD,MUFFLER HANGER 1 Rp47.500 GA,GL
44 62300-73R21-000
SUB: 62300-73R20-000		 MEMBER,RR FLOOR SIDE,L 1 Rp2.369.500 GA,GL
45 62124-73R00-000 .REINF,3RD SEAT HINGE FR 1 Rp13.000 GA,GL
46 62318-73R00-000 .EXTENSION,RR FLR 4TH X MBR,L 1 Rp51.500 GA,GL
47 62321-73R00-000 .EXTENSION,RR FLR SIDE MBR RR,L 1 Rp260.500 GA,GL
48 62322-73R00-000 .REINF,RR FLR SIDE MBR,L 1 Rp24.000 GA,GL
49 62323-73R00-000 .REINF,3RD SEAT HINGE,L 1 Rp16.500 GA,GL
50 62610-73R00-000 CROSSMEMBER,RR FLOOR FR 1 Rp315.000 GA,GL
51 62620-73R00-000 CROSSMEMBER,RR FLOOR 2ND 1 Rp530.000 GA,GL
52 62650-73R10-000 CROSSMEMBER,RR FLOOR 3RD 1 Rp145.000 GA,GL
53 62654-73R00-000 BRACKET,CANISTER HOSE CLAMP 1 Rp34.500 GA,GL
54 62660-73R00-000 CROSSMEMBER,RR FLOOR 4TH 1 Rp122.000 GA,GL
55 62670-73R00-000 CROSSMEMBER,RR FLOOR 5TH 1 Rp253.500 GA,GL
56 62680-73R00-000 HOOK,TOWING RR 1 Rp211.500 GA,GL
57 65500-73R00-000 PANEL,BACK 1 Rp1.230.500 GA,GL
58 65541-73R00-000 ABSORBER,RR BUMPER 3 Rp21.000 GA,GL
59 01550-0612A-000 BOLT (6X12) 4 Rp3.500 GA,GL
60 01550-0612A-000 BOLT (6X12) 6 Rp3.500 GA,GL

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
