All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 570A FRONT HOOD PANEL572A TIRE CARRIER580A FRONT FENDER PANEL (GA,GL)580B FRONT FENDER PANEL (GX,SS)590A FRONT BODY PANEL600A FLOOR PANEL (GA,GL)600B FLOOR PANEL (GX,SS)640A SIDE BODY PANEL660A ROOF PANEL (GA)660B ROOF PANEL (GL,GX,SS)717A FRONT BUMPER (GA,GL,GX)717B FRONT BUMPER (SS)718A REAR BUMPER721A INSTRUMENT PANEL UPPER722A INSTRUMENT PANEL LOWER730A VENTILATOR (GA,GL)730B VENTILATOR (GX,SS)732A HEATER UNIT735A HEATER BLOWER (GA)735B HEATER BLOWER (GL)735C HEATER BLOWER (GX,SS)736A HEATER DOOR (GA)736B HEATER DOOR (GL)736C HEATER DOOR (GX,SS)737A EVAPORATOR UNIT (GA,GL)737B EVAPORATOR UNIT (GX,SS)73AA HEATER CONTROL (GA)73AB HEATER CONTROL (GL,GX,SS)740A CONSOLE BOX (GA,GL)740B CONSOLE BOX (GX,SS)741A FLOOR CARPET745A INTERIOR TRIM750A COVER/CAP755A FUEL LID OPENER757A ROOF SIDE PAD760A ROOF LINING772A MOLDING780A EMBLEM790A WINDSHIELD800A FRONT DOOR PANEL801A REAR DOOR PANEL805A BACK DOOR PANEL (GA)805B BACK DOOR PANEL (GL,GX,SS)810A FRONT DOOR REGULATOR811A REAR DOOR REGULATOR820A FRONT DOOR LOCK (GA)820B FRONT DOOR LOCK (GL)820C FRONT DOOR LOCK (GX,SS)821A REAR DOOR LOCK (GA,GL)821B REAR DOOR LOCK (GX,SS)824A BACK DOOR LOCK835A MIRROR/SUNVISOR (GA)835B MIRROR/SUNVISOR (GL)835C MIRROR/SUNVISOR (GX,SS)841A FRONT SEAT BELT843A 2ND SEAT BELT844A 3RD SEAT BELT848A FRONT LH SEAT (GA)848B FRONT LH SEAT (GL,GX)848C FRONT LH SEAT (SS)849A FRONT RH SEAT (GA,GL)849B FRONT RH SEAT (GX)849C FRONT RH SEAT (SS)854A 2ND RH SEAT (GA)854B 2ND RH SEAT (GL,GX)854C 2ND RH SEAT (SS)855A 2ND LH SEAT (GA,GL,GX)855B 2ND LH SEAT (SS)857A 3RD RH SEAT858A 3RD LH SEAT865A FUEL TANK893A TOOL960A CONDENSER968A FRONT A/C PIPING (GA)968B FRONT A/C PIPING (GL,GX,SS)970A REAR A/C PIPING (GL,GX,SS)972A COOLING UNIT (GL,GX,SS)990A COMPRESSOR (GA,GL)990B COMPRESSOR (GX,SS)

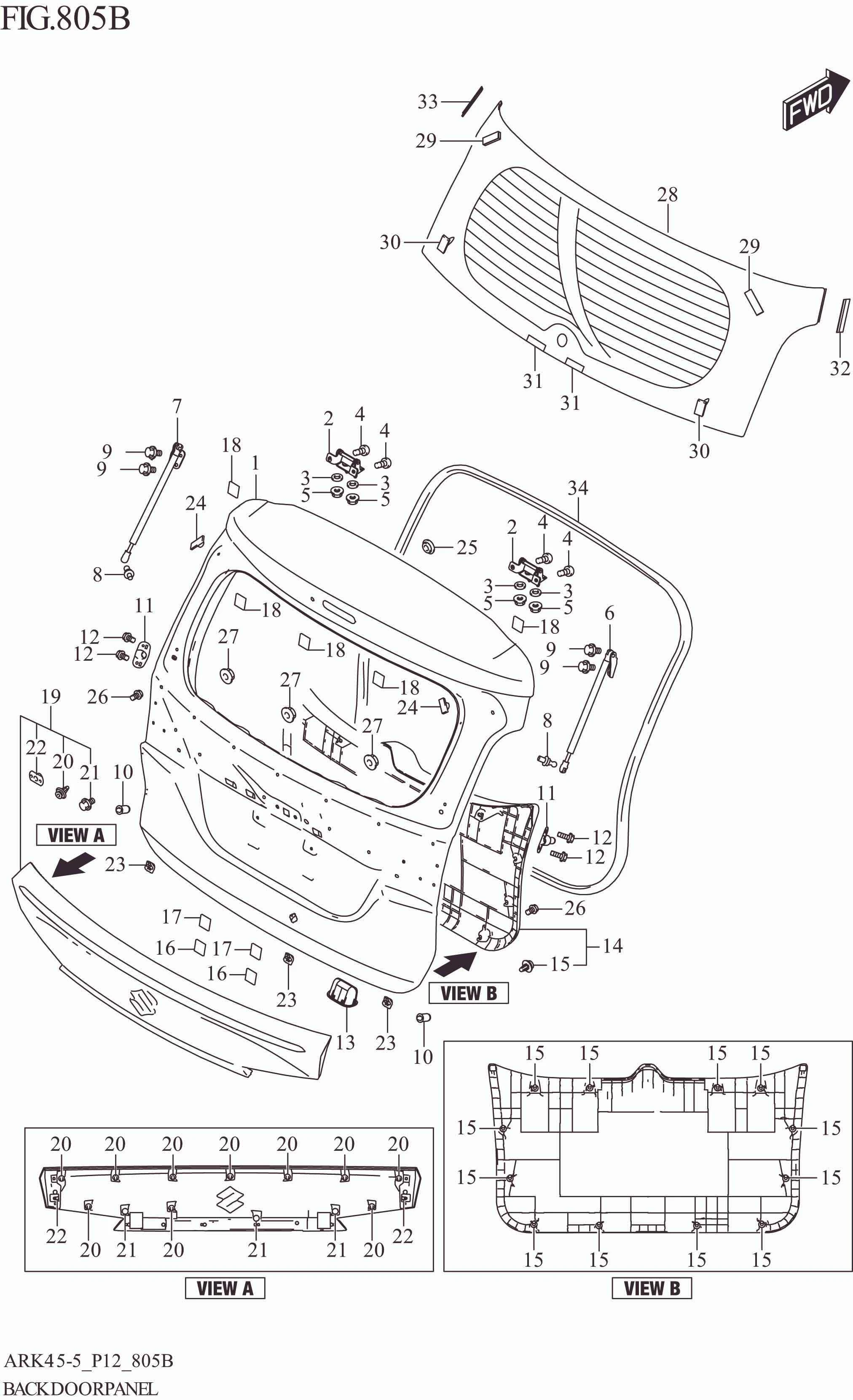

805B BACK DOOR PANEL (GL,GX,SS)

805B BACK DOOR PANEL (GL,GX,SS)
No No. Part Description Qty Price Per Pcs Remarks
1-2 69100-73R21-000 PANEL ASSY,BACK DOOR 1 Rp2.496.500 SS
1-1 69100-73R11-000 PANEL ASSY,BACK DOOR 1 Rp2.269.500 GL,GX
2 69510-73R00-000 HINGE,BACK DR 2 Rp49.500 GL,GX,SS
3 69571M76G00-000 .PACKING,BACK DR HNG 4 Rp6.500 GL,GX,SS
4 09111-06086-000 BOLT (6X12) 4 Rp16.000 GL,GX,SS
5 08361-2508A-000 NUT 4 Rp16.500 GL,GX,SS
6 81850M73R00-000 BALANCER,BK DR,R 1 Rp282.000 GL,GX,SS
7 81860M73R00-000 BALANCER,BK DR,L 1 Rp282.000 GL,GX,SS
8 81871M68P01-000 BALLSTUD,BACK DR BALANCER 2 Rp31.000 GL,GX,SS
9 09113M08009-000 BOLT 4 Rp5.500 GL,GX,SS
10 82683-73R00-000 CUSHION,BACK DOOR LOWER 2 Rp19.500 GL,GX,SS
11 82760-73R00-000 CUSHION,BACK DOOR SIDE 2 Rp25.000 GL,GX,SS
12 02162-0616B-000 SCREW (6X16) 4 Rp15.500 GL,GX,SS
13 82841-82G02-000 HANDLE,BACK DR INNER 1 Rp7.000 GL,GX,SS
14 83770-73R00-5PK TRIM,BACK DOOR (BLACK) 1 Rp513.000 GL,GX,SS
15 09409-10327-000 .CLIP 12 Rp5.000 GL,GX,SS
16 44281-29C00-000 CUSHION 2 Rp6.000 GL,GX,SS
17 77151-82000-000 FILM 2 Rp7.000 GL,GX,SS
18 77151-82000-000 FILM 5 Rp7.000 SS
19-7 839B0-86T10-EQV GARNISH,BACK DR LIC (RED,CHROME) 1 Rp769.000 GL,GX,SS BODY COLOR:WBD
19-6 839B0-86T10-EBL GARNISH,BACK DR LIC (KHAKI,CHROME) 1 Rp751.000 GL,GX,SS BODY COLOR:WAE
19-3 839B0-86T10-DCK GARNISH,BACK DR LIC (GRAY,CHROME) 1 Rp751.000 GL,GX,SS BODY COLOR:ZYZ
19-5 839B0-86T10-ATT GARNISH,BACK DR LIC (RED,CHROME) 1 Rp751.000 GL,GX,SS BODY COLOR:ZLL
19-2 839B0-86T10-L8D GARNISH,BACK DR LIC (SILVER,CHROME) 1 Rp769.000 GL,GX,SS BODY COLOR:Z2S
19-1 839B0-86T11-B8N
SUB: 839B0-86T10-B8N		 GARNISH,BACK DR LIC (WHITE,CHROME) 1 Rp788.500 GL,GX,SS BODY COLOR:ZQZ
19-4 839B0-86T10-ATR GARNISH,BACK DR LIC (BLACK,CHROME) 1 Rp751.000 GL,GX,SS BODY COLOR:ZBD,ZRY,WAP,WAT,WAS,WAY
20 71812-78F00-000 .CLIP 10 Rp9.000 GL,GX,SS
21 83947-73R00-000 .BOLT,BACK DR GARNISH 3 Rp27.500 GL,GX,SS
22 09146M06003-000 .NUT 2 Rp7.500 GL,GX,SS
23 83994-73R00-000 CAP,BACK DR DRAIN HOLE 3 Rp5.500 GL,GX,SS
24 84515-65D00-000 FEMALE,GLASS FASTENER NO.2 2 Rp45.500 GL,GX,SS
25 09250M20031-000 CAP (OD:25.8) 1 Rp4.500 GL,GX,SS
26 02162-0616B-000 SCREW (6X16) 2 Rp15.500 GL,GX,SS
27 08316-1006A-000 NUT (6X12) 3 Rp2.000 GL,GX,SS
28-1 84571-73R10-000 GLASS,BACK DR WINDOW 1 Rp430.000 GL
28-2 84571-73R20-000 GLASS,BACK DR WINDOW 1 Rp680.000 GX,SS
29 84513-76F00-000 MALE,GLASS FASTENER NO.2 2 Rp38.500 GL,GX,SS
30 84575-73R00-000 CLIP,GLASS FASTENER 2 Rp19.000 GL,GX,SS
31 84617M60M00-000 SPACER 2 Rp4.500 GL,GX,SS
32 84623-73R00-000 MOLDING,BACK DR WINDOW,R 1 Rp19.000 GL,GX,SS
33 84625-73R00-000 MOLDING,BACK DR WINDOW,L 1 Rp19.000 GL,GX,SS
34 84681-73R00-000 WEATHERSTRIP,BACK DR OPNG 1 Rp259.500 GL,GX,SS

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
