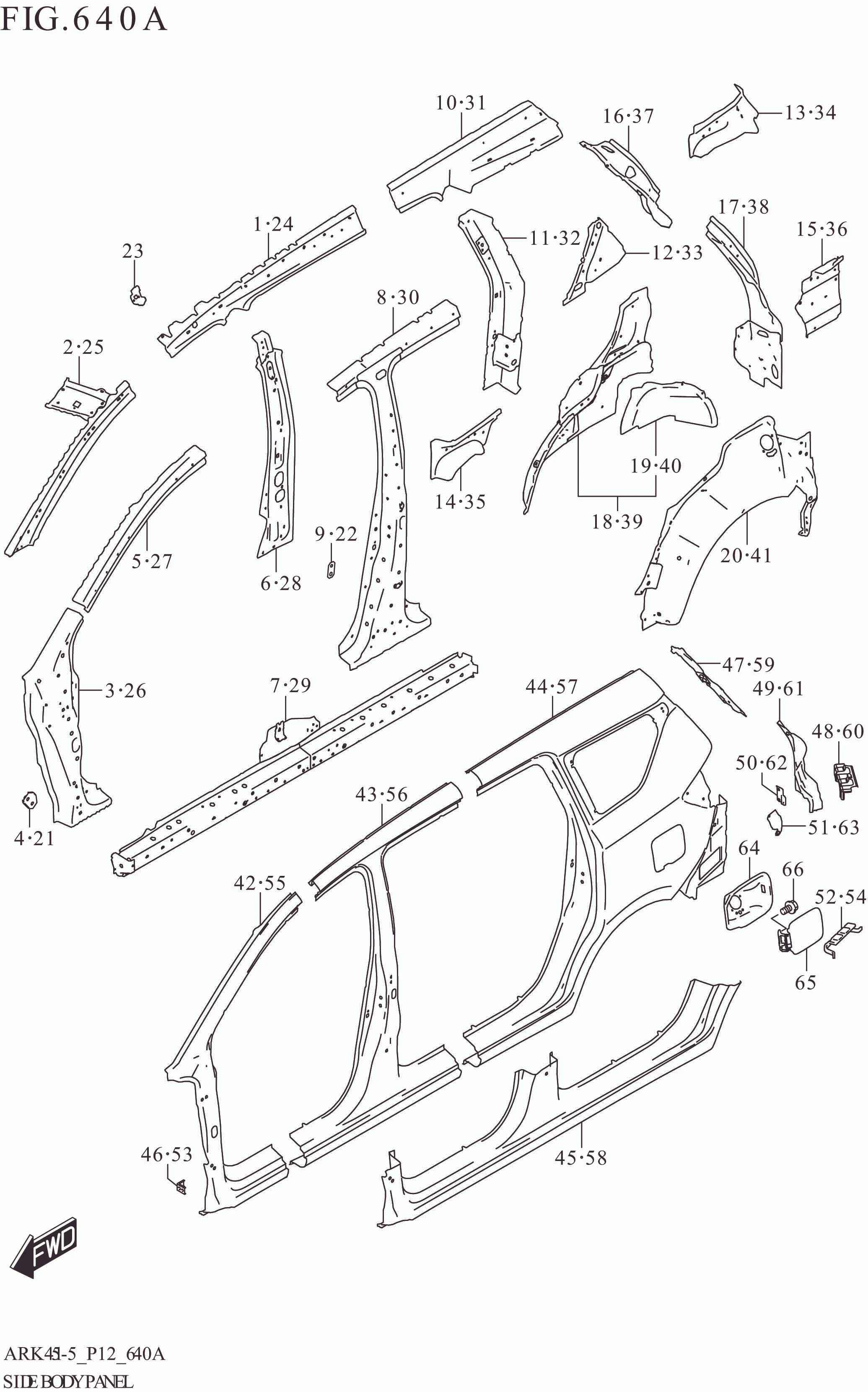

640A SIDE BODY PANEL

640A SIDE BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 63121-72R00-000 RAIL,ROOF SIDE INNER,R 1 Rp183.000
2 63130-73R00-000 PANEL,FR PLR INR UPPER,R 1 Rp230.500
3 63140-73R00-000 REINF,FR DR HINGE,R 1 Rp999.500
4 63144M76M00-000 RETAINER,FR DR HINGE LWR 2 Rp9.500
5 63151-73R00-000 REINF,FR PILLAR UPPER,R 1 Rp305.500
6 63210-73R00-000 PANEL,CTR PILLAR INNER,R 1 Rp122.000
7 63220-73R00-000 STRENGTH,SIDE SILL,R 1 Rp865.000
8 63230-73R00-000 REINF,CTR PILLAR,R 1 Rp618.500
9 63243M74P00-000 RETAINER,RR DR HINGE 2 Rp8.500
10 63311-72R00-000 PANEL,QTR INNER UPPER,R 1 Rp292.500
11 63320-73R00-000 REINF,QTR INNER FR,R 1 Rp531.500
12 63341-73R00-000 REINF,QTR WINDOW RR,R 1 Rp307.000
13 63342-73R00-000 MEMBER,QTR WINDOW LOWER RR,R 1 Rp108.500
14 63343-73R00-000 MEMBER,QTR WINDOW LOWER FR,R 1 Rp92.000
15 63350-73R00-000 PANEL,QTR INNER LOWER,R 1 Rp111.500
16 63360-73R00-000 EXTENSION,QTR INR UPPER,R 1 Rp250.000
17 63370-73R00-000 PANEL,RR LAMP HOUSE INR,R 1 Rp337.500
18 63410-73R10-000 PANEL,WHEEL HOUSE INNER,R 1 Rp888.500
19 63412-73R00-000 .PANEL,WHEEL HOUSE INNER RR,R 1 Rp867.500
20 63480-73R00-000 PANEL,WHEEL HOUSE OUTER,R 1 Rp422.500
21 63144M76M00-000 RETAINER,FR DR HINGE LWR 2 Rp9.500
22 63243M74P00-000 RETAINER,RR DR HINGE 2 Rp8.500
23 63122-72R00-000 BRACKET,ASSISTANT GRIP 2 Rp11.500
24 63521-72R00-000 RAIL,ROOF SIDE INNER,L 1 Rp183.000
25 63530-73R00-000 PANEL,FR PLR INR UPPER,L 1 Rp231.000
26 63540-73R00-000 REINF,FR DR HINGE,L 1 Rp944.500
27 63551-73R00-000 REINF,FR PILLAR UPPER,L 1 Rp305.500
28 63610-73R00-000 PANEL,CTR PILLAR INNER,L 1 Rp122.000
29 63620-73R00-000 STRENGTH,SIDE SILL,L 1 Rp865.000
30 63630-73R00-000 REINF,CTR PILLAR,L 1 Rp618.500
31 63711-72R00-000 PANEL,QTR INNER UPPER,L 1 Rp292.500
32 63720-73R00-000 REINF,QTR INNER FR,L 1 Rp531.500
33 63741-72R00-000 REINF,QTR WINDOW RR,L 1 Rp307.000
34 63742-73R00-000 MEMBER,QTR WINDOW LOWER RR,L 1 Rp108.500
35 63743-73R00-000 MEMBER,QTR WINDOW LOWER FR,L 1 Rp90.000
36 63751-73R00-000 PANEL,QTR INNER LOWER,L 1 Rp114.000
37 63760-73R00-000 EXTENSION,QTR INR UPPER,L 1 Rp250.000
38 63770-73R00-000 PANEL,RR LAMP HOUSE INR,L 1 Rp337.500
39 63810-73R10-000 PANEL,WHEEL HOUSE INNER,L 1 Rp888.500
40 63812-73R00-000 .PANEL,WHEEL HOUSE INNER RR,L 1 Rp512.500
41 63880-73R00-000 PANEL,WHEEL HOUSE OUTER,L 1 Rp422.500
42 64111-73R00-P11 PANEL,A-PILLAR,R 1 Rp4.191.000
43 64111-73R00-P21 PANEL,B-PILLAR,R 1 Rp4.291.500
44 64111-73R00-P31 PANEL,QUARTER,R 1 Rp4.191.000
45 64111-73R00-P41 PANEL,SIDE SILL,R 1 Rp4.291.500
46 64112-72R00-000 BRACKET,FR FENDER 1 Rp7.500
47 64120-73R00-000 EXTENSION,SIDE BODY OTR,R 1 Rp247.000
48 64122-79M00-000 HOLDER,RR BUMPER RR 1 Rp21.500
49 64131-73R01-000 PANEL,RR LAMP HOUSE OUTER,R 1 Rp197.500
50 64132-73R00-000 REINF,SHUT STOPPER,R 1 Rp37.500
51 64151-73R00-000 EXTENSION,RR LAMP HOUSE OTR,R 1 Rp11.500
52 64141-73R10-000 COVER,VENTILATOR OUTLET 1 Rp164.000
53 64112-72R00-000 BRACKET,FR FENDER 1 Rp7.500
54 64141-73R10-000 COVER,VENTILATOR OUTLET 1 Rp164.000
55 64511-72R00-P11 PANEL,A-PILLAR,L 1 Rp4.191.000
56 64511-72R00-P21 PANEL,B-PILLAR,L 1 Rp4.291.500
57 64511-72R00-P31 PANEL,QUARTER,L 1 Rp4.191.000
58 64511-72R00-P41 PANEL,SIDE SILL,L 1 Rp4.291.500
59 64520-73R00-000 EXTENSION,SIDE BODY OTR,L 1 Rp247.000
60 64122-79M00-000 HOLDER,RR BUMPER RR 1 Rp21.500
61 64531-73R01-000 PANEL,RR LAMP HOUSE OUTER,L 1 Rp197.500
62 64532-73R00-000 REINF,SHUT STOPPER,L 1 Rp37.000
63 64551-73R00-000 EXTENSION,RR LAMP HOUSE OTR,L 1 Rp11.500
64 64571-73R00-000 BOX,FUEL FILLER 1 Rp90.000
65 64850-73R00-000 DOOR,FUEL FILLER 1 Rp131.500
66 01550-0612A-000 BOLT (6X12) 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
