All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 570A FRONT HOOD PANEL572A TIRE CARRIER580A FRONT FENDER PANEL (GA,GL)580B FRONT FENDER PANEL (GX,SS)590A FRONT BODY PANEL600A FLOOR PANEL (GA,GL)600B FLOOR PANEL (GX,SS)640A SIDE BODY PANEL660A ROOF PANEL (GA)660B ROOF PANEL (GL,GX,SS)717A FRONT BUMPER (GA,GL,GX)717B FRONT BUMPER (SS)718A REAR BUMPER721A INSTRUMENT PANEL UPPER722A INSTRUMENT PANEL LOWER730A VENTILATOR (GA,GL)730B VENTILATOR (GX,SS)732A HEATER UNIT735A HEATER BLOWER (GA)735B HEATER BLOWER (GL)735C HEATER BLOWER (GX,SS)736A HEATER DOOR (GA)736B HEATER DOOR (GL)736C HEATER DOOR (GX,SS)737A EVAPORATOR UNIT (GA,GL)737B EVAPORATOR UNIT (GX,SS)73AA HEATER CONTROL (GA)73AB HEATER CONTROL (GL,GX,SS)740A CONSOLE BOX (GA,GL)740B CONSOLE BOX (GX,SS)741A FLOOR CARPET745A INTERIOR TRIM750A COVER/CAP755A FUEL LID OPENER757A ROOF SIDE PAD760A ROOF LINING772A MOLDING780A EMBLEM790A WINDSHIELD800A FRONT DOOR PANEL801A REAR DOOR PANEL805A BACK DOOR PANEL (GA)805B BACK DOOR PANEL (GL,GX,SS)810A FRONT DOOR REGULATOR811A REAR DOOR REGULATOR820A FRONT DOOR LOCK (GA)820B FRONT DOOR LOCK (GL)820C FRONT DOOR LOCK (GX,SS)821A REAR DOOR LOCK (GA,GL)821B REAR DOOR LOCK (GX,SS)824A BACK DOOR LOCK835A MIRROR/SUNVISOR (GA)835B MIRROR/SUNVISOR (GL)835C MIRROR/SUNVISOR (GX,SS)841A FRONT SEAT BELT843A 2ND SEAT BELT844A 3RD SEAT BELT848A FRONT LH SEAT (GA)848B FRONT LH SEAT (GL,GX)848C FRONT LH SEAT (SS)849A FRONT RH SEAT (GA,GL)849B FRONT RH SEAT (GX)849C FRONT RH SEAT (SS)854A 2ND RH SEAT (GA)854B 2ND RH SEAT (GL,GX)854C 2ND RH SEAT (SS)855A 2ND LH SEAT (GA,GL,GX)855B 2ND LH SEAT (SS)857A 3RD RH SEAT858A 3RD LH SEAT865A FUEL TANK893A TOOL960A CONDENSER968A FRONT A/C PIPING (GA)968B FRONT A/C PIPING (GL,GX,SS)970A REAR A/C PIPING (GL,GX,SS)972A COOLING UNIT (GL,GX,SS)990A COMPRESSOR (GA,GL)990B COMPRESSOR (GX,SS)

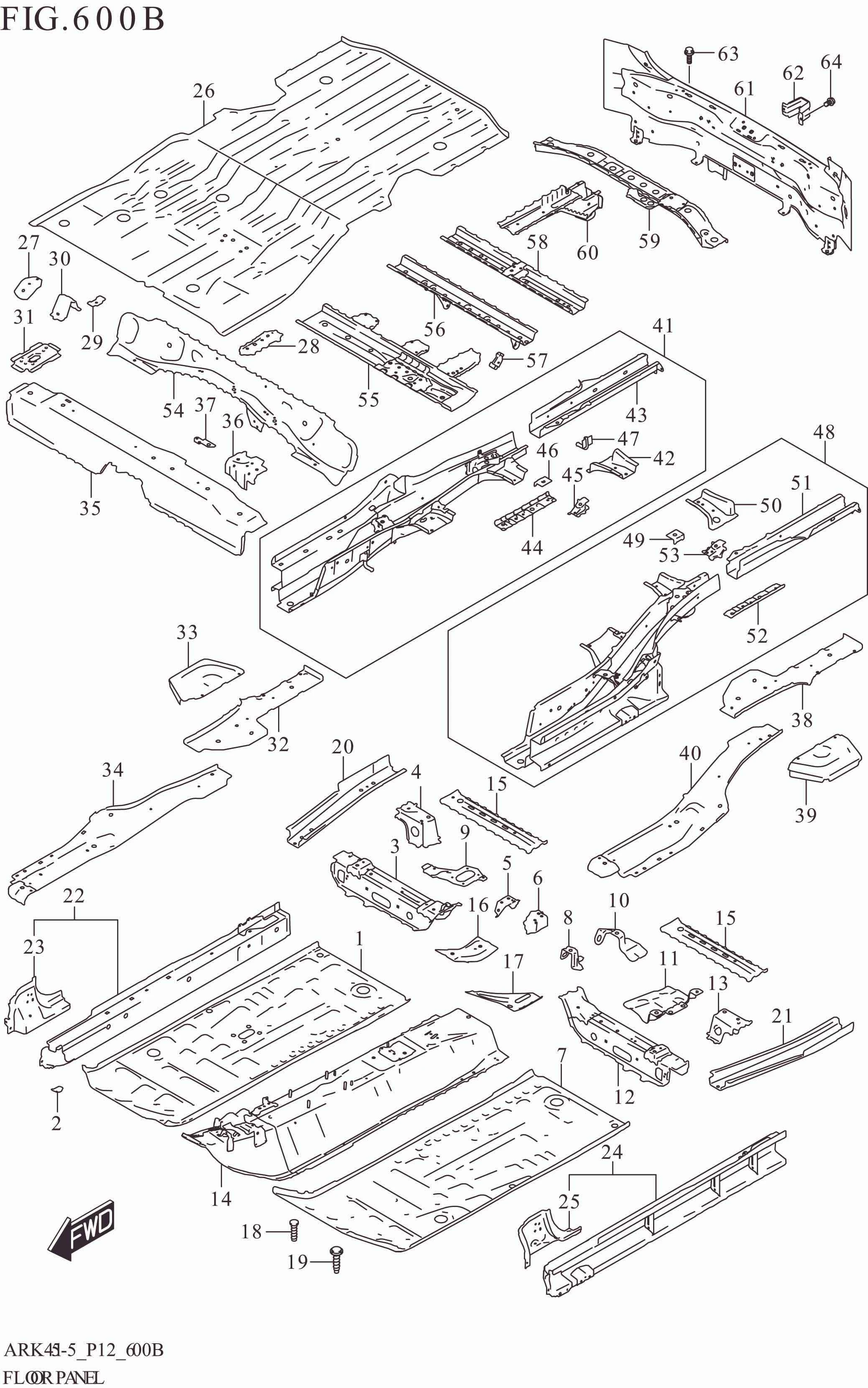

600B FLOOR PANEL (GX,SS)

600B FLOOR PANEL (GX,SS)
No No. Part Description Qty Price Per Pcs Remarks
1 61111-73R00-000 PAN,MAIN FLOOR,R 1 Rp642.000
2 61112M68P00-000 BRACKET,DASH LWR PAD 1 Rp18.000
3 61120-73R00-000 CROSSMEMBER,FLR PAN UPR,R 1 Rp315.000
4 61130-73R00-000 BRACKET,FR SEAT RR OUT,R 1 Rp170.500
5 61141-73R00-000 BRACKET,FR SEAT RR INSIDE,R 1 Rp114.500
6 61143-73R00-000 BRACKET,FR SEAT RR INSIDE,L 1 Rp114.500
7 61161-73R40-000 PAN,MAIN FLOOR,L 1 Rp642.000
8 61162-73R00-000 BRACKET,BATTERY NO.1 1 Rp13.000
9 61163-73R00-000 REINF,MAIN FLOOR CTR 1 Rp40.000
10 61164-73R00-000 BRACKET,BATTERY NO.2 1 Rp78.500
11 61165-73R00-000 BRACKET,BATTERY NO.3 1 Rp87.500
12 61170-73R00-000 CROSSMEMBER,FLR PAN UPR,L 1 Rp315.000
13 61180-73R00-000 BRACKET,FR SEAT RR OUT,L 1 Rp170.500
14 61210-73R01-000 TUNNEL,MAIN FLOOR 1 Rp2.173.000
15 61232M68P00-000 CROSSMEMBER,FL PAN UPR RR 2 Rp143.000
16 61234-72R00-000 REINF,MAIN FLOOR,R 1 Rp74.500
17 61235M68P00-000 REINF,MAIN FLOOR INSIDE,R 1 Rp84.000
18 09119-05018-000 BOLT (5X14.3) 4 Rp13.000
19 09119-06094-000 BOLT (6X23) 5 Rp19.500
20 61241-55R00-000 MEMBER,FLOOR SIDE RR,R 1 Rp158.000
21 61261-55R00-000 MEMBER,FLOOR SIDE RR,L 1 Rp158.000
22 61310-73R00-000 PANEL,SIDE SILL INNER,R 1 Rp715.000
23 61316-73R00-000 .PANEL,DASH SIDE LOWER,R 1 Rp104.000
24 61320-73R00-000 PANEL,SIDE SILL INNER,L 1 Rp715.000
25 61326-73R00-000 .PANEL,DASH SIDE LOWER,L 1 Rp105.000
26 61512-73R00-000 PANEL,RR FLOOR 1 Rp1.438.500
27 61515-73R00-000 BRACKET,3RD SEAT FR 4 Rp20.000
28 61516-73R00-000 BRACKET,3RD SEAT RR INSIDE 2 Rp33.000
29 61517-73R00-000 BRACKET,FUEL HOSE CLAMP 1 Rp12.500
30 61518-73R00-000 BRACKET,LUGGAGE BOARD 2 Rp24.000
31 61519-72R00-000 BRACKET,FIRE EXTINGUISHER 1 Rp17.500
32 61522-73R20-000 PANEL,RR FLOOR SIDE RR,R 1 Rp315.000
33 61523-73R30-000 EXTENSION,RR FLOOR RR SIDE,R 1 Rp252.000
34 61540-73R00-000 PANEL,RR FLOOR SIDE FR,R 1 Rp569.000
35 61511-73R00-000 PANEL,RR FLOOR FR 1 Rp577.000
36 61531-73R00-000 REINF,RR SEAT RAIL FR CTR 1 Rp135.500
37 61532-73R00-000 PATCH,RR SEAT RAIL FR CTR 1 Rp35.500
38 61572-73R00-000 PANEL,RR FLOOR SIDE RR,L 1 Rp305.000
39 61573-73R30-000 EXTENSION,RR FLOOR RR SIDE,L 1 Rp247.000
40 61590-73R00-000 PANEL,RR FLOOR SIDE FR,L 1 Rp551.500
41 62100-73R21-000
SUB: 62100-73R20-000		 MEMBER,RR FLOOR SIDE,R 1 Rp2.369.500
42 62118-73R00-000 .EXTENSION,RR FLR 4TH X MBR,R 1 Rp53.000
43 62121-73R00-000 .EXTENSION,RR FLR SIDE MBR RR,R 1 Rp260.500
44 62122-73R00-000 .REINF,RR FLR SIDE MBR,R 1 Rp24.000
45 62123-73R00-000 .REINF,3RD SEAT HINGE,R 1 Rp20.500
46 62124-73R00-000 .REINF,3RD SEAT HINGE FR 1 Rp13.000
47 62140-73R00-000 .ROD,MUFFLER HANGER 1 Rp47.500
48 62300-73R21-000
SUB: 62300-73R20-000		 MEMBER,RR FLOOR SIDE,L 1 Rp2.369.500
49 62124-73R00-000 .REINF,3RD SEAT HINGE FR 1 Rp13.000
50 62318-73R00-000 .EXTENSION,RR FLR 4TH X MBR,L 1 Rp51.500
51 62321-73R00-000 .EXTENSION,RR FLR SIDE MBR RR,L 1 Rp260.500
52 62322-73R00-000 .REINF,RR FLR SIDE MBR,L 1 Rp24.000
53 62323-73R00-000 .REINF,3RD SEAT HINGE,L 1 Rp16.500
54 62610-73R00-000 CROSSMEMBER,RR FLOOR FR 1 Rp315.000
55 62620-73R00-000 CROSSMEMBER,RR FLOOR 2ND 1 Rp530.000
56 62650-73R10-000 CROSSMEMBER,RR FLOOR 3RD 1 Rp145.000
57 62654-73R00-000 BRACKET,CANISTER HOSE CLAMP 1 Rp34.500
58 62660-73R00-000 CROSSMEMBER,RR FLOOR 4TH 1 Rp122.000
59 62670-73R00-000 CROSSMEMBER,RR FLOOR 5TH 1 Rp253.500
60 62680-73R00-000 HOOK,TOWING RR 1 Rp211.500
61 65500-73R00-000 PANEL,BACK 1 Rp1.230.500
62 65541-73R00-000 ABSORBER,RR BUMPER 3 Rp21.000
63 01550-0612A-000 BOLT (6X12) 4 Rp3.500
64 01550-0612A-000 BOLT (6X12) 6 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
