All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 570A FRONT HOOD PANEL572A TIRE CARRIER580A FRONT FENDER PANEL (GA,GL)580B FRONT FENDER PANEL (GX,SS)590A FRONT BODY PANEL600A FLOOR PANEL (GA,GL)600B FLOOR PANEL (GX,SS)640A SIDE BODY PANEL660A ROOF PANEL (GA)660B ROOF PANEL (GL,GX,SS)717A FRONT BUMPER (GA,GL,GX)717B FRONT BUMPER (SS)718A REAR BUMPER721A INSTRUMENT PANEL UPPER722A INSTRUMENT PANEL LOWER730A VENTILATOR (GA,GL)730B VENTILATOR (GX,SS)732A HEATER UNIT735A HEATER BLOWER (GA)735B HEATER BLOWER (GL)735C HEATER BLOWER (GX,SS)736A HEATER DOOR (GA)736B HEATER DOOR (GL)736C HEATER DOOR (GX,SS)737A EVAPORATOR UNIT (GA,GL)737B EVAPORATOR UNIT (GX,SS)73AA HEATER CONTROL (GA)73AB HEATER CONTROL (GL,GX,SS)740A CONSOLE BOX (GA,GL)740B CONSOLE BOX (GX,SS)741A FLOOR CARPET745A INTERIOR TRIM750A COVER/CAP755A FUEL LID OPENER757A ROOF SIDE PAD760A ROOF LINING772A MOLDING780A EMBLEM790A WINDSHIELD800A FRONT DOOR PANEL801A REAR DOOR PANEL805A BACK DOOR PANEL (GA)805B BACK DOOR PANEL (GL,GX,SS)810A FRONT DOOR REGULATOR811A REAR DOOR REGULATOR820A FRONT DOOR LOCK (GA)820B FRONT DOOR LOCK (GL)820C FRONT DOOR LOCK (GX,SS)821A REAR DOOR LOCK (GA,GL)821B REAR DOOR LOCK (GX,SS)824A BACK DOOR LOCK835A MIRROR/SUNVISOR (GA)835B MIRROR/SUNVISOR (GL)835C MIRROR/SUNVISOR (GX,SS)841A FRONT SEAT BELT843A 2ND SEAT BELT844A 3RD SEAT BELT848A FRONT LH SEAT (GA)848B FRONT LH SEAT (GL,GX)848C FRONT LH SEAT (SS)849A FRONT RH SEAT (GA,GL)849B FRONT RH SEAT (GX)849C FRONT RH SEAT (SS)854A 2ND RH SEAT (GA)854B 2ND RH SEAT (GL,GX)854C 2ND RH SEAT (SS)855A 2ND LH SEAT (GA,GL,GX)855B 2ND LH SEAT (SS)857A 3RD RH SEAT858A 3RD LH SEAT865A FUEL TANK893A TOOL960A CONDENSER968A FRONT A/C PIPING (GA)968B FRONT A/C PIPING (GL,GX,SS)970A REAR A/C PIPING (GL,GX,SS)972A COOLING UNIT (GL,GX,SS)990A COMPRESSOR (GA,GL)990B COMPRESSOR (GX,SS)

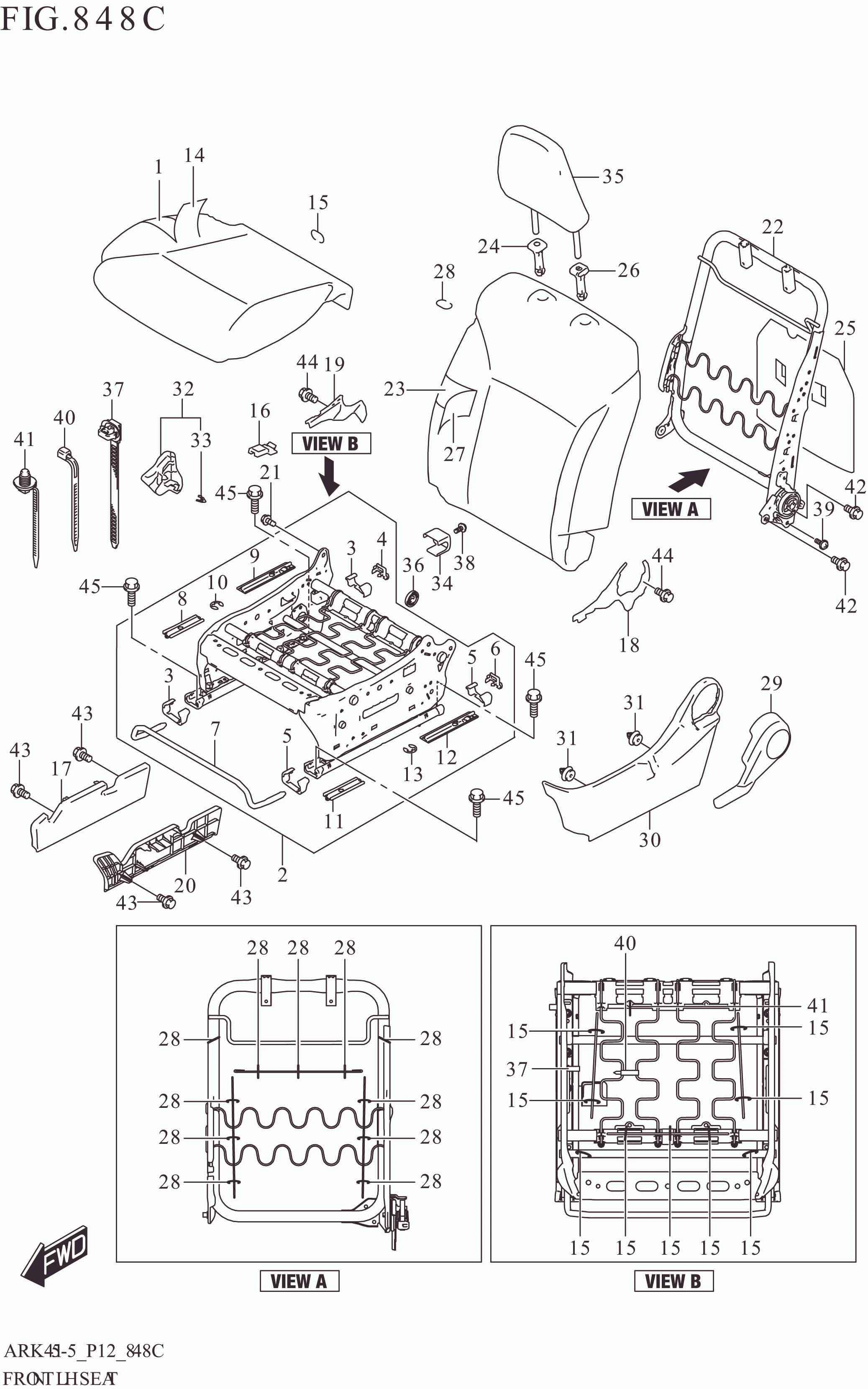

848C FRONT LH SEAT (SS)

848C FRONT LH SEAT (SS)
No No. Part Description Qty Price Per Pcs Remarks
1 85107-73R00-000 PAD S/ASSY,FR CUSH 1 Rp495.000
2 85603-73R10-000 FRAME ASSY,FR CUSH,L 1 Rp2.561.500
3 86652M74P50-000 .CAP,FR ADJ LWR 2 Rp5.500
4 86653M74P50-000 .CAP,FR ADJ UPR 1 Rp5.500
5 86652M74P50-000 .CAP,FR ADJ LWR 2 Rp5.500
6 86653M74P50-000 .CAP,FR ADJ UPR 1 Rp5.500
7 86691-73R00-000 .HANDLE,FR SEAT ADJUSTER 1 Rp130.500
8 86656-74P50-000 .PROTECTOR,FR ADJ FR 1 Rp8.500
9 86657-68P00-000 .PROTECTOR,FR ADJUSTER REAR 1 Rp10.000
10 86658-68P00-000 .RING,FR ADJUSTER REAR 1 Rp6.500
11 86656-74P50-000 .PROTECTOR,FR ADJ FR 1 Rp8.500
12 86657-68P00-000 .PROTECTOR,FR ADJUSTER REAR 1 Rp10.000
13 86658-68P00-000 .RING,FR ADJUSTER REAR 1 Rp6.500
14 85680-73R70-EMZ TRIM,FR CUSH,L 1 Rp570.500
15 09387-19001-000 RING (OD:22.6) 9 Rp9.000
16 85192-74P00-000 HOLDER,HARNESS 1 Rp6.500
17 85223-73R00-000 COVER,FR RISER,R 1 Rp19.000
18 85242-68P00-5PK COVER,FR RCLNG INS LWR,L (BLACK) 1 Rp10.500
19 85242-73R00-5PK COVER,RCLNG INS LWR,L (BLACK) 1 Rp8.000
20 85243-73R00-000 COVER,FR RISER,L 1 Rp20.500
21 85295-58J01-000 BOLT,FR BACK FIX 1 Rp34.000
22 85803-73R00-000 FRAME ASSY,FR BACK,L 1 Rp1.012.000
23 85860-73R00-000 PAD,FR BACK,L 1 Rp346.000
24 85341-73R00-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp53.000
25 85369-74L00-000 SILENCER,FR BACK 1 Rp40.000
26 85840-73R00-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp53.000
27 85880-73R30-EMZ TRIM,FR BACK,L 1 Rp1.376.500
28 09387-19001-000 RING (OD:22.6) 9 Rp9.000
29 85711-62R00-5PK KNOB,RCLNG,L (BLACK) 1 Rp86.000
30 85721-73R00-5PK COVER,FR RCLNG OUT,R (BLACK) 1 Rp49.000
31 09409-10313-000 CLIP 2 Rp14.000
32 85741-68P10-5PK COVER,RCLNG INS,L (BLACK) 1 Rp11.500
33 85249M68P00-000 .CLIP 1 Rp9.500
34 85780-81P00-000 COVER,FR HARNESS BRACKET,L 1 Rp6.500
35 86401-73R50-EM1 HEADRESTRAINT ASSY 1 Rp786.500
36 87286-81P00-000 BUSH,FR BACK FIX 1 Rp37.000
37 96619-59L00-000 CLAMP 1 Rp24.500
38 09132-04037-000 SCREW (4X10) 1 Rp15.000
39 09132-04037-000 SCREW (4X10) 1 Rp15.000
40 36990-25G00-000
SUB: 09407-14403-000		 CLAMP (L:125) 1 Rp13.000
41 09407-17403-000 CLAMP (L:154) 1 Rp3.500
42 01550-1016A-000 BOLT (10X16) 2 Rp5.500
43 03541-0410A-000 SCREW 4 Rp11.000
44 03541-0410A-000 SCREW 2 Rp11.000
45 09119-08107-000 BOLT (8X25) 4 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
