All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 570A FRONT HOOD PANEL572A TIRE CARRIER580A FRONT FENDER PANEL (GA,GL)580B FRONT FENDER PANEL (GX,SS)590A FRONT BODY PANEL600A FLOOR PANEL (GA,GL)600B FLOOR PANEL (GX,SS)640A SIDE BODY PANEL660A ROOF PANEL (GA)660B ROOF PANEL (GL,GX,SS)717A FRONT BUMPER (GA,GL,GX)717B FRONT BUMPER (SS)718A REAR BUMPER721A INSTRUMENT PANEL UPPER722A INSTRUMENT PANEL LOWER730A VENTILATOR (GA,GL)730B VENTILATOR (GX,SS)732A HEATER UNIT735A HEATER BLOWER (GA)735B HEATER BLOWER (GL)735C HEATER BLOWER (GX,SS)736A HEATER DOOR (GA)736B HEATER DOOR (GL)736C HEATER DOOR (GX,SS)737A EVAPORATOR UNIT (GA,GL)737B EVAPORATOR UNIT (GX,SS)73AA HEATER CONTROL (GA)73AB HEATER CONTROL (GL,GX,SS)740A CONSOLE BOX (GA,GL)740B CONSOLE BOX (GX,SS)741A FLOOR CARPET745A INTERIOR TRIM750A COVER/CAP755A FUEL LID OPENER757A ROOF SIDE PAD760A ROOF LINING772A MOLDING780A EMBLEM790A WINDSHIELD800A FRONT DOOR PANEL801A REAR DOOR PANEL805A BACK DOOR PANEL (GA)805B BACK DOOR PANEL (GL,GX,SS)810A FRONT DOOR REGULATOR811A REAR DOOR REGULATOR820A FRONT DOOR LOCK (GA)820B FRONT DOOR LOCK (GL)820C FRONT DOOR LOCK (GX,SS)821A REAR DOOR LOCK (GA,GL)821B REAR DOOR LOCK (GX,SS)824A BACK DOOR LOCK835A MIRROR/SUNVISOR (GA)835B MIRROR/SUNVISOR (GL)835C MIRROR/SUNVISOR (GX,SS)841A FRONT SEAT BELT843A 2ND SEAT BELT844A 3RD SEAT BELT848A FRONT LH SEAT (GA)848B FRONT LH SEAT (GL,GX)848C FRONT LH SEAT (SS)849A FRONT RH SEAT (GA,GL)849B FRONT RH SEAT (GX)849C FRONT RH SEAT (SS)854A 2ND RH SEAT (GA)854B 2ND RH SEAT (GL,GX)854C 2ND RH SEAT (SS)855A 2ND LH SEAT (GA,GL,GX)855B 2ND LH SEAT (SS)857A 3RD RH SEAT858A 3RD LH SEAT865A FUEL TANK893A TOOL960A CONDENSER968A FRONT A/C PIPING (GA)968B FRONT A/C PIPING (GL,GX,SS)970A REAR A/C PIPING (GL,GX,SS)972A COOLING UNIT (GL,GX,SS)990A COMPRESSOR (GA,GL)990B COMPRESSOR (GX,SS)

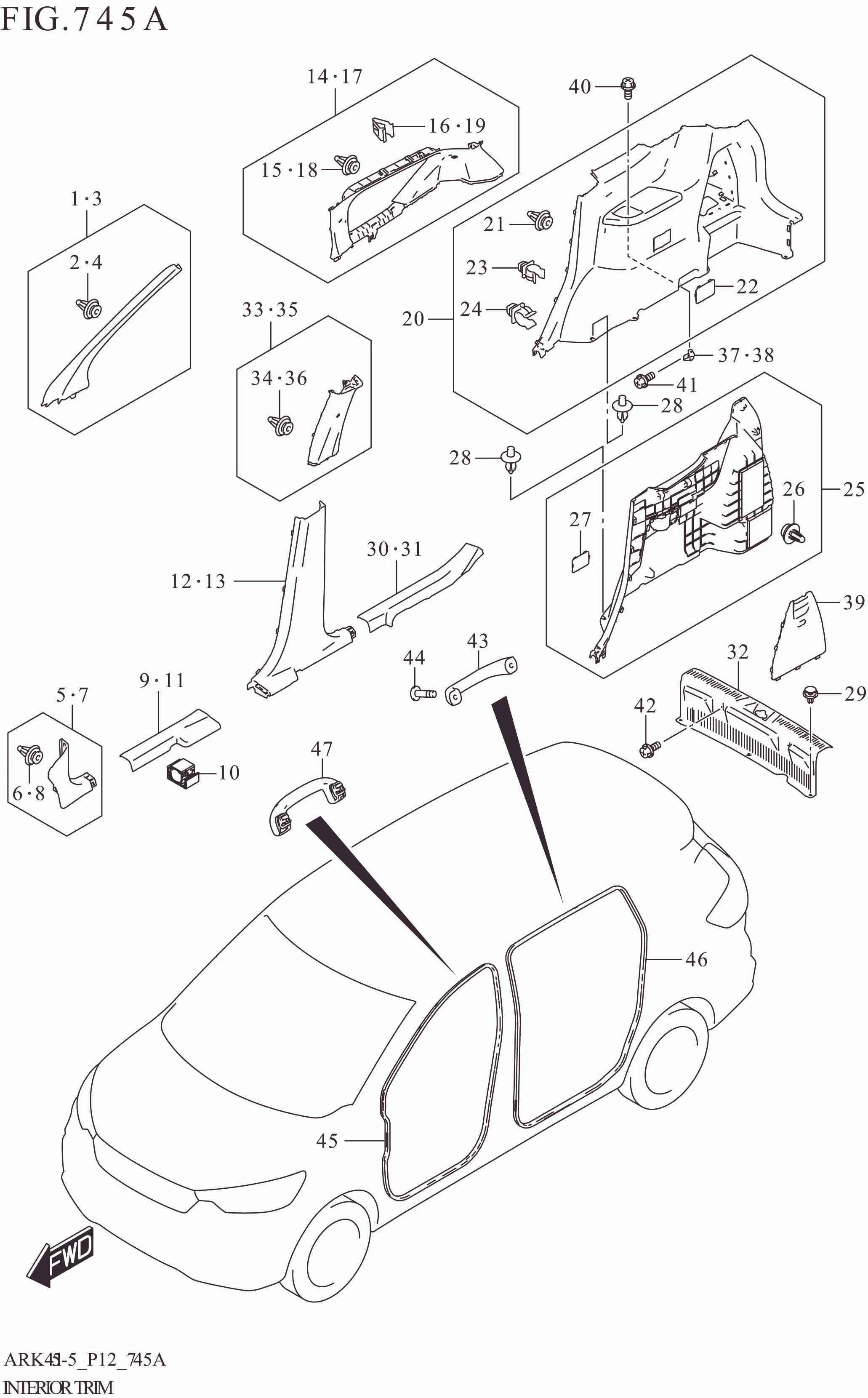

745A INTERIOR TRIM

745A INTERIOR TRIM
No No. Part Description Qty Price Per Pcs Remarks
1 76110-73R00-6GS TRIM,FRONT PILLAR,R (GRAY) 1 Rp159.500
2 09409-10314-000 .CLIP 3 Rp17.000
3 76120-73R00-6GS TRIM,FRONT PILLAR,L (GRAY) 1 Rp159.500
4 09409-10314-000 .CLIP 3 Rp17.000
5 76130-73R00-5PK TRIM,DASH SIDE,R (BLACK) 1 Rp128.000
6 76142-76G00-000 .CLIP,INR 1 Rp9.500
7 76140-73R00-5PK TRIM,DASH SIDE,L (BLACK) 1 Rp128.000
8 76142-76G00-000 .CLIP,INR 1 Rp9.500
9 76151-73R00-5PK SCUFF,SIDE SILL FRONT,R (BLACK) 1 Rp74.500
10 76158-71L00-000 CLAMP,SIDE SILL SCUFF 12 Rp34.500
11 76161-73R00-5PK SCUFF,SIDE SILL FRONT,L (BLACK) 1 Rp74.500
12 76231-73R00-5PK TRIM,CTR PILLAR LOWER,R (BLACK) 1 Rp174.000
13 76241-73R00-5PK TRIM,CTR PILLAR LOWER,L (BLACK) 1 Rp174.000
14 76250-73R00-6GS TRIM,QUARTER UPPER,R (GRAY) 1 Rp343.000
15 09409-10327-000 .CLIP 5 Rp5.000
16 09409-07335-000 .CLIP 2 Rp17.500
17 76260-73R00-6GS TRIM,QUARTER UPPER,L (GRAY) 1 Rp343.000
18 09409-10327-000 .CLIP 5 Rp5.000
19 09409-07335-000 .CLIP 2 Rp17.500
20 76270-73R00-5PK TRIM,QUARTER LOWER,R (BLACK) 1 Rp1.076.500
21 09409-10327-000 .CLIP 6 Rp5.000
22 76273-73R00-5PK .CAP,QUARTER LOWER TRIM,R (BLACK) 1 Rp23.500
23 09403-08326-000 .CLAMP (D:8) 2 Rp19.500
24 09403-13317-000 .CLAMP 2 Rp9.000
25 76280-73R00-5PK TRIM,QUARTER LOWER,L (BLACK) 1 Rp1.076.500
26 09409-10327-000 .CLIP 6 Rp5.000
27 76283-73R00-5PK .CAP,QUARTER LOWER TRIM,L (BLACK) 1 Rp24.000
28 09409-07330-5PK CLIP (BLACK) 4 Rp12.500
29 09409-07340-000 CLIP (6.8X11.5) 3 Rp17.500
30 76171-73R00-5PK SCUFF,SIDE SILL REAR,R (BLACK) 1 Rp86.500
31 76181-73R00-5PK SCUFF,SIDE SILL REAR,L (BLACK) 1 Rp86.500
32 76190-73R10-5PK TRIM,TAIL END (BLACK) 1 Rp129.000
33 76210-73R00-6GS TRIM,CTR PILLAR UPPER,R (GRAY) 1 Rp125.000
34 76142-76G00-000 .CLIP,INR 1 Rp9.500
35 76220-73R00-6GS TRIM,CTR PILLAR UPPER,L (GRAY) 1 Rp125.000
36 76142-76G00-000 .CLIP,INR 1 Rp9.500
37 76279-73R00-000 BRACKET,QTR LWR TRIM ARMREST,R 1 Rp14.000
38 76289-73R00-000 BRACKET,QTR LWR TRIM ARMREST,L 1 Rp14.000
39 76310-73R00-5PK LID,JACK (BLACK) 1 Rp64.000
40 02142-0612A-000 SCREW 2 Rp4.000
41 02162-0612A-000 SCREW (6X12) 2 Rp11.000
42 02162-0612A-000 SCREW (6X12) 2 Rp11.000
43 76411M79F00-6GS GRIP,ASST (GRAY) 2 Rp27.000
44 09139-06104-000 SCREW (6X26) 4 Rp22.500
45 76291-73R00-000 TRIM,FR DR OPENING 2 Rp186.000
46 76295-73R00-000 TRIM,RR DR OPENING 2 Rp200.500
47 76410M79M20-6GS
SUB: 76410M79M02-6GS		 GRIP,ASSISTANT (GRAY) 3 Rp82.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
