< KEMBALI KE THUMBNAIL 570A FRONT HOOD PANEL 572A TIRE CARRIER 580A FRONT FENDER PANEL (GA,GL)580B FRONT FENDER PANEL (GX,SS)590A FRONT BODY PANEL 600A FLOOR PANEL (GA,GL)600B FLOOR PANEL (GX,SS)640A SIDE BODY PANEL 660A ROOF PANEL (GA)660B ROOF PANEL (GL,GX,SS)717A FRONT BUMPER (GA,GL,GX)717B FRONT BUMPER (SS)718A REAR BUMPER 721A INSTRUMENT PANEL UPPER 722A INSTRUMENT PANEL LOWER 730A VENTILATOR (GA,GL)730B VENTILATOR (GX,SS)732A HEATER UNIT 735A HEATER BLOWER (GA)735B HEATER BLOWER (GL)735C HEATER BLOWER (GX,SS)736A HEATER DOOR (GA)736B HEATER DOOR (GL)736C HEATER DOOR (GX,SS)737A EVAPORATOR UNIT (GA,GL)737B EVAPORATOR UNIT (GX,SS)73AA HEATER CONTROL (GA)73AB HEATER CONTROL (GL,GX,SS)740A CONSOLE BOX (GA,GL)740B CONSOLE BOX (GX,SS)741A FLOOR CARPET 745A INTERIOR TRIM 750A COVER/CAP 755A FUEL LID OPENER 757A ROOF SIDE PAD 760A ROOF LINING 772A MOLDING 780A EMBLEM 790A WINDSHIELD 800A FRONT DOOR PANEL 801A REAR DOOR PANEL 805A BACK DOOR PANEL (GA)805B BACK DOOR PANEL (GL,GX,SS)810A FRONT DOOR REGULATOR 811A REAR DOOR REGULATOR 820A FRONT DOOR LOCK (GA)820B FRONT DOOR LOCK (GL)820C FRONT DOOR LOCK (GX,SS)821A REAR DOOR LOCK (GA,GL)821B REAR DOOR LOCK (GX,SS)824A BACK DOOR LOCK 835A MIRROR/SUNVISOR (GA)835B MIRROR/SUNVISOR (GL)835C MIRROR/SUNVISOR (GX,SS)841A FRONT SEAT BELT 843A 2ND SEAT BELT 844A 3RD SEAT BELT 848A FRONT LH SEAT (GA)848B FRONT LH SEAT (GL,GX)848C FRONT LH SEAT (SS)849A FRONT RH SEAT (GA,GL)849B FRONT RH SEAT (GX)849C FRONT RH SEAT (SS)854A 2ND RH SEAT (GA)854B 2ND RH SEAT (GL,GX)854C 2ND RH SEAT (SS)855A 2ND LH SEAT (GA,GL,GX)855B 2ND LH SEAT (SS)857A 3RD RH SEAT 858A 3RD LH SEAT 865A FUEL TANK 893A TOOL 960A CONDENSER 968A FRONT A/C PIPING (GA)968B FRONT A/C PIPING (GL,GX,SS)970A REAR A/C PIPING (GL,GX,SS)972A COOLING UNIT (GL,GX,SS)990A COMPRESSOR (GA,GL)990B COMPRESSOR (GX,SS)

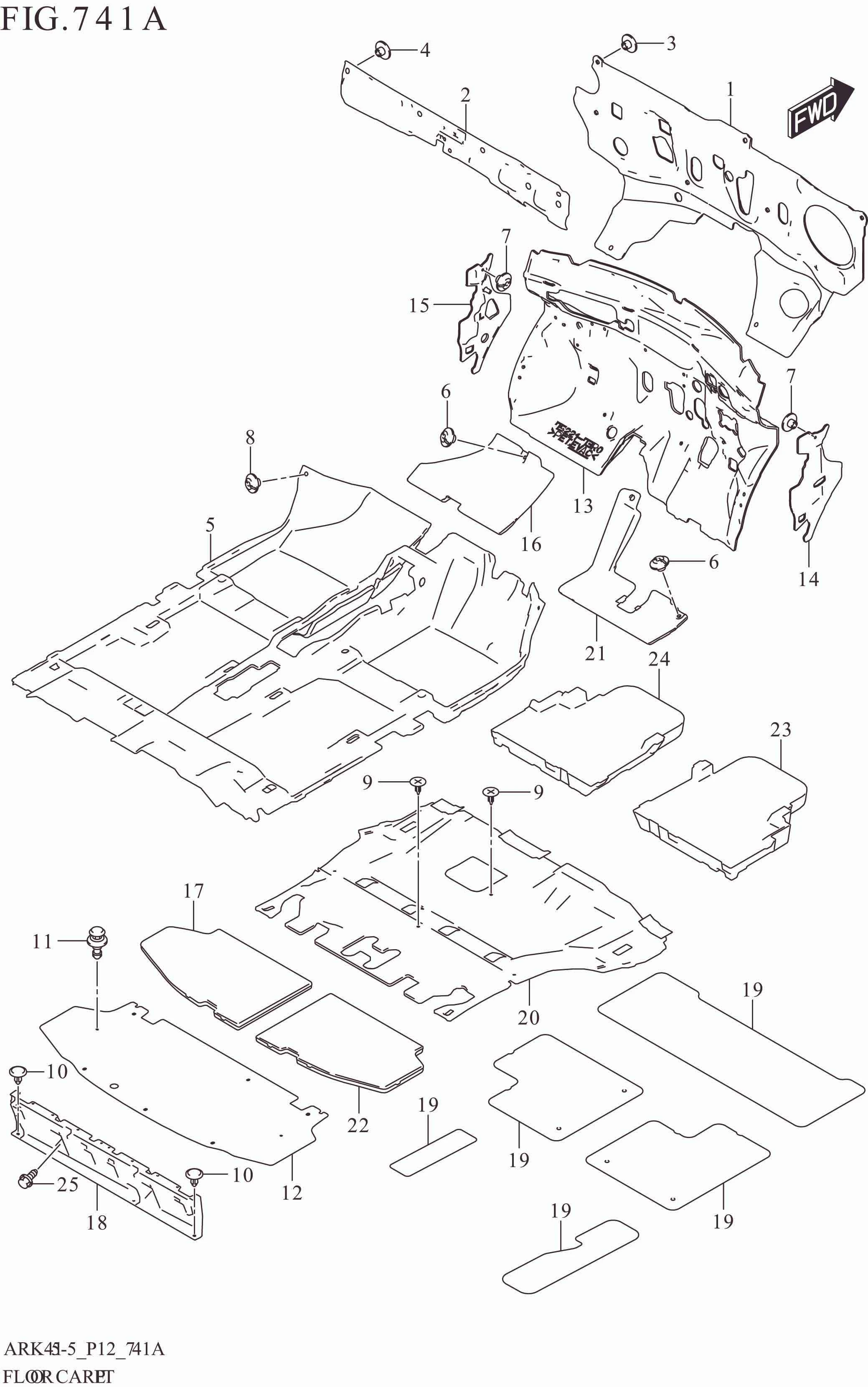

741A FLOOR CARPET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	72450-73R00-000	SILENCER,DASH OUTER	1	Rp839.500
2	72490-73R00-000	SILENCER,COWL FRONT	1	Rp407.000	GX,SS
3	09148-05037-000	CLIP (M5)	3	Rp18.000
4	09148-05037-000	CLIP (M5)	7	Rp18.000	GX,SS
5-1	75110-73R01-R3F	CARPET,FRONT FLOOR (BLACK)	1	Rp851.000	(GA,GL):5MT
5-2	75110-73R11-R3F	CARPET,FRONT FLOOR (BLACK)	1	Rp878.500	GL:4AT
5-3	75110-73R20-R3F	CARPET,FRONT FLOOR (BLACK)	1	Rp864.500	(GX,SS):5MT
5-4	75110-73R30-R3F	CARPET,FRONT FLOOR (BLACK)	1	Rp898.500	(GX,SS):4AT
6	09148-05037-000	CLIP (M5)	2	Rp18.000
7	09148-05037-000	CLIP (M5)	5	Rp18.000
8	09148-05037-000	CLIP (M5)	2	Rp18.000
9	09409-10302-5PK	CLIP (BLACK)	5	Rp18.500
10-1	09409-07340-R8R	CLIP (BROWN)	2	Rp18.500
10-2	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500
11-1	09409-07340-R8R	CLIP (BROWN)	3	Rp18.500
11-2	09409-07340-000	CLIP (6.8X11.5)	3	Rp17.500
12	75130-73R00-R3F	CARPET,LUGGAGE FLOOR (BLACK)	1	Rp743.500
13-1	75221-73R00-000	SILENCER,DASH PANEL INNER	1	Rp1.232.500	5MT
13-2	75221-73R10-000	SILENCER,DASH PANEL INNER	1	Rp1.232.500	4AT
14	75222-73R00-000	SILENCER,DASH SIDE PANEL,R	1	Rp206.500
15	75223-73R00-000	SILENCER,DASH SIDE PANEL,L	1	Rp206.500
16	75412-73R00-000	PAD,DASH LOWER,L	1	Rp76.500
17	75471-73R01-R3F	BOARD,LUGGAGE FLOOR,L (BLACK)	1	Rp338.000
18	75481-73R00-5PK	SUPPORT,LUGGAGE FLOOR BOARD (BLACK)	1	Rp356.500
19	99611-60A01-000	SHEET,SILENCER 800X1000X3 (800X1000X3)	0	Rp1.210.000	CUT AS REQUIRED
20-1	75121-73R11-PZD	CARPET,REAR FLOOR (BROWN)	1	Rp529.000
20-2	75121-73R11-R3F	CARPET,REAR FLOOR (BLACK)	1	Rp524.000
21	75411-73R00-000	PAD,DASH LOWER,R	1	Rp69.000
22	75461-73R01-R3F	BOARD,LUGGAGE FLOOR,R (BLACK)	1	Rp338.000
23	75531-73R00-000	PAD,MAIN FLOOR UPR RR,R	1	Rp169.500
24-1	75541-73R00-000	PAD,MAIN FLOOR UPR RR,L	1	Rp169.500	GA,GL
24-2	75541-72R10-000	PAD,MAIN FLOOR UPR RR,L	1	Rp254.000	GX,SS
25	09103-06283-000	BOLT (6X16)	6	Rp20.500
