All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 570A FRONT HOOD PANEL572A TIRE CARRIER580A FRONT FENDER PANEL (GA,GL)580B FRONT FENDER PANEL (GX,SS)590A FRONT BODY PANEL600A FLOOR PANEL (GA,GL)600B FLOOR PANEL (GX,SS)640A SIDE BODY PANEL660A ROOF PANEL (GA)660B ROOF PANEL (GL,GX,SS)717A FRONT BUMPER (GA,GL,GX)717B FRONT BUMPER (SS)718A REAR BUMPER721A INSTRUMENT PANEL UPPER722A INSTRUMENT PANEL LOWER730A VENTILATOR (GA,GL)730B VENTILATOR (GX,SS)732A HEATER UNIT735A HEATER BLOWER (GA)735B HEATER BLOWER (GL)735C HEATER BLOWER (GX,SS)736A HEATER DOOR (GA)736B HEATER DOOR (GL)736C HEATER DOOR (GX,SS)737A EVAPORATOR UNIT (GA,GL)737B EVAPORATOR UNIT (GX,SS)73AA HEATER CONTROL (GA)73AB HEATER CONTROL (GL,GX,SS)740A CONSOLE BOX (GA,GL)740B CONSOLE BOX (GX,SS)741A FLOOR CARPET745A INTERIOR TRIM750A COVER/CAP755A FUEL LID OPENER757A ROOF SIDE PAD760A ROOF LINING772A MOLDING780A EMBLEM790A WINDSHIELD800A FRONT DOOR PANEL801A REAR DOOR PANEL805A BACK DOOR PANEL (GA)805B BACK DOOR PANEL (GL,GX,SS)810A FRONT DOOR REGULATOR811A REAR DOOR REGULATOR820A FRONT DOOR LOCK (GA)820B FRONT DOOR LOCK (GL)820C FRONT DOOR LOCK (GX,SS)821A REAR DOOR LOCK (GA,GL)821B REAR DOOR LOCK (GX,SS)824A BACK DOOR LOCK835A MIRROR/SUNVISOR (GA)835B MIRROR/SUNVISOR (GL)835C MIRROR/SUNVISOR (GX,SS)841A FRONT SEAT BELT843A 2ND SEAT BELT844A 3RD SEAT BELT848A FRONT LH SEAT (GA)848B FRONT LH SEAT (GL,GX)848C FRONT LH SEAT (SS)849A FRONT RH SEAT (GA,GL)849B FRONT RH SEAT (GX)849C FRONT RH SEAT (SS)854A 2ND RH SEAT (GA)854B 2ND RH SEAT (GL,GX)854C 2ND RH SEAT (SS)855A 2ND LH SEAT (GA,GL,GX)855B 2ND LH SEAT (SS)857A 3RD RH SEAT858A 3RD LH SEAT865A FUEL TANK893A TOOL960A CONDENSER968A FRONT A/C PIPING (GA)968B FRONT A/C PIPING (GL,GX,SS)970A REAR A/C PIPING (GL,GX,SS)972A COOLING UNIT (GL,GX,SS)990A COMPRESSOR (GA,GL)990B COMPRESSOR (GX,SS)

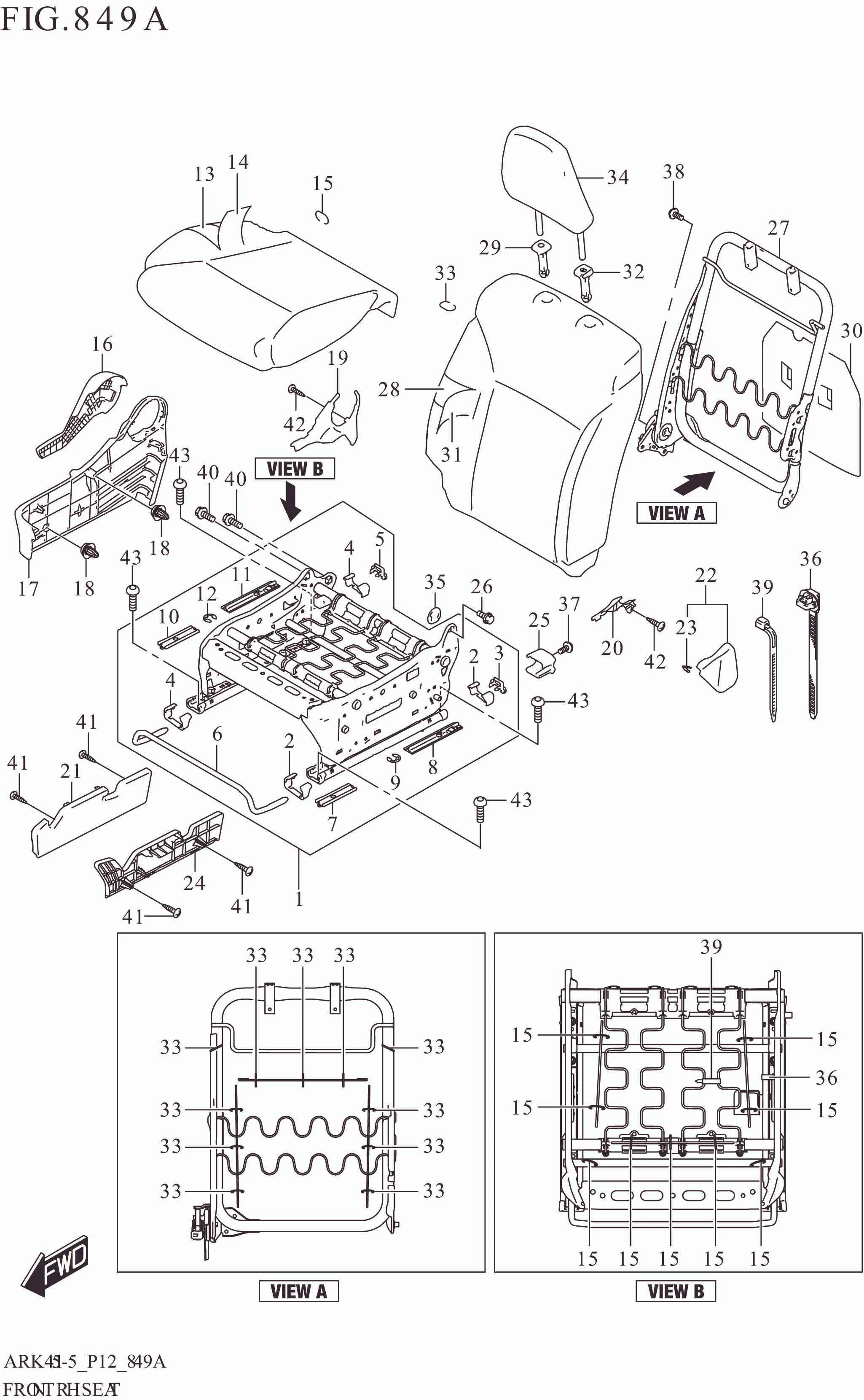

849A FRONT RH SEAT (GA,GL)

849A FRONT RH SEAT (GA,GL)
No No. Part Description Qty Price Per Pcs Remarks
1 85103-73R10-000 FRAME ASSY,FR CUSH,R 1 Rp1.953.500 GA,GL
2 86652M74P50-000 .CAP,FR ADJ LWR 2 Rp5.500 GA,GL
3 86653M74P50-000 .CAP,FR ADJ UPR 1 Rp5.500 GA,GL
4 86652M74P50-000 .CAP,FR ADJ LWR 2 Rp5.500 GA,GL
5 86653M74P50-000 .CAP,FR ADJ UPR 1 Rp5.500 GA,GL
6 86691-73R00-000 .HANDLE,FR SEAT ADJUSTER 1 Rp130.500 GA,GL
7 86656-74P50-000 .PROTECTOR,FR ADJ FR 1 Rp8.500 GA,GL
8 86657-68P00-000 .PROTECTOR,FR ADJUSTER REAR 1 Rp10.000 GA,GL
9 86658-68P00-000 .RING,FR ADJUSTER REAR 1 Rp6.500 GA,GL
10 86656-74P50-000 .PROTECTOR,FR ADJ FR 1 Rp8.500 GA,GL
11 86657-68P00-000 .PROTECTOR,FR ADJUSTER REAR 1 Rp10.000 GA,GL
12 86658-68P00-000 .RING,FR ADJUSTER REAR 1 Rp6.500 GA,GL
13 85160-73R10-000 PAD,FR CUSH 1 Rp338.500 GA,GL
14-1 85180-73R00-DWF TRIM,FR CUSH,R (BLACK) 1 Rp655.500 GA
14-2 85180-73R00-EMV TRIM,FR CUSH,R 1 Rp640.500 GL
15 09387-19001-000 RING (OD:22.6) 9 Rp9.000 GA,GL
16 85211-62R00-5PK KNOB,RCLNG,R (BLACK) 1 Rp83.500 GA,GL
17 85221-73R00-5PK COVER,RCLNG OUTSIDE,R (BLACK) 1 Rp50.000 GA,GL
18 09409-10313-000 CLIP 2 Rp14.000 GA,GL
19 85222-68P00-5PK COVER,FR RCLNG (BLACK) 1 Rp10.500 GA,GL
20 85222-73R00-5PK COVER,RCLNG INS LWR,R (BLACK) 1 Rp8.000 GA,GL
21 85223-73R00-000 COVER,FR RISER,R 1 Rp19.000 GA,GL
22 85241-68P10-5PK COVER,RCLNG INS,R (BLACK) 1 Rp11.500 GA,GL
23 85249M68P00-000 .CLIP 1 Rp9.500 GA,GL
24 85243-73R00-000 COVER,FR RISER,L 1 Rp20.500 GA,GL
25 85280-81P00-000 COVER,FR HARNESS BRACKET 1 Rp6.500 GA,GL
26 85295-58J01-000 BOLT,FR BACK FIX 1 Rp34.000 GA,GL
27 85303-73R00-000 FRAME ASSY,FR BACK,R 1 Rp1.012.000 GA,GL
28 85360-73R00-000 PAD,FR BACK,R 1 Rp346.000 GA,GL
29 85341-73R00-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp53.000 GA,GL
30 85369-74L00-000 SILENCER,FR BACK 1 Rp40.000 GA,GL
31-1 85380-73R00-DWF TRIM,FR BACK,R (BLACK) 1 Rp2.327.000 GA
31-2 85380-73R00-EMV TRIM,FR BACK,R 1 Rp2.327.000 GL
32 85840-73R00-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp53.000 GA,GL
33 09387-19001-000 RING (OD:22.6) 9 Rp9.000 GA,GL
34-1 86401-73R00-QP8 HEADRESTRAINT ASSY (BLACK) 1 Rp752.000 GA
34-2 86401-73R00-EMW HEADRESTRAINT ASSY 1 Rp747.000 GL
35 87286-81P00-000 BUSH,FR BACK FIX 1 Rp37.000 GA,GL
36 96619-59L00-000 CLAMP 1 Rp24.500 GA,GL
37 09132-04037-000 SCREW (4X10) 1 Rp15.000 GA,GL
38 09132-04037-000 SCREW (4X10) 1 Rp15.000 GA,GL
39 36990-25G00-000
SUB: 09407-14403-000		 CLAMP (L:125) 1 Rp13.000 GA,GL
40 01550-1016A-000 BOLT (10X16) 2 Rp5.500 GA,GL
41 03541-0410A-000 SCREW 4 Rp11.000 GA,GL
42 03541-0410A-000 SCREW 2 Rp11.000 GA,GL
43 09119-08107-000 BOLT (8X25) 4 Rp5.500 GA,GL

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
