All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 570A FRONT HOOD PANEL572A TIRE CARRIER580A FRONT FENDER PANEL (GA,GL)580B FRONT FENDER PANEL (GX,SS)590A FRONT BODY PANEL600A FLOOR PANEL (GA,GL)600B FLOOR PANEL (GX,SS)640A SIDE BODY PANEL660A ROOF PANEL (GA)660B ROOF PANEL (GL,GX,SS)717A FRONT BUMPER (GA,GL,GX)717B FRONT BUMPER (SS)718A REAR BUMPER721A INSTRUMENT PANEL UPPER722A INSTRUMENT PANEL LOWER730A VENTILATOR (GA,GL)730B VENTILATOR (GX,SS)732A HEATER UNIT735A HEATER BLOWER (GA)735B HEATER BLOWER (GL)735C HEATER BLOWER (GX,SS)736A HEATER DOOR (GA)736B HEATER DOOR (GL)736C HEATER DOOR (GX,SS)737A EVAPORATOR UNIT (GA,GL)737B EVAPORATOR UNIT (GX,SS)73AA HEATER CONTROL (GA)73AB HEATER CONTROL (GL,GX,SS)740A CONSOLE BOX (GA,GL)740B CONSOLE BOX (GX,SS)741A FLOOR CARPET745A INTERIOR TRIM750A COVER/CAP755A FUEL LID OPENER757A ROOF SIDE PAD760A ROOF LINING772A MOLDING780A EMBLEM790A WINDSHIELD800A FRONT DOOR PANEL801A REAR DOOR PANEL805A BACK DOOR PANEL (GA)805B BACK DOOR PANEL (GL,GX,SS)810A FRONT DOOR REGULATOR811A REAR DOOR REGULATOR820A FRONT DOOR LOCK (GA)820B FRONT DOOR LOCK (GL)820C FRONT DOOR LOCK (GX,SS)821A REAR DOOR LOCK (GA,GL)821B REAR DOOR LOCK (GX,SS)824A BACK DOOR LOCK835A MIRROR/SUNVISOR (GA)835B MIRROR/SUNVISOR (GL)835C MIRROR/SUNVISOR (GX,SS)841A FRONT SEAT BELT843A 2ND SEAT BELT844A 3RD SEAT BELT848A FRONT LH SEAT (GA)848B FRONT LH SEAT (GL,GX)848C FRONT LH SEAT (SS)849A FRONT RH SEAT (GA,GL)849B FRONT RH SEAT (GX)849C FRONT RH SEAT (SS)854A 2ND RH SEAT (GA)854B 2ND RH SEAT (GL,GX)854C 2ND RH SEAT (SS)855A 2ND LH SEAT (GA,GL,GX)855B 2ND LH SEAT (SS)857A 3RD RH SEAT858A 3RD LH SEAT865A FUEL TANK893A TOOL960A CONDENSER968A FRONT A/C PIPING (GA)968B FRONT A/C PIPING (GL,GX,SS)970A REAR A/C PIPING (GL,GX,SS)972A COOLING UNIT (GL,GX,SS)990A COMPRESSOR (GA,GL)990B COMPRESSOR (GX,SS)

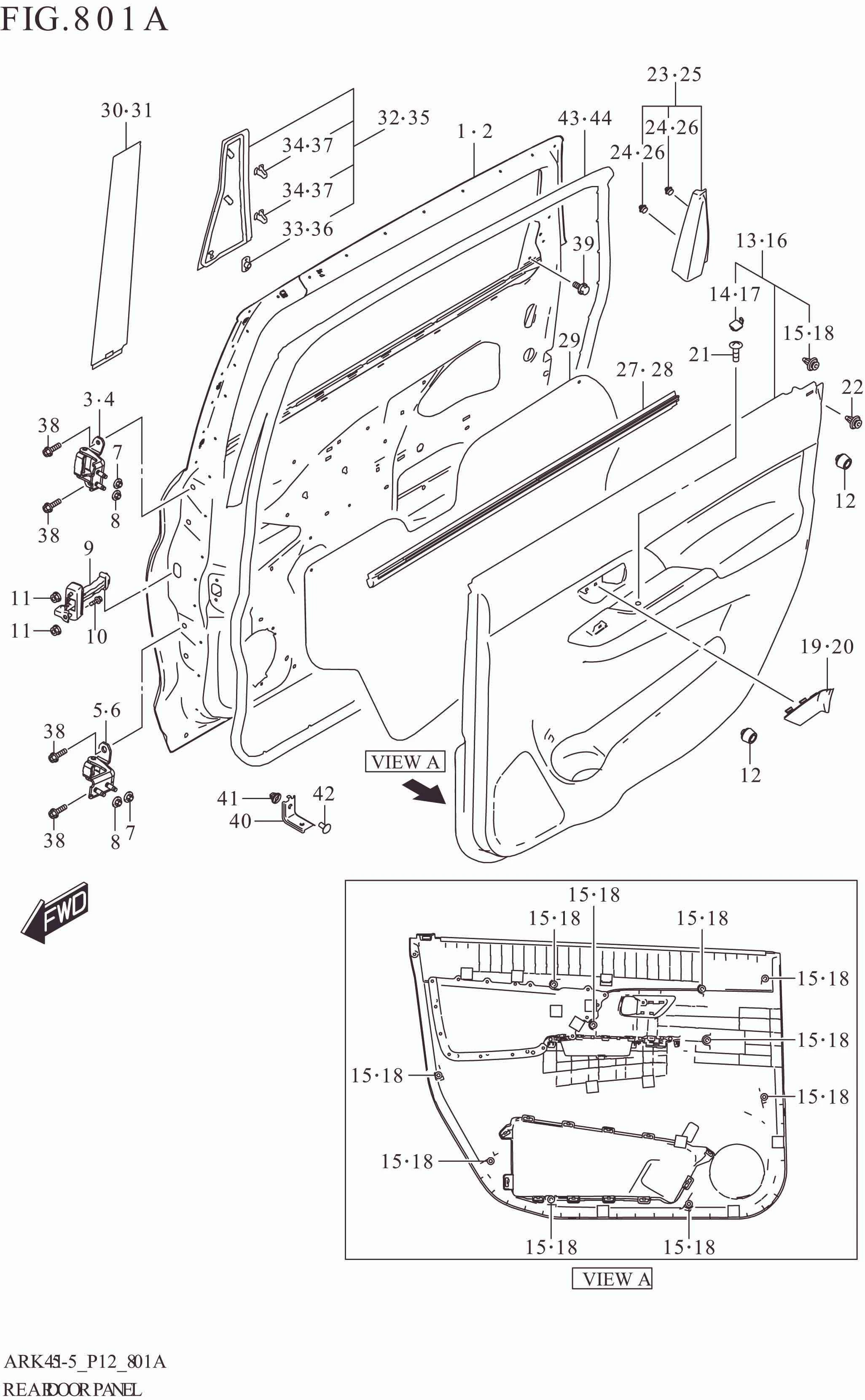

801A REAR DOOR PANEL

801A REAR DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 68003-73R02-000 PANEL ASSY,REAR DOOR,R 1 Rp3.283.000
2 68004-73R02-000 PANEL ASSY,REAR DOOR,L 1 Rp3.283.000
3 69410-68L00-000 HINGE,RR DR UPR,R 1 Rp75.500
4 69420-68L00-000 HINGE,RR DR UPR,L 1 Rp77.000
5 69430M72R00-000 HINGE,RR DR LOWER,R 1 Rp83.000
6 69440M72R00-000 HINGE,RR DR LOWER,L 1 Rp83.000
7 09159M08151-000 NUT (M8) 4 Rp11.500
8 08361-2508A-000 NUT 4 Rp16.500
9 DISCONTINUE
SUB: 81830-73RA2-000		 STOP,REAR DOOR OPEN 2 -
10 09112-08015-000 BOLT (8X25) 2 Rp32.000
11 08316-1006A-000 NUT (6X12) 4 Rp2.000
12 82711-51K00-000 STOPPER,DR 4 Rp39.000
13-2 83730-73R10-DWR TRIM,RR DR,R (BLACK) 1 Rp1.185.500 GX,SS
13-1 83730-73R00-5PK TRIM,RR DR,R (BLACK) 1 Rp955.000 GA,GL
14 83752-80J00-5PK .CAP,SIDE DR INS CASE (BLACK) 1 Rp74.000
15 09409-10327-000 .CLIP 10 Rp5.000
16-1 83740-73R00-5PK TRIM,RR DR,L (BLACK) 1 Rp955.000 GA,GL
16-2 83740-73R10-DWR TRIM,RR DR,L (BLACK) 1 Rp1.185.500 GX,SS
17 83752-80J00-5PK .CAP,SIDE DR INS CASE (BLACK) 1 Rp74.000
18 09409-10327-000 .CLIP 10 Rp5.000
19 83755-74L00-5PK CAP,INSIDE HDL BEZEL,R (BLACK) 1 Rp24.000
20 83756-74L00-5PK CAP,INSIDE HDL BEZEL,L (BLACK) 1 Rp24.000
21 09132-05058-000 SCREW (5X12) 2 Rp14.000
22 09409-06314-5PK CLIP (5.9X20.5,BLACK) 2 Rp3.500
23 83780-73R00-5PK GARNISH,RR DR INNER,R (BLACK) 1 Rp112.000
24 09409-06339-000 .CLIP,RR DR INNER GARNISH 2 Rp18.000
25 83790-73R00-5PK GARNISH,RR DR INNER,L (BLACK) 1 Rp112.000
26 09409-06339-000 .CLIP,RR DR INNER GARNISH 2 Rp18.000
27 83871-73R00-000 WEATHERSTRIP,RR DR INNER,R 1 Rp69.000
28 83881-73R00-000 WEATHERSTRIP,RR DR INNER,L 1 Rp69.000
29 83913-73R00-000 COVER,RR DR SEALING 2 Rp10.000
30-1 83931-73R00-0CB TAPE,RR DR OUTER FR,R (BLACK) 1 Rp33.500 GL,GX,SS BODY COLOR:ZQZ,Z2S,ZYZ,ZLL,WAE,WBD
30-2 83931-73R00-0CB TAPE,RR DR OUTER FR,R (BLACK) 1 Rp33.500 GL,GX,SS BODY COLOR:ZRY,WAP,WAT,WAS,WAY
31-1 83932-73R00-0CB TAPE,RR DR OUTER FR,L (BLACK) 1 Rp33.500 GL,GX,SS BODY COLOR:ZQZ,Z2S,ZYZ,ZLL,WAE,WBD
31-2 83932-73R00-0CB TAPE,RR DR OUTER FR,L (BLACK) 1 Rp33.500 GL,GX,SS BODY COLOR:ZRY,WAP,WAT,WAS,WAY
32 83970-73R00-000 GARNISH,RR DR RR OUTER,R 1 Rp93.500
33 09146M06003-000 .NUT 1 Rp7.500
34 09409-06324-000 .CLIP 2 Rp13.500
35 83980-73R00-000 GARNISH,RR DR RR OUTER,L 1 Rp93.500
36 09146M06003-000 .NUT 1 Rp7.500
37 09409-06324-000 .CLIP 2 Rp13.500
38 09103-08546-000 BOLT (8X24) 8 Rp26.500
39 02162-0612A-000 SCREW (6X12) 2 Rp11.000
40 83751-67P00-000 BRACKET,DR TRIM 2 Rp11.500
41 71851M70F00-000 NUT (M6) 2 Rp4.000
42 03141M0612A-000 SCREW 2 Rp4.500
43 84661-73R00-000 WEATHERSTRIP,RR DR OPNG,R 1 Rp191.000
44 84671-73R00-000 WEATHERSTRIP,RR DR OPNG,L 1 Rp191.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
