All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL 570A FRONT HOOD PANEL 572A TIRE CARRIER 580A FRONT FENDER PANEL (GA,GL)580B FRONT FENDER PANEL (GX,SS)590A FRONT BODY PANEL 600A FLOOR PANEL (GA,GL)600B FLOOR PANEL (GX,SS)640A SIDE BODY PANEL 660A ROOF PANEL (GA)660B ROOF PANEL (GL,GX,SS)717A FRONT BUMPER (GA,GL,GX)717B FRONT BUMPER (SS)718A REAR BUMPER 721A INSTRUMENT PANEL UPPER 722A INSTRUMENT PANEL LOWER 730A VENTILATOR (GA,GL)730B VENTILATOR (GX,SS)732A HEATER UNIT 735A HEATER BLOWER (GA)735B HEATER BLOWER (GL)735C HEATER BLOWER (GX,SS)736A HEATER DOOR (GA)736B HEATER DOOR (GL)736C HEATER DOOR (GX,SS)737A EVAPORATOR UNIT (GA,GL)737B EVAPORATOR UNIT (GX,SS)73AA HEATER CONTROL (GA)73AB HEATER CONTROL (GL,GX,SS)740A CONSOLE BOX (GA,GL)740B CONSOLE BOX (GX,SS)741A FLOOR CARPET 745A INTERIOR TRIM 750A COVER/CAP 755A FUEL LID OPENER 757A ROOF SIDE PAD 760A ROOF LINING 772A MOLDING 780A EMBLEM 790A WINDSHIELD 800A FRONT DOOR PANEL 801A REAR DOOR PANEL 805A BACK DOOR PANEL (GA)805B BACK DOOR PANEL (GL,GX,SS)810A FRONT DOOR REGULATOR 811A REAR DOOR REGULATOR 820A FRONT DOOR LOCK (GA)820B FRONT DOOR LOCK (GL)820C FRONT DOOR LOCK (GX,SS)821A REAR DOOR LOCK (GA,GL)821B REAR DOOR LOCK (GX,SS)824A BACK DOOR LOCK 835A MIRROR/SUNVISOR (GA)835B MIRROR/SUNVISOR (GL)835C MIRROR/SUNVISOR (GX,SS)841A FRONT SEAT BELT 843A 2ND SEAT BELT 844A 3RD SEAT BELT 848A FRONT LH SEAT (GA)848B FRONT LH SEAT (GL,GX)848C FRONT LH SEAT (SS)849A FRONT RH SEAT (GA,GL)849B FRONT RH SEAT (GX)849C FRONT RH SEAT (SS)854A 2ND RH SEAT (GA)854B 2ND RH SEAT (GL,GX)854C 2ND RH SEAT (SS)855A 2ND LH SEAT (GA,GL,GX)855B 2ND LH SEAT (SS)857A 3RD RH SEAT 858A 3RD LH SEAT 865A FUEL TANK 893A TOOL 960A CONDENSER 968A FRONT A/C PIPING (GA)968B FRONT A/C PIPING (GL,GX,SS)970A REAR A/C PIPING (GL,GX,SS)972A COOLING UNIT (GL,GX,SS)990A COMPRESSOR (GA,GL)990B COMPRESSOR (GX,SS)

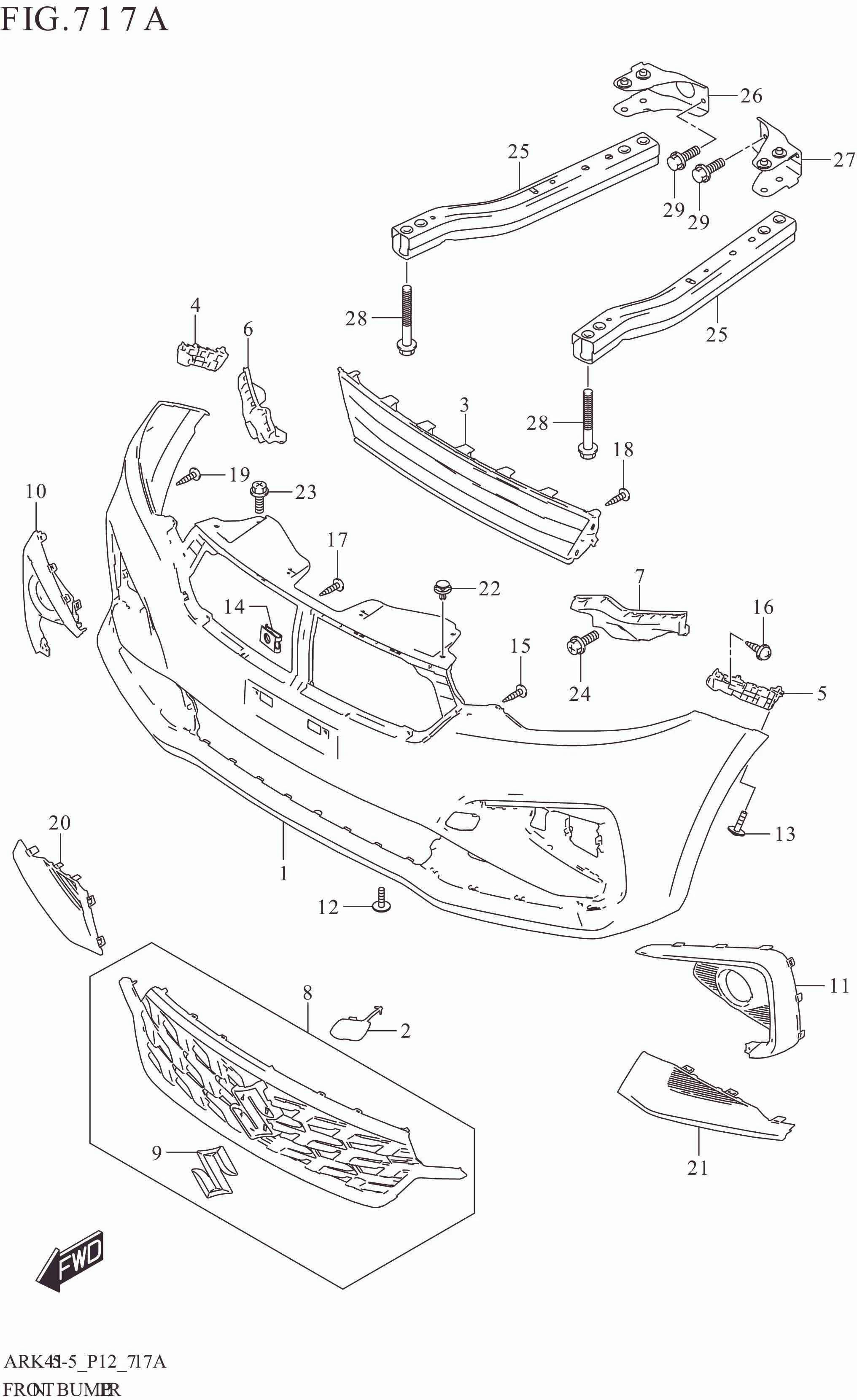

717A FRONT BUMPER (GA,GL,GX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71711-73R00-799	BUMPER,FRONT (PRIMARY)	1	Rp1.080.500
2	71712-73R00-000	CAP,FRONT BUMPER	1	Rp65.500
3	71721-73R00-5PK	GRILLE,RADIATOR LOWER (BLACK)	1	Rp93.500
4	71731-73R00-000	HOLDER,FR BUMPER SIDE,R	1	Rp17.500
5	71732-73R00-000	HOLDER,FR BUMPER SIDE,L	1	Rp17.500
6	71733-73R00-000	HOLDER,FR BUMPER FRONT,R	1	Rp32.500
7	71734-73R00-000	HOLDER,FR BUMPER FRONT,L	1	Rp32.500
8-1	71740-50U00-CUG	GRILLE,RADIATOR UPPER (BLACK/CHROME)	1	Rp472.000	GA
8-2	71740-50U10-CUG	GRILLE,RADIATOR UPPER (BLACK/CHROME)	1	Rp995.000	GL,GX
9	77811-65J00-0PG	.EMBLEM,MARK S (CHROME)	1	Rp131.500
10-1	71751-73R00-5PK	BEZEL,FRONT FOG LAMP,R (BLACK)	1	Rp30.500	GA
10-2	71751-73R10-5PK	BEZEL,FRONT FOG LAMP,R (BLACK)	1	Rp30.500	GL,GX
11-1	71761-73R00-5PK	BEZEL,FRONT FOG LAMP,L (BLACK)	1	Rp30.500	GA
11-2	71761-73R10-5PK	BEZEL,FRONT FOG LAMP,L (BLACK)	1	Rp30.500	GL,GX
12	09136-05075-000	SCREW (5X16)	4	Rp35.500
13	09136-05068-000	SCREW (5X20)	2	Rp15.000
14	09148-06021-000	NUT (M6)	2	Rp27.500
15	03541-0412A-000	SCREW (4X12)	2	Rp3.500
16	03541-0512A-000	SCREW	4	Rp3.500
17	03541-0516A-000	SCREW	8	Rp3.500
18	03541-0516A-000	SCREW	2	Rp3.500
19	03541-0516A-000	SCREW	4	Rp3.500
20	71752-73R00-5PK	COVER,FRONT FOG LAMP BEZEL,R (BLACK)	1	Rp42.000
21	71762-73R00-5PK	COVER,FRONT FOG LAMP BEZEL,L (BLACK)	1	Rp42.000
22	09409-08010-000	CLIP	2	Rp5.500
23	02162-0616A-000	SCREW (6X16)	4	Rp3.000
24	02162-0616A-000	SCREW (6X16)	4	Rp3.000
25	71120-73R00-000	MEMBER,APRON LOWER	2	Rp275.500
26	71141-73R00-000	BRACKET,APRON LOWER MEMBER,R	1	Rp150.500
27	71151-73R00-000	BRACKET,APRON LOWER MEMBER,L	1	Rp150.500
28	01550-0865B-000	BOLT	8	Rp8.500
29	01551-0816C-000	BOLT	4	Rp13.500
