All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 570A FRONT HOOD PANEL572A TIRE CARRIER580A FRONT FENDER PANEL (GA,GL)580B FRONT FENDER PANEL (GX,SS)590A FRONT BODY PANEL600A FLOOR PANEL (GA,GL)600B FLOOR PANEL (GX,SS)640A SIDE BODY PANEL660A ROOF PANEL (GA)660B ROOF PANEL (GL,GX,SS)717A FRONT BUMPER (GA,GL,GX)717B FRONT BUMPER (SS)718A REAR BUMPER721A INSTRUMENT PANEL UPPER722A INSTRUMENT PANEL LOWER730A VENTILATOR (GA,GL)730B VENTILATOR (GX,SS)732A HEATER UNIT735A HEATER BLOWER (GA)735B HEATER BLOWER (GL)735C HEATER BLOWER (GX,SS)736A HEATER DOOR (GA)736B HEATER DOOR (GL)736C HEATER DOOR (GX,SS)737A EVAPORATOR UNIT (GA,GL)737B EVAPORATOR UNIT (GX,SS)73AA HEATER CONTROL (GA)73AB HEATER CONTROL (GL,GX,SS)740A CONSOLE BOX (GA,GL)740B CONSOLE BOX (GX,SS)741A FLOOR CARPET745A INTERIOR TRIM750A COVER/CAP755A FUEL LID OPENER757A ROOF SIDE PAD760A ROOF LINING772A MOLDING780A EMBLEM790A WINDSHIELD800A FRONT DOOR PANEL801A REAR DOOR PANEL805A BACK DOOR PANEL (GA)805B BACK DOOR PANEL (GL,GX,SS)810A FRONT DOOR REGULATOR811A REAR DOOR REGULATOR820A FRONT DOOR LOCK (GA)820B FRONT DOOR LOCK (GL)820C FRONT DOOR LOCK (GX,SS)821A REAR DOOR LOCK (GA,GL)821B REAR DOOR LOCK (GX,SS)824A BACK DOOR LOCK835A MIRROR/SUNVISOR (GA)835B MIRROR/SUNVISOR (GL)835C MIRROR/SUNVISOR (GX,SS)841A FRONT SEAT BELT843A 2ND SEAT BELT844A 3RD SEAT BELT848A FRONT LH SEAT (GA)848B FRONT LH SEAT (GL,GX)848C FRONT LH SEAT (SS)849A FRONT RH SEAT (GA,GL)849B FRONT RH SEAT (GX)849C FRONT RH SEAT (SS)854A 2ND RH SEAT (GA)854B 2ND RH SEAT (GL,GX)854C 2ND RH SEAT (SS)855A 2ND LH SEAT (GA,GL,GX)855B 2ND LH SEAT (SS)857A 3RD RH SEAT858A 3RD LH SEAT865A FUEL TANK893A TOOL960A CONDENSER968A FRONT A/C PIPING (GA)968B FRONT A/C PIPING (GL,GX,SS)970A REAR A/C PIPING (GL,GX,SS)972A COOLING UNIT (GL,GX,SS)990A COMPRESSOR (GA,GL)990B COMPRESSOR (GX,SS)

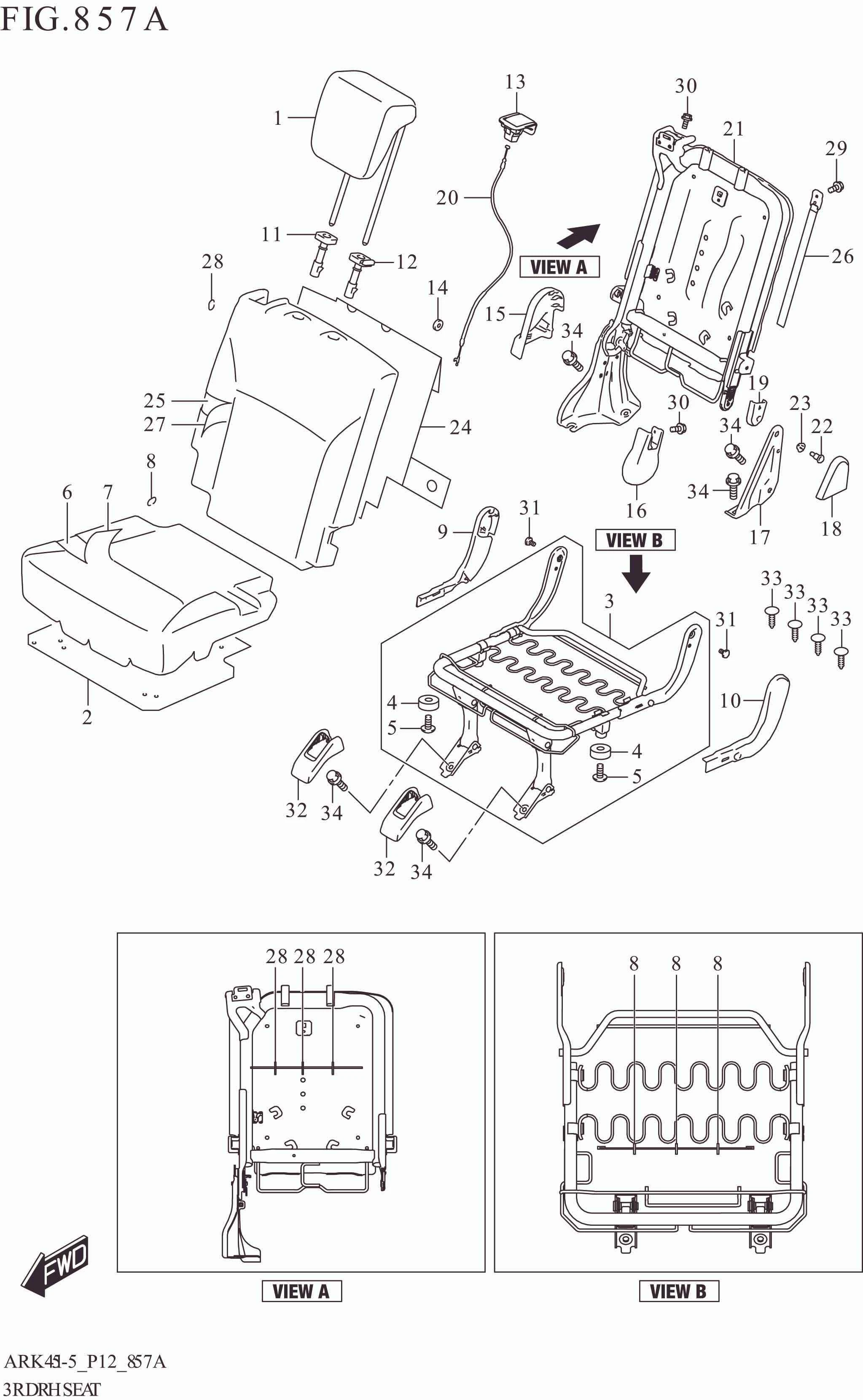

857A 3RD RH SEAT

857A 3RD RH SEAT
No No. Part Description Qty Price Per Pcs Remarks
1-2 86401-73RA0-EMW HEADRESTRAINT ASSY,3RD 1 Rp778.500 GL,GX
1-1 86401-73RA0-QP8 HEADRESTRAINT ASSY,3RD (BLACK) 1 Rp778.500 GA
1-3 86401-73RA0-DWH HEADRESTRAINT ASSY,3RD (BLACK) 1 Rp755.500 SS
2 87163-78F00-000 SUPPORT,RR CUSH 1 Rp7.000
3 88103-73RA1-000 FRAME ASSY,3RD CUSH,R 1 Rp569.000
4 87193-82K00-000 .CUSHION,RR LEG STOPPER 2 Rp12.500
5 03241-0512A-000 .SCREW 2 Rp3.500
6 88160-73RA0-000 PAD,3RD CUSH,R 1 Rp248.000
7-1 88180-73RA0-DWF TRIM,3RD CUSH,R (BLACK) 1 Rp551.500 GA
7-2 88180-73RA0-EMV TRIM,3RD CUSH,R 1 Rp556.500 GL,GX
7-3 88180-73RA0-DWG TRIM,3RD CUSH,R (BLACK) 1 Rp551.500 SS
8 09387-19001-000 RING (OD:22.6) 3 Rp9.000
9 88171-73RA0-5PK COVER,3RD STAY,R (BLACK) 1 Rp15.000
10 88172-73RA0-5PK COVER,3RD STAY,L (BLACK) 1 Rp16.000
11 85341-58RA1-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp10.000
12 85840-73R10-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp11.000
13 87290-70K00-5PK KNOB,RCLNG RELEASE (BLACK) 1 Rp97.000
14 87371-73R00-000 WASHER,CABLE END 1 Rp5.500
15 88221-73RA0-5PK COVER,3RD RCLNG LOWER,R (BLACK) 1 Rp9.000
16 88222-73RA1-5PK COVER,3RD RCLNG UPR,R (BLACK) 1 Rp11.500
17 88231-73RB0-000 BRACKET,3RD BACK HINGE,R 1 Rp170.500
18 88241-73RA0-5PK COVER,3RD HINGE LOWER,R (BLACK) 1 Rp8.500
19 88242-73RA0-5PK COVER,3RD HINGE UPPER,R (BLACK) 1 Rp6.500
20 88294-73RA1-000 CABLE,3RD RCLNG RELEASE 1 Rp46.500
21 88310-73RA1-000 FRAME,3RD BACK,R 1 Rp2.081.500
22 88321-73RA0-000 BOLT,3RD BACK HINGE 1 Rp9.000
23 88322-73RA0-000 BUSH,3RD BACK HINGE 1 Rp6.500
24 88334-73RA0-000 SILENCER,3RD BACK,R 1 Rp37.000
25 88360-73RA0-000 PAD,3RD BACK,R 1 Rp224.500
26 88370-73RA0-5PK BAND ASSY,3RD BACK (BLACK) 1 Rp7.500
27-1 88380-73RA0-DWF TRIM,3RD BACK,R (BLACK) 1 Rp592.500 GA
27-3 88380-73RA0-DWG TRIM,3RD BACK,R (BLACK) 1 Rp574.500 SS
27-2 88380-73RA0-EMV TRIM,3RD BACK,R 1 Rp592.500 GL,GX
28 09387-19001-000 RING (OD:22.6) 3 Rp9.000
29 02142-0510A-000 SCREW 1 Rp4.000
30 03241-0510A-000 SCREW 2 Rp8.000
31 88323-73RA0-000 BOLT,3RD STAY FIX 2 Rp8.500
32 88491-73RA0-5PK COVER,3RD MTG (BLACK) 2 Rp8.500
33 09409-10302-5PK CLIP (BLACK) 4 Rp18.500
34 01551-1020A-000 BOLT 5 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
