AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

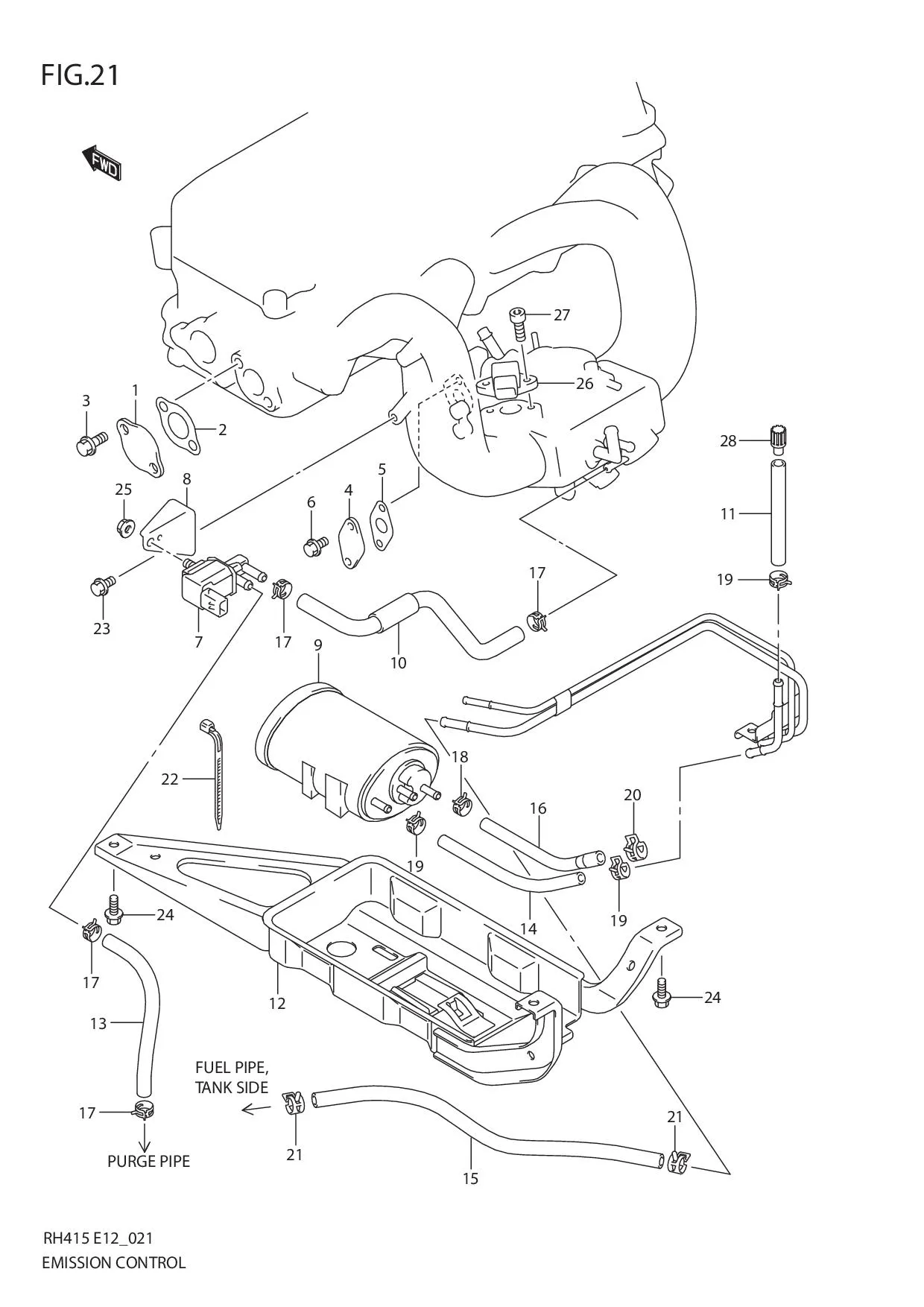

FIG.21 EMISSION CONTROL

FIG.21 EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 18491-80GA0-000		 PLATE, EGR VALVE 1 -
2 18529-69G00-000 GASKET 1 Rp23.500
3 01550-0816A-000
SUB: 01550M08163-000		 BOLT 2 Rp6.000
4 18492-77E00-000 PLATE, EGR PIPE 1 Rp33.000
5 18533-77E00-000 GASKET 1 Rp29.500
6 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
7 DISCONTINUE
SUB: 18117-52G00-000		 VALVE ASSY, DUTY FOR PURGE 1 -
8 DISCONTINUE
SUB: 18417-80G00-000		 BRACKET 1 -
9 18560-76A31-000 CANISTER 1 Rp1.041.500
10 DISCONTINUE
SUB: 18564-80G01-000		 HOSE, CANISTER PURGE 1 -
11 09355-70125-600 HOSE, CANISTER AIR 1 Rp76.500 L:600!70
12 DISCONTINUE
SUB: 18570-54G10-000		 BRACKET, CANISTER 1 -
13 09355-54115-600 HOSE, CANISTER PURGE 1 Rp106.500 L:600!210
14 09355-70125-600 HOSE, CANISTER AIR 1 Rp76.500 L:600!190
15 DISCONTINUE
SUB: 09355-75149-600		 HOSE, CANISTER PURGE 1 - L:600!380
16 09359-54121-610
SUB: 09359-54121-600		 HOSE, CSTR PURGE 1 Rp169.000 L:600!180
17 09401-10409-000
SUB: 09401B10409N000		 CLIP 4 Rp7.500
18 09401-10409-000
SUB: 09401M11415-000		 CLIP 1 Rp7.500
19 09401-10409-000
SUB: 09401M11415-000		 CLIP 3 Rp7.500
20 09401-12405-000
SUB: 09401-12404-000		 CLIP 1 Rp16.500
21 09401-13419-000
SUB: 09401-13416-000		 CLIP 2 Rp26.500
22 DISCONTINUE
SUB: 09407-12408-000		 CLAMP 3 -
23 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
24 01551-0816C-000
SUB: 01551-08163-000		 BOLT 3 Rp13.500
25 08316-1006A-000
SUB: 08316-10063L000		 NUT 1 Rp2.000
26 18590-68H00-000
SUB: 18590-72F21-000		 SENSOR, PRESSURE 1 Rp1.998.500
27 DISCONTINUE
SUB: 07130-0516A-000		 BOLT 2 -
28 DISCONTINUE
SUB: 18566-60G00-000		 FILTER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
