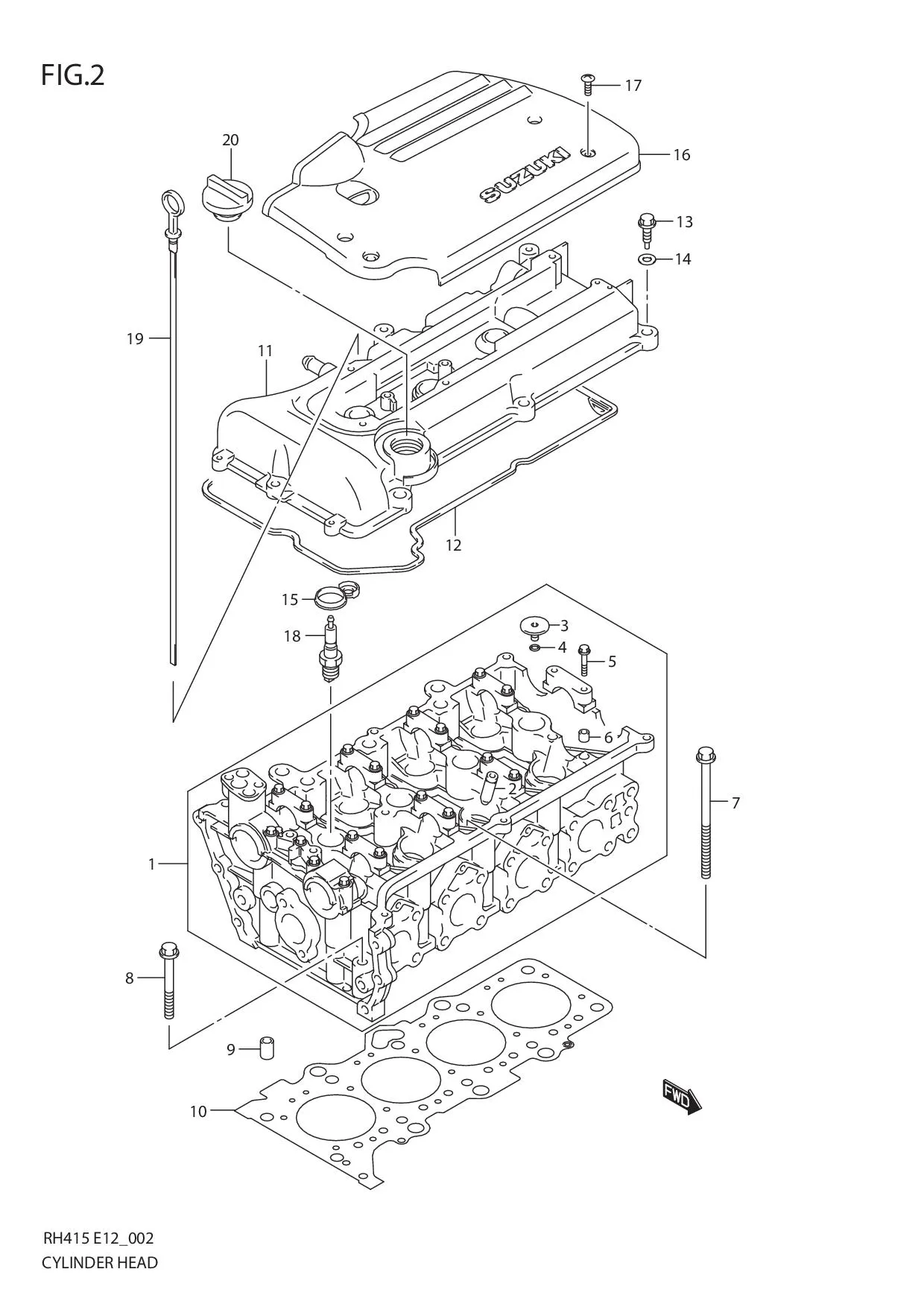

FIG.2 CYLINDER HEAD

FIG.2 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11100-54GE3-000
SUB: 11100-54GE0-000		 HEAD ASSY, CYLINDER 1 Rp15.985.500
2 11115-54G00-001 •GUIDE, VALVE 16 Rp181.000
3 09248-18005-000 •PLUG 3 Rp65.500
4 11216-77E00-000 •GASKET 3 Rp21.000
5 11128-69G01-000
SUB: 11128-69G00-000		 •BOLT 21 Rp24.000
6 09206-08001-000
SUB: 09206B08001N000		 •PIN (6.2X8X11) 18 Rp5.500
7 11117-69G00-000 BOLT 10 Rp55.500
8-1 01550-0875B-000
SUB: 01550-08753-000		 BOLT 1 Rp41.000
8-2 01550-0880A-000
SUB: 01550-08803-000		 BOLT 1 Rp5.500 2004-3%
9 04211M13189-000 PIN 2 Rp9.000
10 11141-69G03-000
SUB: 11141-69G02-000		 GASKET, CYLINDER HEAD 1 Rp706.500
11 11170-69GE3-000
SUB: 11170-69GE1-000		 COVER, CYLINDER HEAD 1 Rp3.763.000
12 11189-54GE0-000
SUB: 11189-69GE0-000		 GASKET, CYLINDER HEAD COVER 1 Rp195.500
13 11178-69G01-000
SUB: 11178-69G00-000		 BOLT 7 Rp18.500
14 11180-69G00-000 WASHER 7 Rp32.500
15 11179-69G01-000
SUB: 11179-69G00-000		 GASKET, SPARK PLUG HOLE 4 Rp93.000
16 DISCONTINUE
SUB: 13170-54G00-000		 COVER, ENGINE 1 -
17 13174-54G00-000 BOLT 4 Rp28.500
18-1 09482-00494-000 SPARK PLUG (NGK,BKR6E-11) 4 -
18-2 09482-00508-000
SUB: 09482B00508N000		 SPARK PLUG (DENSO,K20PR-U11) 4 Rp26.500
19 16910-69G01-000 GAUGE, OIL LEVEL 1 Rp138.000
20-1 16920-83G02-000
SUB: 16920-83G00-000		 CAP, OIL FILLER 1 Rp149.500
20-2 16920-83G02-000
SUB: 16920-83G10-000		 CAP, OIL FILLER 1 Rp149.500 2004-3%

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
