AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

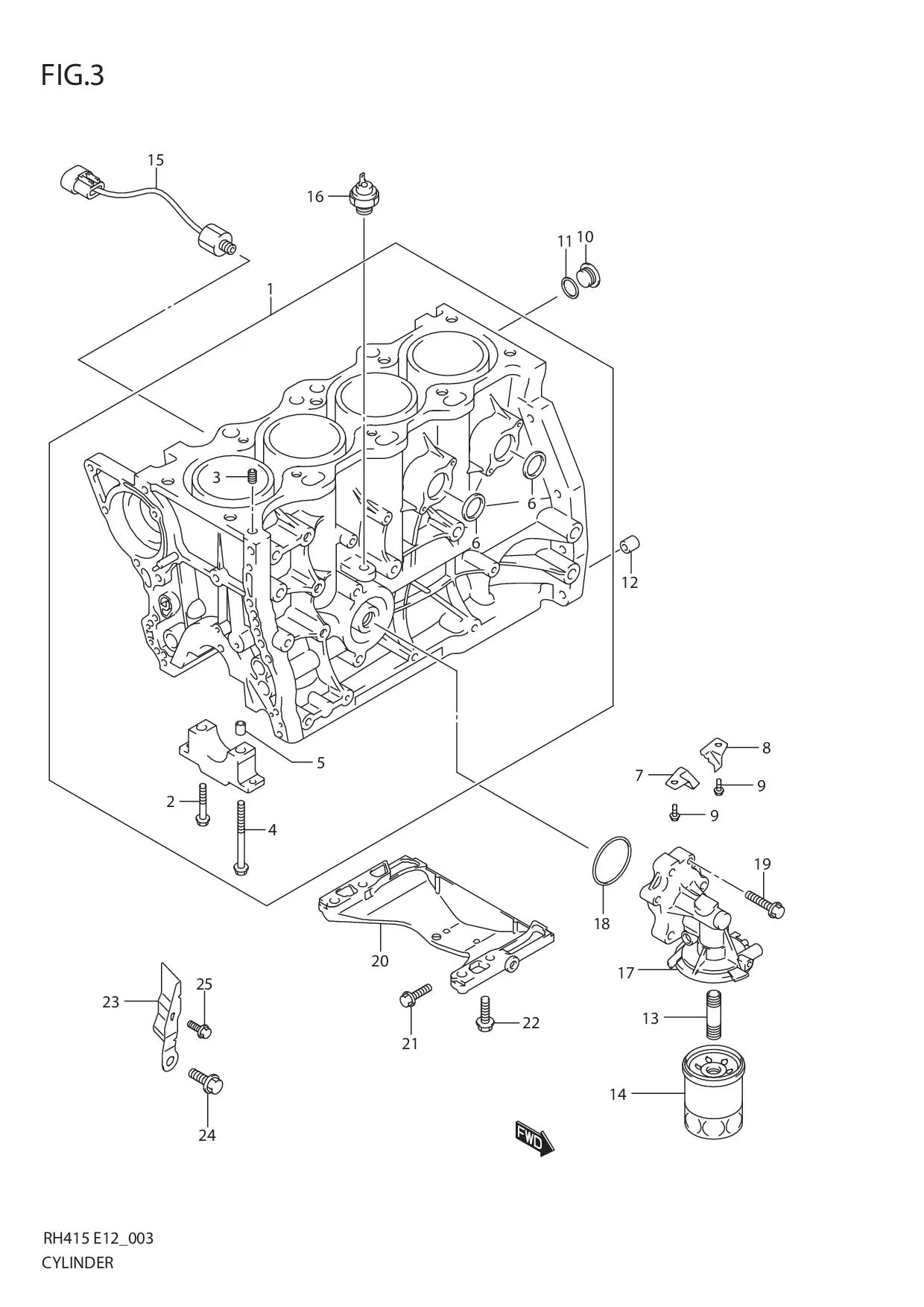

FIG.3 CYLINDER

FIG.3 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1-2 11200-54LB0-X12
SUB: 11200-54G03-000		 BLOCK ASSY, CYLINDER 1 Rp34.753.500 2003-2%
1-1 11200-54LB0-X12
SUB: 11200-54G00-000		 BLOCK ASSY, CYLINDER 1 Rp34.753.500 !11200-54G03 USED WITH 11550-54G00, 11550-54G10 AND 01550-08303 (4PCS)
2 01550-0840B-000
SUB: 01550-08403-000		 •BOLT 10 Rp5.500
3 11112-73010-000
SUB: 11112-73002-000		 •PLUG, OIL VENTURI 1 Rp24.000
4 11260-69G01-000
SUB: 11260-69G00-000		 •BOLT 10 Rp53.500
5 04211M13189-000 •PIN 5 Rp9.000
6 09241M30010-000
SUB: 09241-30009-000		 •PLUG 2 Rp5.500
7 DISCONTINUE
SUB: 11213-69G00-000		 PLATE, BREATHER FRONT 1 -
8 DISCONTINUE
SUB: 11214-69G00-000		 PLATE, BREATHER REAR 1 -
9 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
10 09248-18005-000 PLUG 1 Rp65.500
11 11216-77E00-000 GASKET 1 Rp21.000
12 09202-08004-000
SUB: 09202B08004N000		 PIN 2 Rp6.500
13 11241-86FA0-000 STAND, OIL FILTER 1 Rp88.000
14 16510-61A32-000
SUB: 16510-61A01-000		 FILTER ASSY, OIL 1 Rp164.000
15 18640-78G00-000 SENSOR ASSY, KNOCK 1 Rp1.298.000
16 37820-80GP0-000
SUB: 37820-80G00-000		 SWITCH ASSY, OIL PRESSURE 1 Rp144.000
17 16531-69G20-000
SUB: 16531-69G10-000		 CASE, OIL FILTER ADAPTER 1 Rp818.500
18 09280-62003-000 O RING 1 Rp43.500
19 01550-0830B-000
SUB: 01550-08303L000		 BOLT 3 Rp3.000
20 DISCONTINUE
SUB: 11331-54G01-000		 STIFFENER 1 -
21 DISCONTINUE
SUB: 09103-10333-000		 BOLT (10X35) 2 -
22 01550-1035B-000
SUB: 01550B10353N000		 BOLT 4 Rp5.000
23 DISCONTINUE
SUB: 37821-54G01-000		 BRACKET, PRESSURE SWITCH 1 -
24 01550-1020A-000
SUB: 01550-10203-000		 BOLT 1 Rp21.000
25 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
