AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

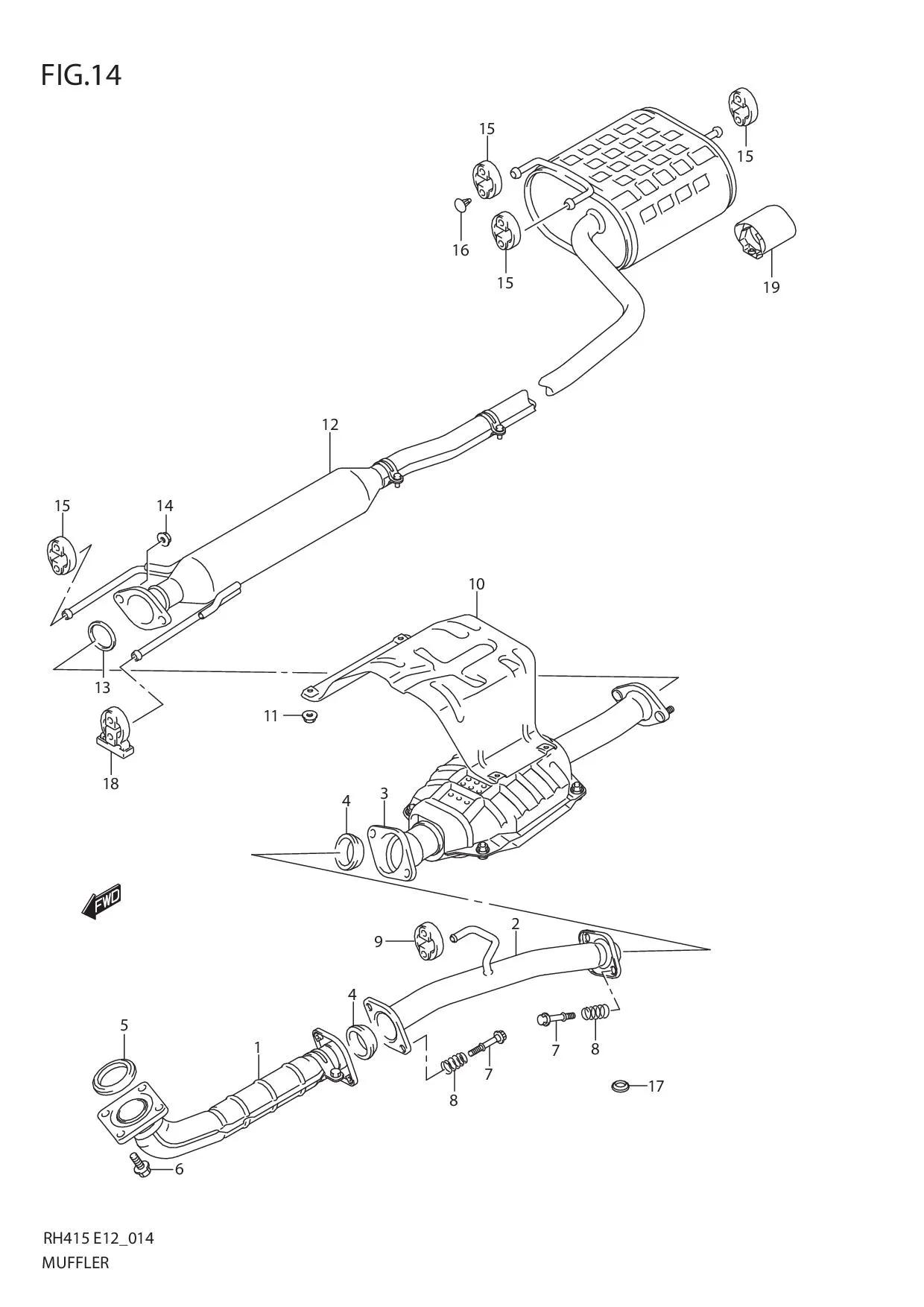

FIG.14 MUFFLER

FIG.14 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 14190B54G00N000		 PIPE, EXHAUST NO.1 1 -
2-1 DISCONTINUE
SUB: 14220-54G00-000		 PIPE, EXHAUST NO.2 1 -
2-2 DISCONTINUE
SUB: 14220-54G01-000		 PIPE, EXHAUST NO.2 1 - 2003-9%
3 DISCONTINUE
SUB: 14250-54G60-000		 CHAMBER, EXHAUST 1 -
4 14183-76A00-000 RING, SEAL 2 Rp126.500
5 14184-65D00-000 GASKET 1 Rp95.500
6 09103-10324-000 BOLT (10X20) 4 Rp30.000
7 09119-10073-000
SUB: 09119-10041-000		 BOLT (10X65) 4 Rp75.000
8 DISCONTINUE
SUB: 14492-65G00-000		 SPRING 4 -
9-1 14209M78020-000
SUB: 14281-60G01-000		 MOUNTING 1 Rp14.500
9-2 14281-80JA0-000
SUB: 14281-70H00-000		 MOUNTING 1 Rp67.500 2003-6%
10-2 DISCONTINUE
SUB: 14231-54G00-000		 INSULATOR 1 - TYPE 2
10-1 DISCONTINUE
SUB: 14231-60G01-000		 INSULATOR 1 - TYPE 1
11 DISCONTINUE
SUB: 51741-60B00-000		 NUT 4 -
12-1 DISCONTINUE
SUB: 14300B60GB0N000		 MUFFLER 1 - 4DR
12-2 DISCONTINUE
SUB: 14300B60GA0N000		 MUFFLER 1 - 5DR
13 14184-60G00-000 GASKET 1 Rp74.500
14 09159M10049-000 NUT 2 Rp10.500
15-1 14209M78020-000
SUB: 14281-60G01-000		 MOUNTING 4 Rp14.500
15-2 14281-80JA0-000
SUB: 14281-70H00-000		 MOUNTING 4 Rp67.500 2003-6%
16 DISCONTINUE
SUB: 09409-11302-5PK		 CLIP (BLACK) 1 -
17 DISCONTINUE
SUB: 09250-22004-000		 CAP 1 -
18 14281-80J00-000
SUB: 14281-54G00-000		 MOUNTING 1 Rp185.000
19 DISCONTINUE
SUB: 14630-54G20-000		 PIPE, TAIL 1 - 5DR:TYPE 2

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
